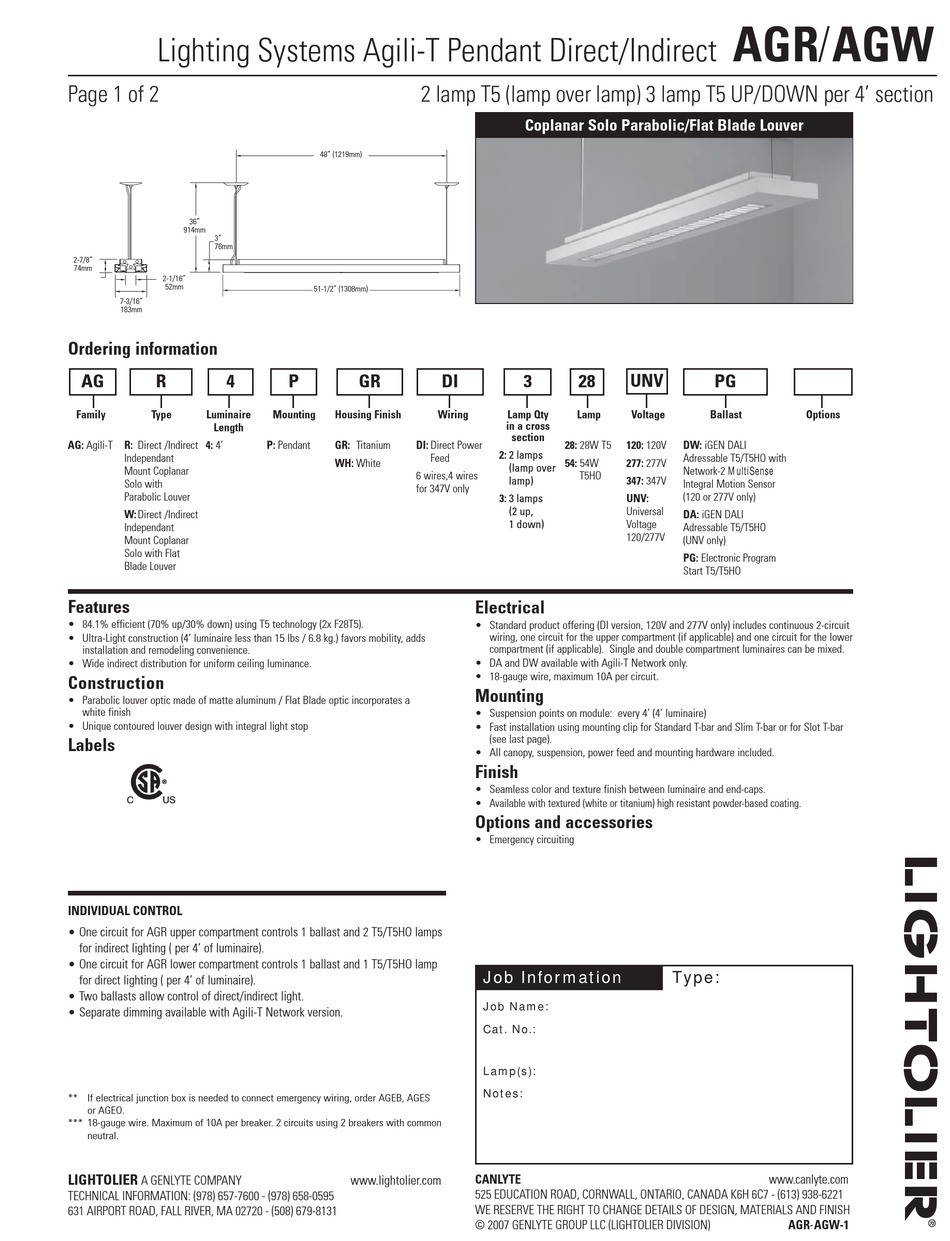

Lightolier AGR Specification

Lighting Systems Agili-T Pendant Direct/Indirect
Page 1 of 2
36"
36"
914mm
3"
3"
76mm
2-7/8"
2 7/8"
74mm
2-1/16"
2 1/16"
52mm
7 3/16" 7-3/16"
183mm
Ordering information
AG R 4
Family Type Luminaire
Length
AG: Agili-T R: Direct /Indirect 4: 4'
Independant
Mount Coplanar
Solo with
Parabolic Louver
W: Direct /Indirect
Independant
Mount Coplanar
Solo with Flat
Blade Louver
Features
• 84.1% efficient (70% up/30% down) using T5 technology (2x F28T5).
• Ultra-Light construction (4' luminaire less than 15 lbs / 6.8 kg.) favors mobility, adds
installation and remodeling convenience.
• Wide indirect distribution for uniform ceiling luminance.
Construction
• Parabolic louver optic made of matte aluminum / Flat Blade optic incorporates a
white finish
• Unique contoured louver design with integral light stop
Labels
INDIVIDUAL CONTROL
• One circuit for AGR upper compartment controls 1 ballast and 2 T5/T5HO lamps
for indirect lighting ( per 4' of luminaire).
• One circuit for AGR lower compartment controls 1 ballast and 1 T5/T5HO lamp
for direct lighting ( per 4' of luminaire).
• Two ballasts allow control of direct/indirect light.
• Separate dimming available with Agili-T Network version.
** If electrical junction box is needed to connect emergency wiring, order AGEB, AGES
or AGEO.
*** 18-gauge wire. Maximum of 10A per breaker. 2 circuits using 2 breakers with common
neutral.
LIGHTOLIER
A GENLYTE COMPANY
TECHNICAL INFORMATION: (978) 657-7600 - (978) 658-0595
631 AIRPORT ROAD, FALL RIVER, MA 02720 - (508) 679-8131
2 lamp T5 (lamp over lamp) 3 lamp T5 UP/DOWN per 4' section
48"
48" (1219mm)
54"
51-1/2" (1308mm)
P GR DI
Mounting Housing Finish Wiring
P: Pendant GR: Titanium DI: Direct Power
Feed
WH: White
6 wires,4 wires
for 347V only
www.lightolier.com
Coplanar Solo Parabolic/Flat Blade Louver
UNV
3 28
Lamp Qty Lamp Voltage
in a cross
section
28: 28W T5 120: 120V
2: 2 lamps
54: 54W 277: 277V
(lamp over
T5HO
lamp) 347: 347V
3: 3 lamps UNV:
(2 up, Universal
1 down) Voltage
120/277V
Electrical
• Standard product offering (DI version, 120V and 277V only) includes continuous 2-circuit
wiring, one circuit for the upper compartment (if applicable) and one circuit for the lower
compartment (if applicable). Single and double compartment luminaires can be mixed.
• DA and DW available with Agili-T Network only.
• 18-gauge wire, maximum 10A per circuit.
Mounting
• Suspension points on module: every 4' (4' luminaire)
• Fast installation using mounting clip for Standard T-bar and Slim T-bar or for Slot T-bar
(see last page).
• All canopy, suspension, power feed and mounting hardware included.
Finish
• Seamless color and texture finish between luminaire and end-caps.
• Available with textured (white or titanium) high resistant powder-based coating.

Options and accessories

• Emergency circuiting
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
CANLYTE
525 EDUCATION ROAD, CORNWALL, ONTARIO, CANADA K6H 6C7 - (613) 938-6221
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH
© 2007 GENLYTE GROUP LLC (LIGHTOLIER DIVISION)
AGR/AGW
PG
Ballast Options
DW: iGEN DALI
Adressable T5/T5HO with
Network-2 MultiSense
Integral Motion Sensor
(120 or 277V only)
DA: iGEN DALI
Adressable T5/T5HO
(UNV only)
PG: Electronic Program
Start T5/T5HO
Type:
www.canlyte.com
AGR-AGW-1
