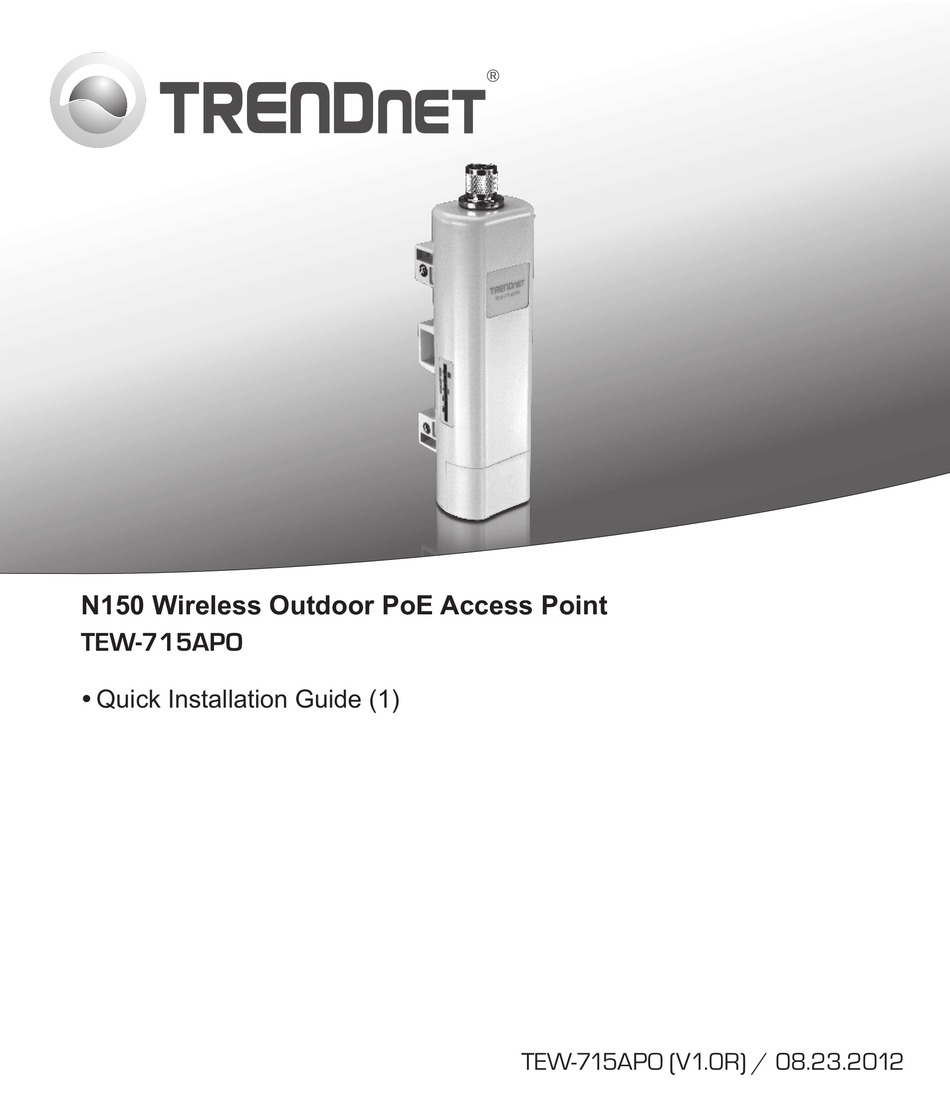

- Page 1 N150 Wireless Outdoor PoE Access Point TEW-715APO Quick Installation Guide (1) TEW-715APO (V1.0R) / 08.23.2012...
-
Page 2: Package Contents
2 x RJ-45 network cables Power cord Pole mounting clamp Grounding wire Note: The TEW-715APO does not support IEEE 802.3af. You must use the proprietary Power over Ethernet injector that is supplied with the TEW-715APO. 2. Hardware Configuration Note: 1. - Page 3 Phase 1: Configuration Note: 1. The initial configuration should be completed in a testing environment with the two TEW-715APO's approximately 15 ft. (5 meters) apart from one another. 2. Configure and connect the devices before mounting. TEW-715APO...
- Page 4 11. Click Wireless and then click Basic Settings. 3. Connect one end of a network cable into the TEW-715APO #1. Remove the bottom cover and connect a network cable to the PoE port. 4. Connect the opposite end of the network cable to the POE port on the Power over Ethernet Injector.
- Page 5 15. Click Wireless and then click WDS Settings. Settings. 23. Select Use Fixed IP Address. 24. Configure the TEW-715APO's IP address to 16. C lick Enabled for WDS Separation. a valid IP address within the subnet defined 17. Enter the MAC address of the by the Router.
- Page 6 Note: 1. Leave TEW-715APO #2 connected to your computer. 2. Connect TEW-715APO #1 to a LAN port of a router on your network. 3. To verify connectivity, run your computer's command prompt and ping TEW-715APO #1's assigned IP address from your computer.
-
Page 7: Hardware Installation
3. Hardware Installation Point-to-Point (WDS Bridge) Configuration TEW-715APO #1 TEW-715APO #2 Internet Modem Router Building 1 Building 2... -
Page 8: Connecting The Grounding Wire
1. Refer to the above diagram. 2. Mount the TEW-715APOs in your desired location. See Pole Mounting the TEW-715APO for mounting instructions. 3. Connect the TEW-715APOs to their respective network. 4. Confirm that the TEW-715APOs are facing each other. 5. Verify that the status LED indicators on both TEW-715APOs are fully functional: Power (Solid/Green), LAN (Blinking/Green) and Signal Indicator [Wireless] (Green, Yellow or Red). - Page 9 1. Turn the screw on the pole mounting clamp counter clockwise. 2. Insert the pole mounting clamp through the 4. Secure the TEW-715APO to pole by turning middle of the TEW-715APO. the screw clockwise. Wireless outdoor access point installation is now complete.
