Instruction Manual

Model name
Read the safety instructions and precautions carefully before
using the microwave oven.
Keep all documents relating to the microwave oven in a safe


   Summary of Contents for Hitachi MSE23

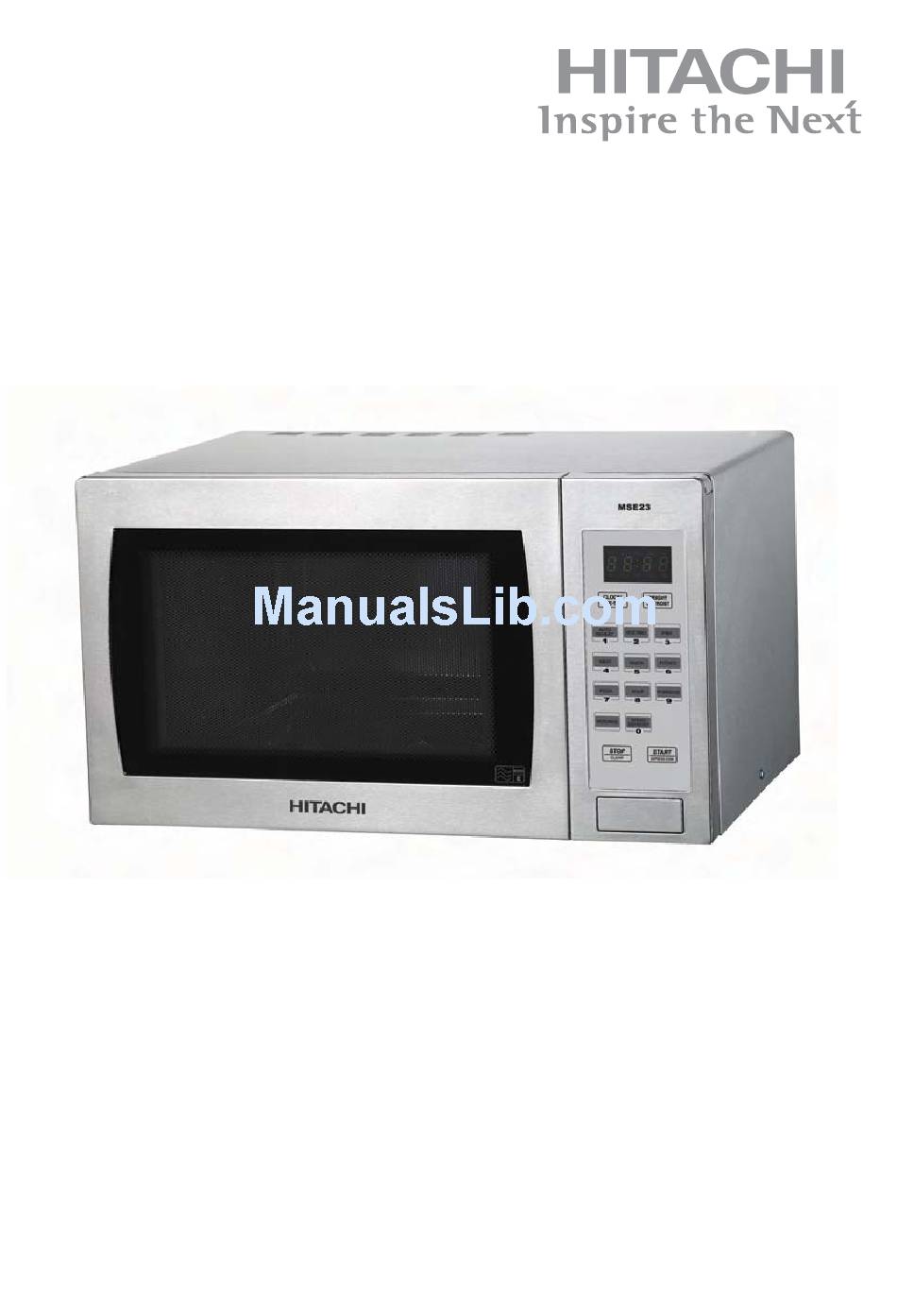

  • Page 1: Instruction Manual

    Instruction Manual Model name MSE23 IMPORTANT: Read the safety instructions and precautions carefully before using the microwave oven. Keep all documents relating to the microwave oven in a safe place.

  • Page 2: Table Of Contents

    Contents Safety Precautions................3 Electrical Connection..............4 Important Safety Instructions............5 Do’s And Don’ts................6 Cooking Utensils................7 Other helpful instructions..............8 Cleaning and Care................9 Setting up Your Oven..............10 Countertop Installation..............11 Installation..................11 Operation Instructions..............12 Questions and Answers..............1 Containers..................1 Technical Specifications..............

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read the following precautions to prevent microwave leakage PRECAUTIONS WHEN USING YOUR MICROWAVE OVEN Because the door on your microwave oven has been carefully designed to contain the microwave energy, the precautions below are important 1. Do not tamper with or attempt to defeat the safety interlocks which are operated by the door mechanism, or to make any irregular attempt to cause the appliance to operate with the door open 2.

  • Page 4: Electrical Connection

    ELECTRICAL CONNECTION For your safety please read the following information Warning: This appliance must be earthed. The appliance must be connected to a 230-240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following: WARNING – To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy Read all instructions before using the appliance Read and follow the specific ‘Safety Precautions’...

  • Page 6: Do's And Don'ts

    DO’S AND DON’TS To use the microwave oven safely, be sure to observe the following rules Do not remove the cabinet The cabinet contains high voltage wiring, and it is dangerous Do not insert anything in to the holes of the safety catches, air outlets, air inlets, the small holes inside the oven, or the holes at the rear of the appliance The insertion may cause not only the failure of the switches and internal parts but there is also the danger of an electric shock...

  • Page 7: Cooking Utensils

    COOKING UTENSILS Utensils should be checked to ensure that they are suitable for use in the microwave oven. The following chart summarises the proper use of cooking utensils in your oven. Cooking utensils Microwave Heat resistant glass, glass ceramic Ceramic, china Metal cookware Non resistance glass Microwave plastic...

  • Page 8: Other Helpful Instructions

    OTHER HELPFUL INSTRUCTIONS For best results and more enjoyable cooking, please read these comments thoroughly. For Best Results: 1. When determining the time for a particular food, begin by using short times and checking the cooking process frequently. It is easy to overcook food because microwaves cook very quickly.

  • Page 9: Cleaning And Care

    CLEANING AND CARE It is important that the oven is cleaned frequently to avoid food splashes from becoming ‘baked on’ Clean the microwave oven after turning off the power and pulling out the plug Oven Each time food has been cooked, wipe off the dirt or food splashes as soon as possible (Ceiling, walls, Greasy spots should be wiped off with a cloth soaked in mild detergent...

  • Page 10: Setting Up Your Oven

    SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual Grill stand A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray...

  • Page 11: Countertop Installation

    Countertop Installation Remove all packing material and accessories. Cabinet: Remove any protective film found Examine the oven for any damage such as on the microwave oven cabinet surface. dents or broken door. Do not install if oven is Do not remove the light brown Mica cover damaged.

  • Page 12: Operation Instructions

    Operation Instructions 1. Clock Setting When the microwave oven is first plugged in, the LED will display "0:00". The input time should be within 0:00--23:59; Example: To set 12:12 . (1) Press the " CLOCK/PRE-SET " button, the hour figures will flash, and the indicator for clock "...

  • Page 15

    8. Query Function...

  • Page 16: Questions And Answers

    QUESTIONS AND ANSWERS Q. What is wrong when the oven light will not glow? A. *Light bulb has blown. * Door not closed. Q. Why is steam coming out of the air exhaust vent and / or why is water dripping from the bottom of the door? A.

  • Page 17: Containers

    CONTAINERS Container Type Explanation Microwave Heat resisting glassware Glass containers with high heat-resisting properties such as Pyrex and Corning are the most suitable for the microwave oven Normal glassware Glass containers that may be broken easily by the sudden increase of temperature should be used carefully Table glassware can be used for drinks, fruits, and sweets Lead crystal is unsuitable NOTE: Do not use plates or receptacles made of coloured glass...

  • Page 18: Technical Specifications

    Before You Call For Service Refer to the following short checklist. You may find that the problem you are experiencing has nothing to do with the microwave oven itself. A couple of quick checks may save you an unnecessary service call. Problem The oven doesn't work at all.
