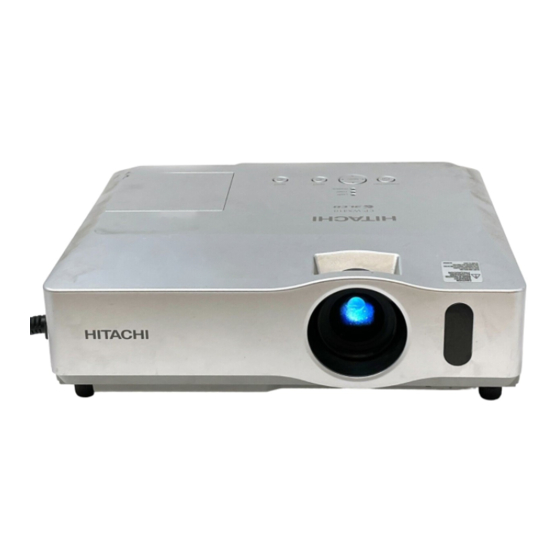

Projector
CP-WX410
User's Manual (detailed)

Operating Guide

Thank you for purchasing this projector.
WARNING
product. Be sure to read "Safety Guide" first. After reading them, store them in a
safe place for future reference.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
CAUTION
NOTE
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
Trademark acknowledgment
• Mac is a registered trademark of Apple Inc.
• Windows is a registered trademark of Microsoft Corporation.
• VESA and DDC are trademarks of the Video Electronics Standard Association.
• PowerPC is a registered trademark of International Business Machines
Corporation.
• DVI is a trademark of Digital Display Working Group.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
All other trademarks are the properties of their respective owners.
►Before using this product, please read all manuals for this
This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.
Please refer to the pages written following this symbol.
1

Advertisement

Table of Contents
loading

Related Manuals for Hitachi CP-WX410

Summary of Contents for Hitachi CP-WX410

  • Page 1: Operating Guide

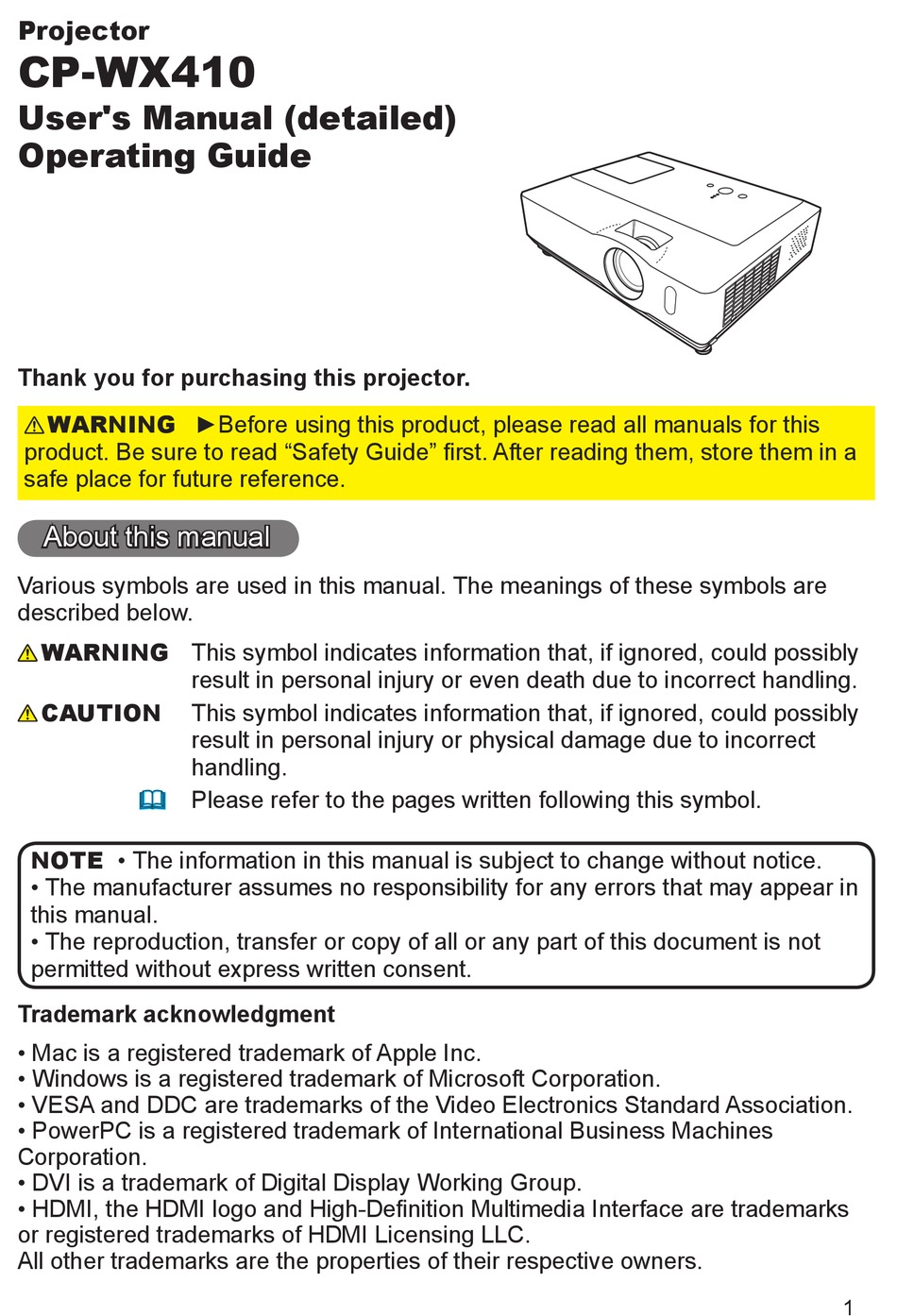

    Projector CP-WX410 User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” first. After reading them, store them in a safe place for future reference. About this manual Various symbols are used in this manual.
  • Page 2 Read this Safety Guide first. Projector User's Manual - Safety Guide Thankyouforpurchasingthisprojector. WARNING • Before using, read these user's manuals of this projector to ensure correct usage through understanding. After reading, store them in a safe place for future reference. Incorrect handling of this product could possibly result in personal injury or physical damage.

  • Page 3: Safety Precautions

    Safety Precautions WARNING Never use the projector if a problem should occur. Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing or elements or cables, penetration of liquidsorforeignmatter,etc.cancauseafireorelectricalshock. Insuchcase,immediatelyturnoffthepowerswitchandthendisconnectthe powerplugfromthepoweroutlet.Aftermakingsurethatthesmokeorodor Disconnectthe plugfromthe has stopped, contact your dealer. Never attempt to make repairs yourself poweroutlet.
  • Page 4 Safety Precautions (continued) WARNING Be cautious of High temperatures of the projector. Hightemperaturesaregeneratedwhenthelampislit.Itcouldresultinfireor burn.Usespecialcautioninhouseholdswherechildrenarepresent. Donottouchaboutthelens,airfansandventilationopeningsduringuseor immediatelyafteruse,topreventaburn.Takecareofventilation. •Keepaspaceof0cmormorebetweenthesidesandotherobjectssuch aswalls. •Donotplacetheprojectoronametallictableoranythingweakinheat. •Donotplaceanythingaboutthelens,airfansandventilationopeningsof theprojector. •Neverblocktheairfanandventilationopenings. •Donotcovertheprojectorwithatablecloth,etc. •Donotplacetheprojectoronacarpetorbedding. Never look through the lens or openings when the lamp is on. Thepowerfullightcouldadverselyaffectvision. Usespecialcautioninhouseholdswherechildrenarepresent. Use only the correct power cord and the correct power outlet. Incorrectpowersupplycouldresultinfireorelectricalshock. • Use only the correct power outlet depending on the indication on the projectorandthesafetystandard....
  • Page 5 Safety Precautions (continued) WARNING Be careful in handling the light source lamp. The projector uses a high-pressure mercury glass lamp made of glass. The lamp can break with a loud bang, or burn out. When the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containingmercurytoescapefromtheprojector’sventholes. Please carefully read the section “Lamp”.
  • Page 6 Safety Precautions (continued) CAUTION Be careful in moving the projector. Neglectcouldresultinaninjuryordamage. • Do not move the projector during use. Before moving, disconnect the power cord and all external connections, and close the slide lens door or attachthelenscap. •Avoidanyimpactorshocktotheprojector. •Donotdragtheprojector. • F ormovingtheprojector,usetheenclosedcaseorbagifprovided. Do not put anything on top of the projector.
  • Page 7 Safety Precautions (continued) CAUTION Remove the power cord for complete separation. •Forsafetypurposes,disconnectthepowercordiftheprojectorisnottobe usedforprolongedperiodsoftime. Disconnectthe • Before cleaning, turn off and unplug the projector. Neglect could result in plugfromthe fireorelectricalshock. poweroutlet. Ask your dealer to cleaning inside of the projector about every year.
  • Page 8 Safety Precautions (continued) NOTE About consumables. Lamp,LCDpanels,polarizorsandotheropticalcomponents,andairfilterandcoolingfans haveadifferentlifetimeineach.Thesepartsmayneedtobereplacedafteralongusage time. •Thisproductisn’tdesignedforcontinuoususeoflongtime.Inthecaseofcontinuoususe forhoursormore,oruseforhoursormoreeveryday(evenifitisn’tcontinuous),or repetitious use, thelifetime may be shortened, and thesepartsmayneed tobereplaced evenifoneyearhasnotpassedsincethebeginningofusing. • A ny inclining use beyond the adjustment range explained in these user’s manuals may shortenthelifetimesoftheconsumables. Before turning on the power, make the projector cool down adequately. Afterturningtheprojectoroff,pushingtherestartswitchorinterruptingofthepowersupply, make the projector cool down adequately. Operation in a high temperature state of the projectorcausesadamageoftheelectrodeandun-lightingofthelamp.
  • Page 9 Lamp WARNING HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Notethateachlamphasadifferentlifetime,andsomemayburstorburnoutsoonafter you start using them. In addition, when the bulb bursts, it is possible for shards of glasstoflyintothelamphousing,andforgas containing mercurytoescapefromthe projector’sventholes.

  • Page 10: About This Manual

    Regulatory Notices FCC Statement Warning ThisdevicecomplieswithpartoftheFCCRules.Operationissubjecttothefollowing two conditions: () This device may not cause harmful interference, and () this device must accept any interference received, including interference that may cause undesired operation. WARNING:  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part  of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not...

  • Page 11: Table Of Contents

    Contents Contents   About this manual . . . . . . . . . . . 1 PICTURE menu . . . . . . . . . . . . 26 Contents .

  • Page 12: Projector Features

    Projector features / Preparations Projector features The projector provides you with the broad use by the following features. ü This projector has a variety of I/O ports that supposedly cover for any business scene. ü This projector realizes the large projection image, even if in a small space. ü...

  • Page 13: Part Names

    Part names Part names HOT! (1) (2) (3) Projector (1) Lamp cover (55) The lamp unit is inside. (2) Focus ring (18) (3) Zoom ring (18) (11) (4) Control panel (5) (5) Elevator buttons (x 2) (18) (10) (6) Elevator feet (x 2) (18) (7) Remote sensor (12) (8) Lens (59) (9) Lens cover (3)

  • Page 14: Control Panel

    Part names Control panel (1) STANDBY/ON button (14) (2) INPUT button (15, 22) (3) MENU button (22) It consists of four cursor buttons. (4) POWER indicator (14, 61) (5) TEMP indicator (61) (6) LAMP indicator (61) Rear panel (9) (1) AUDIO IN1 port (9) USB port (2) AUDIO IN2 port (10) COMPONENT...

  • Page 15: Remote Control

    Part names Remote control (1) VIDEO button (16) (10) (2) COMPUTER button (15) (3) SEARCH button (17) MY SOURCE/ VIDEO COMPUTER DOC.CAMERA (4) STANDBY/ON button (14) ASPECT AUTO SEARCH BLANK (5) ASPECT button (17) (16) (12) FREEZE PAGE VOLUME MAGNIFY (6) AUTO button (19) (14) (7) BLANK button (21)

  • Page 16: Setting Up

    Setting up Setting up Install the projector according to the environment and manner the projector will be used in. Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1280×800 Screen size (diagonal) Projection distance (±10%) Screen height (±10%)
  • Page 17 Setting up Arrangement (continued) WARNING ►Place the projector in a stable horizontal position. If the projector falls or is knocked over, it could cause injury and/or damage to the projector. Using a damaged projector could then result in fire and/or electric shock.

  • Page 18: Connecting Your Devices

    Setting up Connecting your devices Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them.
  • Page 19 Setting up Connecting your devices (continued) NOTE • Be sure to read the manuals for devices before connecting them to the projector, and make sure that all the devices are suitable to be connected with this product. Before connecting to a PC, check the signal level, the signal timing, and the resolution. - Some signal may need an adapter to input this projector.

  • Page 20: Connecting Power Supply

    Setting up Connecting power supply At first, make sure that the power switch of the projector is set to OFF position (marked “O”). Put the connector of the power cord into the AC IN (AC inlet) of the projector. Firmly plug the power cord’s plug into the outlet.

  • Page 21: Remote Control

    Holding the hook part of the battery cover, remove it. Align and insert the two AA batteries (HITACHI MAXELL, Part No.LR6 or R6P) according to their plus and minus terminals as indicated in the remote control. Replace the battery cover in the direction of the arrow and snap it back into place.

  • Page 22: Changing The Frequency Of Remote Control Signal

    Remote control Changing the frequency of remote control signal The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control MY SOURCE/ VIDEO COMPUTER DOC.CAMERA does not function properly, attempt to change the signal frequency. ASPECT AUTO SEARCH...

  • Page 23: Power On/Off

    Power on/off Power on/off Turning on the power STANDBY/ON button POWER indicator Make sure that the power cord is firmly and correctly connected to the projector and the outlet. Remove the lens cover, and set the power switch to ON position (marked “ I ”). The POWER indicator will light up in steady orange (61).

  • Page 24: Operating

    Operating Operating Adjusting the volume VOLUME +/- button Use the VOLUME +/VOLUME - buttons to adjust the volume. A dialog will appear on the screen to aid you in adjusting the volume. MY SOURCE/ VIDEO COMPUTER DOC.CAMERA If you do not do anything, the dialog will automatically disappear after ASPECT AUTO SEARCH...
  • Page 25 Operating Selecting an input signal (continued) Press COMPUTER button on the remote control. COMPUTER button Each time you press the button, the projector switches its input port from the current port as below. MY SOURCE/ VIDEO COMPUTER DOC.CAMERA COMPUTER IN 1  COMPUTER IN 2  HDMI ASPECT AUTO SEARCH...

  • Page 26: Searching An Input Signal

    Operating Searching an input signal SEARCH button Press SEARCH button on the remote control. The projector will start to check its input ports as below in order to MY SOURCE/ VIDEO COMPUTER DOC.CAMERA find any input signals. ASPECT AUTO SEARCH BLANK When an input is found, the projector will stop searching and FREEZE...

  • Page 27: Adjusting The Projector's Elevator

    Operating Adjusting the projector's elevator When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the 10°...

  • Page 28: Using The Automatic Adjustment Feature

    Operating Using the automatic adjustment feature Press AUTO button on the remote control. AUTO button Pressing this button performs the following.  For a computer signal MY SOURCE/ VIDEO COMPUTER DOC.CAMERA The vertical position, the horizontal position and the horizontal ASPECT AUTO SEARCH...

  • Page 29: Correcting The Keystone Distortions

    Operating MY SOURCE/ COMPUTER VIDEO DOC.CAMERA Correcting the keystone distortions KEYSTONE button ASPECT AUTO SEARCH BLANK FREEZE PAGE VOLUME MAGNIFY Press KEYSTONE button on the remote DOWN control. A dialog will appear on the screen to KEYSTONE MY BUTTON aid you in correcting the distortion. MUTE Use the ▲/▼...

  • Page 30: Freezing The Screen

    Operating Freezing the screen FREEZE button Press the FREEZE button on the remote control. The “FREEZE” indication will appear on the screen (however, MY SOURCE/ VIDEO COMPUTER DOC.CAMERA the indication will not appear when the TURN OFF is AUTO ASPECT SEARCH BLANK selected for the MESSAGE item in the SCREEN menu...

  • Page 31: Using The Menu Function

    Operating Using the menu function This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, C.C. and EASY MENU. EASY MENU consists of functions often used, and the other menus are classified MY SOURCE/ into each purpose and brought together as the Advanced Menu. VIDEO COMPUTER DOC.CAMERA...
  • Page 32 Operating Using the menu function (continued) In the Advanced Menu Use the ▲/▼ cursor buttons to select a menu. If you want to change it to the EASY MENU, select EASY MENU. Then press the ► cursor button, or ENTER button to select an item.

  • Page 33: Easy Menu

    EASY MENU EASY MENU From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table. Item Description Using the ◄/► buttons switches the mode for aspect ratio. ASPECT See the ASPECT item in IMAGE menu ( ...
  • Page 34 EASY MENU EASY MENU (continued) Item Description Using the ◄/► buttons adjusts the brightness. BRIGHTNESS See BRIGHTNESS item in PICTURE menu (26). Using the ◄/► buttons adjusts the contrast. CONTRAST See CONTRAST item in PICTURE menu (26). Using the ◄/► buttons adjusts the strength of whole color. COLOR See COLOR item in PICTURE menu (27).

  • Page 35: Picture Menu

    PICTURE menu PICTURE menu From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ▲/▼...

  • Page 36: Olor Temp

    PICTURE menu PICTURE menu (continued) Item Description Using the ▲/▼ buttons switches the color temperature mode. #1 HIGH � #1 CUSTOM � #2 MID � #2 CUSTOM � � #6 CUSTOM #3 LOW � � #6 Hi-BRIGHT-3 #3 CUSTOM � �...
  • Page 37 PICTURE menu PICTURE menu (continued) Item Description Using the ▲/▼ buttons adjusts the sharpness. Strong ó Weak SHARPNESS • There may be some noise and/or the screen may flicker for a moment when an adjustment is made. This is not a malfunction. This projector has 4 memories for adjustment data (for all the items of PICTURE menu).

  • Page 38: Image Menu

    IMAGE menu IMAGE menu From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ▲/▼...
  • Page 39 IMAGE menu IMAGE menu (continued) Item Description Using the ▲/▼ buttons adjusts the horizontal position. Left ó Right • Over-adjusting the horizontal position may cause noise to appear on the screen. If this occurs, please reset the horizontal position to the default setting.

  • Page 40: Input Menu

    INPUT menu INPUT menu From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ▲/▼...
  • Page 41 INPUT menu INPUT menu (continued) Item Description The video format for S-VIDEO port and VIDEO port can be set. (1) Use the ◄/► buttons to select the input port. (2) Using the ▲/▼ buttons switches the mode for video format. AUTO ó...
  • Page 42 INPUT menu INPUT menu (continued) Item Description Selecting the AUTO mode allows you to input a sync on G signal or component signal from the port. COMPUTER IN • In the AUTO mode, the picture may be distorted with certain (continued) input signals.

  • Page 43: Setup Menu

    SETUP menu SETUP menu From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table. Item Description Selecting this item performs the automatic keystone distortion...

  • Page 44: Omponent

    SETUP menu SETUP menu (continued) Item Description Using the ▲/▼ buttons switches the mode for mirror status. MIRROR NORMAL ó H:INVERT ó V:INVERT ó H&V:INVERT If the Transition Detector is TURN ON and MIRROR status is changed, Transition Detector Alarm (50) will be displayed when projector is restarted after the power switch is turned off.

  • Page 45: Audio Menu

    AUDIO menu AUDIO menu From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table.

  • Page 46: Screen Menu

    SCREEN menu SCREEN menu From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ▲/▼...
  • Page 47 SCREEN menu SCREEN menu (continued) Item Description Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected. MyScreen ó ORIGINAL ó TURN OFF Feature Screen can be registered by the MyScreen item MyScreen...
  • Page 48 SCREEN menu SCREEN menu (continued) Item Description When the registration is completed, the registered screen and the following message are displayed for several seconds: “MyScreen registration is finished.” If the registration failed, the following message is displayed: “A capturing error has occurred. Please try again.” MyScreen •...
  • Page 49 SCREEN menu SCREEN menu (continued) Item Description Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE NAME and press the ► button. The SOURCE NAME menu will be displayed. (2) Use the ▲/▼...

  • Page 50: Option Menu

    OPTION menu OPTION menu From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME. Then perform it according to the following table.
  • Page 51 OPTION menu OPTION menu (continued) Item Description Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off. Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE) AUTO OFF When the time is set to 0, the projector is not turned off automatically. When the time is set to 1 to 99, and when the passed time with no- signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off.
  • Page 52 OPTION menu OPTION menu (continued) Item Description This item is to assign one of the following functions to MY BUTTON 1 and 2 on the remote control (6). Choose 1 or 2 on the MY BUTTON menu using the ◄/► button first. Then using the ▲/▼...
  • Page 53 OPTION menu OPTION menu (continued) Item Description FAN SPEED Using the ▲/▼ buttons the rotation speed of the cooling fans. The HIGH is the mode for use at highlands etc. Note that the projector is noisier when the HIGH is selected. HIGH ó...
  • Page 54 OPTION menu OPTION menu (continued) Item Description KEY LOCK Using the ▲/▼ buttons turns on/off the key lock feature. When TURN ON is selected, the buttons on the projector except the STANDBY/ON button are locked. TURN ON ó TURN OFF •...
  • Page 55 OPTION menu OPTION menu (continued) Item Description This projector is equipped with security functions. User registration is required before using the security functions. Please ask your local dealer. 1. Using Security Features 1.1 Inputting the PASSWORD 1.1-1 Use the ▲/▼ buttons on the OPTION menu to select SECURITY and press the ►...

  • Page 56: Password Function

    OPTION menu OPTION menu (continued) Item Description 1.3 If you have forgotten your PASSWORD 1.3-1 Follow the procedure in 1.1-1 to display the ENTER PASSWORD box. 1.3-2 While the ENTER PASSWORD box is displayed, press and hold the RESET button for about 3 seconds, or press and hold the INPUT button for 3 seconds while pressing the ►...

  • Page 57: Using The Pin Lock Function

    OPTION menu OPTION menu (continued) Item Description 2.2-4 Move the cursor to the right side of the PASSWORD AGAIN box and press the ► button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time. Pressing the ENTER button will return to MyScreen PASSWORD on/off menu.
  • Page 58 OPTION menu OPTION menu (continued) Item Description 3.1-2 Use the ▲/▼ buttons on the PIN LOCK on/off menu to select TURN ON and the PIN BOX will be displayed. 3.1-3 Input a 4 part PIN Code using the ▲, ▼, ◄, ►, COMPUTER and INPUT buttons.

  • Page 59: Using The Transition Detector Function

    OPTION menu OPTION menu (continued) Item Description 4. Using the Transition Detector Function While the Transition Detector function is ON, when power switch is started to supply to the projector, it might react as below. • Transition Detector alarm shown below might appear on screen, if the projector has been moved or re-installed.
  • Page 60 OPTION menu OPTION menu (continued) Item Description 4.2-4 Move the cursor to the right side of the PASSWORD AGAIN box and press the ► button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time. Pressing the ENTER button will return to the TRANSITION DETECTOR on/off menu.

  • Page 61: Using The My Text Password Function

    OPTION menu OPTION menu (continued) Item Description 5. Using the MY TEXT PASSWORD function This item allows you to display your own message (MY TEXT) on the START UP screen and INPUT-INFORMATION-. It can be protected by a password to prevent it from being overwritten.
  • Page 62 OPTION menu OPTION menu (continued) Item Description 5.3 Turning on the MY TEXT PASSWORD The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. 5.3-1 Turning on the MY TEXT PASSWORD function (1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT PASSWORD menu and press the ►...

  • Page 63: C.c. (Closed Caption) Menu

    C .C . (Closed Caption) menu C.C. (Closed Caption) menu The closed caption setting can be changed through C.C. menu in the advance menu. Please select the item that you will change using ▲/▼ cursor buttons. The C.C. (Closed Caption) is the function that displays •...

  • Page 64: Maintenance

    Maintenance Maintenance Replacing the lamp A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.

  • Page 65: Lamp Warning

    Maintenance Replacing the lamp (continued) Lamp warning HIGH TEMPERATURE HIGH PRESSURE HIGH VOLTAGE WARNING ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.

  • Page 66: Cleaning And Replacing The Air Filter

    Maintenance Cleaning and replacing the air filter The air filter unit of this projector consists of a filter cover, two kinds of filters, and a filter frame. The new double large filters system is expected to function longer. However, please check and clean it periodically to keep ventilation needed for normal operation of the projector.
  • Page 67 Maintenance Cleaning and replacing the air filter (continued) Turn the projector on and reset the filter time using the FILTER TIME item in the EASY MENU. (1) Press the MENU button to display a menu. (2) Point at the FILTER TIME using the ▼/▲ button, then press the ► button. A dialog will appear.

  • Page 68: Other Care

    Maintenance Other care Inside of the projector In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year. Caring for the lens If the lens is flawed, soiled or fogged, it could cause deterioration of display quality.

  • Page 69: Troubleshooting

    Troubleshooting Troubleshooting If an abnormal operation should occur, stop using the projector immediately. WARNING ►Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately turn off the power switch and then disconnect the power plug from the power outlet.

  • Page 70: Regarding The Indicator Lamps

    Troubleshooting Regarding the indicator lamps When operation of the LAMP, TEMP and POWER indicators differs from usual, check and cope with it according to the following table. POWER LAMP TEMP Description indicator indicator indicator The projector is in a standby state. Lighting Turned Turned...

  • Page 71: Shutting The Projector Down

    Troubleshooting Regarding the indicator lamps (continued) POWER LAMP TEMP Description indicator indicator indicator There is a possibility that the interior portion has become heated. Please turn the power off, and allow the projector to cool down at least Blinking 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.

  • Page 72: Phenomena That May Be Easy To Be Mistaken For Machine Defects

    Troubleshooting Phenomena that may be easy to be mistaken for machine defects About the phenomenon confused with a machine defect, check and cope with it according to the following table. Reference Phenomenon Cases not involving a machine defect page The electrical power cord is not plugged in. Correctly connect the power cord.
  • Page 73 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The AUDIO/SPEAKER setting is not correct. Correctly set the AUDIO/SPEAKER in AUDIO menu. The audio on your HDMI equipment is not set to Linear PCM.
  • Page 74 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The FREEZE function is working. Video screen display freezes. Press FREEZE button to restore the screen to normal. Color settings are not correctly adjusted.

  • Page 75: Xecute Specifications

    Specifications Specifications Specification Item Specification Product name Liquid crystal projector Panel size 1.5cm (0.59 type) Liquid Drive system TFT active matrix Crystal Panel Pixels 1,024,000 pixels (1280 horizontal x 800 vertical) Zoom lens, F = 1.6 ~ 1.8, f = 18.9~ 22.6 mm (approximately) Lens Lamp...
  • Page 76 Specifications Specifications (continued) AUDIO AUDIO S-VIDEO CONTROL AUDIO HDMI MONITOR COMPUTER COMPUTER [unit: mm]...
  • Page 77 Projector CP-WX410 User's Manual (detailed) Operating Guide – Technical Example of PC signal Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode 720 x 400 37.9 85.0 VESA TEXT 640 x 480 31.5 59.9 VESA VGA (60Hz) 640 x 480 37.9 72.8...
  • Page 78 Initial set signals Initial set signals The following signals are used for the initial settings. The signal timing of some PC models may be different. In such case, adjust the items V POSITION and H POSITION in IMAGE menu. Back porch (B) Front porch (D) Back porch (b) Front porch (d)
  • Page 79 Connection to the ports Connection to the ports MONITOR OUT COMPUTER IN1 COMPUTER IN2 HDMI AUDIO OUT CONTROL S-VIDEO AUDIO IN AUDIO IN3 COMPUTER IN1, COMPUTER IN2, MONITOR OUT D-sub 15pin mini shrink jack • Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω...
  • Page 80 Connection to the ports (continued) COMPUTER IN1 COMPUTER IN2 MONITOR OUT HDMI AUDIO OUT CONTROL S-VIDEO AUDIO IN AUDIO IN3 COMPONENT Cb/Pb, Cr/Pr RCA jack x3 • System: 480i@60, 480p@60, 576i@50, 720p@60, 1080i@60 Port Signal Component video Y, 1.0±0.1Vp-p, 75Ω terminator with composite sync Cb/Pb Component video Cb/Pb, 0.7±0.1Vp-p, 75Ω...

  • Page 81: Audio Out

    Connection to the ports (continued) COMPUTER IN1 MONITOR OUT COMPUTER IN2 HDMI AUDIO OUT CONTROL S-VIDEO AUDIO IN AUDIO IN3 AUDIO IN1, AUDIO IN2 Ø3.5 stereo mini jack • 200 mVrms 47kΩ terminator AUDIO IN3 RCA jack x2 • 200 mVrms 47kΩ terminator AUDIO OUT Ø3.5 stereo mini jack •...
  • Page 82 Connection to the ports (continued) COMPUTER IN1 MONITOR OUT COMPUTER IN2 HDMI AUDIO OUT CONTROL S-VIDEO AUDIO IN AUDIO IN3 USB B type jack Signal - Data + Data Ground CONTROL D-sub 9pin plug • About the details of RS-232C communication, please refer to the following page.

  • Page 83: Communications Setting

    RS-232C Communication RS-232C Communication CONTROL port RS-232C cable (cross) RS-232C port of the projector of the computer - (1) (1) CD RD (2) (2) RD TD (3) (3) TD - (4) (4) DTR GND (5) (5) GND - (6) (6) DSR RTS (7) (7) RTS CTS (8)
  • Page 84 RS-232C Communication (continued) Requesting projector status (Get command) (1) Send the following request code from the PC to the projector. Header + Command data (‘02H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’) (2) The projector returns the response code ‘1DH’ + data (2 bytes) to the PC. Changing the projector settings (Set command) (1) Send the following setting code from the PC to the projector.
  • Page 85 RS-232C Communication (continued) RS-232C Communication command table Command Data Names Operation Type Header Action Type Setting Code Power Turn off BE EF 06 00 2A D3 01 00 00 60 00 00 Turn on BE EF 06 00 BA D2 01 00 00 60 01 00...
  • Page 86 RS-232C Communication (continued) Command Data Names Operation Type Header Action Type Setting Code GAMMA #1 DEFAULT BE EF 06 00 07 E9 01 00 A1 30 20 00 #1 CUSTOM BE EF 06 00 07 FD 01 00 A1 30 10 00 #2 DEFAULT BE EF...
  • Page 87 RS-232C Communication (continued) Command Data Names Operation Type Header Action Type Setting Code COLOR TEMP HIGH BE EF 06 00 0B F5 01 00 B0 30 03 00 CUSTOM-1 (HIGH) BE EF 06 00 CB F8 01 00 B0 30 13 00 BE EF 06 00...
  • Page 88 RS-232C Communication (continued) Command Data Names Operation Type Header Action Type Setting Code MY MEMORY Save BE EF 06 00 F2 D6 01 00 15 20 00 00 BE EF 06 00 62 D7 01 00 15 20 01 00 BE EF 06 00 92 D7...
  • Page 89 RS-232C Communication (continued) Command Data Names Operation Type Header Action Type Setting Code C-VIDEO FORMAT AUTO BE EF 06 00 A2 70 01 00 11 22 0A 00 NTSC BE EF 06 00 C2 74 01 00 11 22 04 00 BE EF 06 00 52 75...
  • Page 90 RS-232C Communication (continued) Command Data Names Operation Type Header Action Type Setting Code STANDBY MODE NORMAL BE EF 06 00 D6 D2 01 00 01 60 00 00 SAVING BE EF 06 00 46 D3 01 00 01 60 01 00 BE EF 06 00 E5 D2...
  • Page 91 RS-232C Communication (continued) Command Data Names Operation Type Header Action Type Setting Code VOLUME-VIDEO BE EF 06 00 31 CD 02 00 61 20 00 00 Increment BE EF 06 00 57 CD 04 00 61 20 00 00 Decrement BE EF 06 00 86 CC...
  • Page 92 RS-232C Communication (continued) Command Data Names Operation Type Header Action Type Setting Code REMOTE FREQ. BE EF 06 00 FF 3D 01 00 30 26 00 00 NORMAL BE EF 06 00 6F 3C 01 00 30 26 01 00 BE EF 06 00 CC 3D...
  • Page 93 RS-232C Communication (continued) Command Data Names Operation Type Header Action Type Setting Code MyScreen LOCK TURN OFF BE EF 06 00 3B EF 01 00 C0 30 00 00 TURN ON BE EF 06 00 AB EE 01 00 C0 30 01 00 BE EF 06 00...
  • Page 94 RS-232C Communication (continued) Command Data Names Operation Type Header Action Type Setting Code MY BUTTON-2 COMPUTER1 BE EF 06 00 C6 32 01 00 01 36 00 00 COMPUTER2 BE EF 06 00 06 30 01 00 01 36 04 00 HDMI BE EF 06 00...
  • Page 95 Hitachi, Ltd. Japan 292 Yoshida-cho Totsuka-ku, Yokohama-city Kanagawa 244-0817 HITACHI EUROPE LTD. HITACHI EUROPE S.A. Consumer Affairs Department 364, Kifissias Ave. & 1, Delfon Str. PO Box 3007 152 33 Chalandri Maidenhead Athens GREECE SL6 8ZE Tel: 1-6837200 UNITED KINGDOM...

This manual is also suitable for:

Wx410 - wxga lcd projector

Table of Contents
