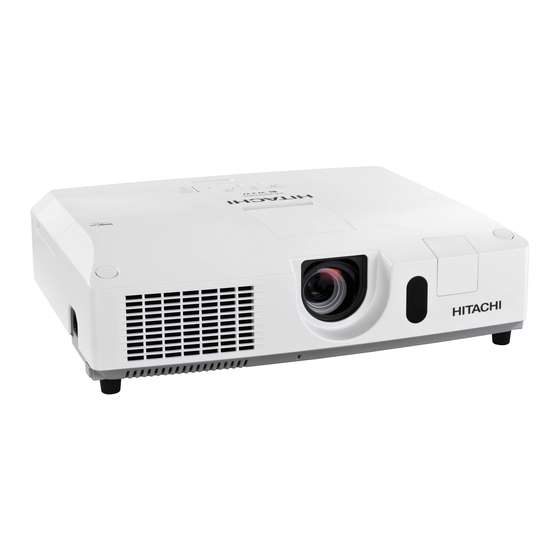

Hitachi CP-X4022WN User Manual

Hide thumbs Also See for CP-X4022WN:

Advertisement

Table of Contents

Projector
CP-X4022WN/CP-X5022WN/
CP-WX4022WN
User's Manual (detailed) Operating Guide – Technical
Example of computer signal
Resolution (H x V)
720 x 400
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1280 x 768
1280 x 800
1280 x 960
1280 x 1024
1280 x 1024
*1)
1280 x 1024
*2)
1400 x 1050
1440 x 900
*3)
1680 x 1050
*1)
1600 x 1200
NOTE
• Be sure to check jack type, signal level, timing and resolution before
connecting this projector to a PC.
• Some PCs may have multiple display screen modes. Use of some of these modes will
not be possible with this projector.
• Depending on the input signal, full-size display may not be possible in some cases.
Refer to the number of display pixels above.
• Although the projector can display signals with resolution up to UXGA (1600x1200),
the signal will be converted to the projector's panel resolution before being displayed.
The best display performance will be achieved if the resolutions of the input signal and
projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
• The image may not be displayed correctly when the input sync signal is a composite
sync or a sync on G.
• The illustrations in this manual are for illustrative purposes. They may differ slightly
from your projector.
H. frequency (kHz)
37.9
31.5
37.9
37.5
43.3
35.2
37.9
48.1
46.9
53.7
49.7
48.4
56.5
60.0
68.7
67.5
47.7
49.7
60.0
64.0
80.0
91.1
65.2
55.9
65.3
75.0
V. frequency (Hz)
85.0
59.9
72.8
75.0
85.0
56.3
60.3
72.2
75.0
85.1
74.5
60.0
70.1
75.0
85.0
75.0
60.0
60.0
60.0
60.0
75.0
85.0
60.0
59.9
60.0
60.0
*1) Supported except for HDMI input.
*2) Only for CP-X4022WN and CP-X5022WN.
*3) Only for CP-WX4022WN.
1
Rating
Signal mode
VESA
TEXT
VESA
VGA (60Hz)
VESA
VGA (72Hz)
VESA
VGA (75Hz)
VESA
VGA (85Hz)
VESA
SVGA (56Hz)
VESA
SVGA (60Hz)
VESA
SVGA (72Hz)
VESA
SVGA (75Hz)
VESA
SVGA (85Hz)
Mac 16" mode
VESA
XGA (60Hz)
VESA
XGA (70Hz)
VESA
XGA (75Hz)
VESA
XGA (85Hz)
VESA
1152 x 864 (75Hz)
VESA
WXGA (60Hz)
VESA
1280 x 800 (60Hz)
VESA
1280 x 960 (60Hz)
VESA
SXGA (60Hz)
VESA
SXGA (75Hz)
VESA
SXGA (85Hz)
VESA
SXGA+ (60Hz)
VESA
WXGA+ (60Hz)
VESA
WSXGA+ (60Hz)
VESA
UXGA (60Hz)

Advertisement

Table of Contents
loading

Related Manuals for Hitachi CP-X4022WN

Summary of Contents for Hitachi CP-X4022WN

  • Page 1 60.0 VESA UXGA (60Hz) *1) Supported except for HDMI input. *2) Only for CP-X4022WN and CP-X5022WN. *3) Only for CP-WX4022WN. NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.
  • Page 2 Initial set signals Initial set signals The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu. Back porch (B) Front porch (D) Back porch (b)

  • Page 3: Monitor Out

    Connection to the ports Connection to the ports NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed. ►Only the signal that is input from the COMPUTER IN1 or IN2 can be output from the MONITOR OUT port.
  • Page 4 Connection to the ports (continued) COMPUTER IN2 (G/Y, B/Cb/Pb, R/Cr/Pr, H, V) • BNC jack x 5 • Video : Analog 0.7Vp-p, 75Ω terminator • H/V, sync, : TTL level (positive/negative) • Composite sync, : TTL level COMPONENT (Y, Cb/Pb, Cr/Pr) RCA jack x3 •...
  • Page 5 Connection to the ports (continued) HDMI 10 12 14 • Type :Digital audio/video connector • Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz) 13 15 Signal Signal Signal T.M.D.S. Data2 + T.M.D.S. Data0 Shield 15 SCL T.M.D.S. Data2 Shield T.M.D.S.
  • Page 6 Connection to the ports (continued) USB TYPE A USB TYPE B USB A type jack USB B type jack Signal Signal - Data - Data + Data + Data Ground Ground CONTROL D-sub 9pin plug • About the details of RS-232C communication, 6 7 8 please refer to the section "RS-232C Communication".
  • Page 7 Connection to the ports (continued) To input SCART RGB signal; SCART SCART connector (jack) SCART cable (plug) RCA plugs To input SCART RGB signal to the projector, use a SCART to RCA cable. Connect the plugs refer to above ex.. For more reference, please consult your dealer.

  • Page 8: Control Port

    RS-232C Communication RS-232C Communication When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication / Network command table (&17). Connection Turn off the projector and the computer.
  • Page 9 RS-232C Communication (continued) Communicaion settings 1. Protocol 19200bps,8N1 2. Command format ("h" shows hexadecimal) Byte Number Command Header Data Header Data Setting Action Type code size flag code Packet Action <SET>Change setting to desired value [(cL)(cH)] (aL) (aH) 01h 00h (bL) (bH) (cL) (cH) by [(eL)(eH)].
  • Page 10 RS-232C Communication (continued) 3. Response code / Error code ("h" shows hexadecimal) (1) ACK reply : 06h When the projector receives the Set, Increment, Decrement or Execute command correctly, the projector changes the setting data for the specified item by [Type], and it returns the code. (2) NAK reply : 15h When the projector cannot understand the received command, the projector returns the error code.

  • Page 11: Command Control Via The Network

    Command Control via the Network Command Control via the Network When the projector connects network, the projector can be controlled with RS- 232C commands from the computer with web browser. For details of RS-232C commands, refer to RS-232C Communication / Network command table (&17).
  • Page 12 Command Control via the Network (continued) Communicaion Port The following two ports are assigned for the command control. TCP #23 TCP #9715 Configure the following items form a web browser when command control is used. Port Settings Click the [Enable] check box to open [Network Control Port1 (Port: 23)] to use TCP #23.

  • Page 13: Command Control Settings

    Command Control via the Network (continued) Command control settings [TCP #23] 1. Command format Same as RS-232C communication, refer to RS-232C Communicaton command format. 2. Response code / Error code ("h" shows hexadecimal) Four of the response / error code used for TCP#23 are the same as RS-232C Communication (1)~(4).

  • Page 14: Response Code / Error Code

    Command Control via the Network (continued) 2. Response code / Error code ("h" shows hexadecimal) The connection ID is attached for the TCP#23's response / error codes are used. The connection ID is same as the sending command format. (××h : connection ID) (1) ACK reply : 06h + ××h (2) NAK reply : 15h + ××h (3) Error reply : 1Ch + 0000h + ××h...
  • Page 15 Network Bridge Communication Network Bridge Communication This projector is equipped with NETWORK BRIDGE function. When the projector connects to the computer by LAN communicaton, an external device that is connected with this projector by RS-232C communication can be controlled from the computer as a network terminal. For details, see the 6.

  • Page 16: Communication Settings

    Network Bridge Communication Communication settings For communication setting, use the OPTION - SERVICE - COMMUNICATION menu. (&OPTION menu - SERVICE - COMMUNICATION in the Operating Guide) Item Condition BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps Data length 8 bit (fixed) PARITY NONE/ODD/EVEN Start bit...
  • Page 17 RS-232C Communication / Network command table RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code Turn off BE EF 06 00 2A D3 01 00 00 60 00 00 Turn on BE EF 06 00 BA D2 01 00...
  • Page 18 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 89 D2 02 00 03 20 00 00 BRIGHTNESS Increment BE EF 06 00 EF D2 04 00 03 20 00 00 Decrement BE EF...
  • Page 19 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 C4 FE 02 00 95 30 00 00 User Gamma Point 6 Increment BE EF 06 00 A2 FE 04 00 95 30 00 00...
  • Page 20 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 40 F5 02 00 B6 30 00 00 COLOR TEMP Increment BE EF 06 00 26 F5 04 00 B6 30 00 00 OFFSET G...
  • Page 21 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 F1 82 02 00 01 21 00 00 H POSITION Increment BE EF 06 00 97 82 04 00 01 21 00 00 Decrement...
  • Page 22 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code AUTO BE EF 06 00 86 D8 01 00 22 20 00 00 NORMAL BE EF 06 00 16 D9 01 00 22 20 01 00 HDMI RANGE ENHANCED...
  • Page 23 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 01 88 02 00 25 21 00 00 PERFECT FIT Increment BE EF 06 00 67 88 04 00 25 21 00 00 Left Bottom -H...
  • Page 24 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code COMPUTER IN1 BE EF 06 00 3E F4 01 00 B0 20 00 00 MONITOR OUT - BE EF 06 00 CE B5 01 00 B0 20 FF 00...
  • Page 25 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 75 CD 02 00 62 20 00 00 VOLUME - S-VIDEO Increment BE EF 06 00 13 CD 04 00 62 20 00 00 Decrement...
  • Page 26 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code AUDIO IN1 BE EF 06 00 A2 DC 01 00 35 20 01 00 AUDIO IN2 BE EF 06 00 52 DC 01 00 35 20 02 00 AUDIO SOURCE -...
  • Page 27 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 02 F1 01 00 A1 20 00 00 MIC LEVEL HIGH BE EF 06 00 92 F0 01 00 A1 20 01 00 BE EF...
  • Page 28 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 40 D7 02 00 16 30 00 00 MENU POSITION V Increment BE EF 06 00 26 D7 04 00 16 30 00 00 Decrement...
  • Page 29 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 D2 62 01 00 02 37 01 00 BE EF 06 00 22 62 01 00 02 37 02 00 C.
  • Page 30 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code COMPUTER IN1 BE EF 06 00 C6 32 01 00 01 36 00 00 COMPUTER IN2 BE EF 06 00 06 30 01 00 01 36 04 00 HDMI...
  • Page 31 RS-232C Communication / Network command table (continued) Command Data Names Operation Type Header Action Type Setting Code PERFECT FIT Execute BE EF 06 00 29 95 06 00 48 21 00 00 Memory Save-1 PERFECT FIT Execute BE EF 06 00 D5 94 06 00 49 21...

  • Page 32: Pjlink Command

    PJLink command PJLink command Commands Control Description Parameter or Response 0 = Standby POWR Power Contorol 1 = Power On 0 = Standby POWR ? Power Status inquiry 1 = Power On 2 = Cool Down 11 = COMPUTER IN 1 12 = COMPUTER IN 2 21 = COMPONENT 22 = S-VIDEO...
  • Page 33 NAME ? Projector Name inquiry NAME" of "NETWORK" Manufucturer's Name INF1 ? HITACHI inquiry Your model name, "CP-X4022WN", INF2 ? Model Name inquiry "CP-X5022WN" or "CP-WX4022WN" Responds with the factory information and so INFO ? Other Information inquiry CLSS ? Class Information inquiry 1 NOTE •...
