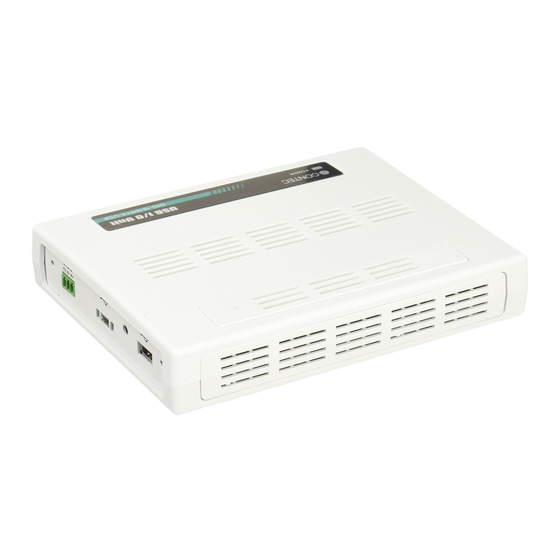

- Page 1 PC-HELPER Digital I/O Unit with High Voltage Isolation for USB DIO-1616RYX-USB User’s Guide CONTEC CO.,LTD.
- Page 2 Check Your Package Thank you for purchasing the CONTEC product. The product consists of the items listed below. Check, with the following list, that your package is complete. If you discover damaged or missing items, contact your retailer. Product Configuration List - Unit [DIO-1616RYX-USB] …1...
-
Page 3: Copyright
No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document. The information in this document is subject to change without notice. -
Page 4: Table Of Contents
Setting with the Found New Hardware Wizard ................16 Setting Properties Using Device Manager ..................17 Step 4 Checking Operations with the Diagnosis Program ..............19 What is the Diagnosis Program? ....................19 Using the Diagnosis Program ......................19 DIO-1616RYX-USB... - Page 5 Interrupt Control Function ........................37 Disabling/enabling Interrupts......................37 Selecting the Edge of input signals, at which to generate an interrupt ........37 Clearing the Interrupt Status and Interrupt Signal ................37 ABOUT HARDWARE Hardware specification..........................39 Physical dimensions ..........................40 Block Diagram............................40 Difference from DIO-1616RY-PE and PIO-1616RY(PCI) ..............41 DIO-1616RYX-USB...
-
Page 6: Before Using The Product
This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software. DIO-1616RYX-USB... - Page 7 This product cannot be stacked up for installation. When you use the USB port included on the DIO-1616RYX-USB, use 5VDC power supply for self-power. For more details on the connection with 5VDC power supply, refer to chapter2 - step3, “Connection with 5VDC Power Supply for Self-power”.
-
Page 8: Support Software
1. Before Using the Product Support Software You should use CONTEC support software according to your purpose and development environment. Windows version of digital I/O driver API-DIO(WDM) [Stored on the bundled CD-ROM driver library API-USBP(WDM)] It is the library software, and which supplies command of hardware produced by our company in the form of standard Win32 API function (DLL). -
Page 9: Cable & Connector (Option)
DC-DC power supply unit (input: 30 - 50VDC, output: 5VDC 3.0A) : POW-DD43GY A PCB37P or PCB37PS optional cable is required. “Spring-up” type terminal is used to prevent terminal screws from falling off. Check the CONTEC’s Web site for more information on these options. DIO-1616RYX-USB... -
Page 10: Customer Support
You can download updated driver software and differential files as well as sample programs available in several languages. Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price, delivery time, or estimate information. Limited One-Year Warranty CONTEC products are warranted by CONTEC CO., LTD. -
Page 11: Safety Precautions
When you use the USB port included on the DIO-1616RYX-USB, use 5VDC power supply for self-power. Do not connect the device other than that of CONTEC’s USB to the USB port included on the DIO-1616RYX-USB. Otherwise, this may cause a failure or malfunction. - Page 12 1. Before Using the Product Regardless of the foregoing statements, CONTEC is not liable for any damages whatsoever (including damages for loss of business profits) arising out of the use or inability to use this CONTEC product or the information contained herein.
-
Page 13: Environment
(3) Store the package at room temperature at a place free from direct sunlight, moisture, shock, vibration, magnetism, and static electricity. Disposal When disposing of the product, follow the disposal procedures stipulated under the relevant laws and municipal ordinances. DIO-1616RYX-USB... -
Page 14: Setup
Step 1 Setting the Hardware Step 2 Installing the Software Step 3 Installing the Hardware Step 4 Checking Operations with the Diagnosis Program Uninstall the driver and then set it up again if it cannot be set up properly. DIO-1616RYX-USB... -
Page 15: Step 1 Setting The Hardware
[Type A connector] USB port [mini B connector] +5VDC input terminal Interface connector POWER Status USB TypeA Interface connector (CN1) For PC The above figure has installed the USB cable attachment. Figure 2.1. Name of each parts (Front side) DIO-1616RYX-USB... -
Page 16: Step 2 Initializing The Software
* Cannot be used for this product. Points Please set up the supplied CD-ROM if it has not been set up. The menu starts automatically. If the menu do not start, launch X:AUTORUN.EXE(X:CD-ROM drive) from [Run…] in Start menu. The screen design may be different. DIO-1616RYX-USB... -
Page 17: Installation Of Api-Usbp(Wdm) Development Environment
(1) Clicking on “Install Development or Execution Environment”. [API-USBP(WDM) Installer] dialog box displays. (2) Selecting “Advanced Digital I/O driver”. (3) Clicking on “Continue” Button. Please perform installation following the directions on the screen. And thus the installation is completed. The screen design may be different. DIO-1616RYX-USB... -
Page 18: Step 3 Installing The Hardware
Connection with 5VDC Power Supply for Self-power When you use the HUB function (USB Type A connector) included on the DIO-1616RYX-USB, this product must be connected with 5VDC power supply (in a self-powered state). Connect with 5VDC power supply by using +5VDC input pin. -
Page 19: Connecting The Product
The USB cable attachment cannot be used excluding an attached cable. When the USB cable attachment is being used, do not perform removing and connecting the USB cable on the unit side repeatedly. This may damage the USB cable attachment or yourself. DIO-1616RYX-USB... - Page 20 (4) When connecting the USB cable through the USB hub of this product, it can be made easily not to come off by using clamps for prevention of cable on the main unit's side (Appended goods). Figure 2.6. Usage of clamps for prevention of cable on the main unit's side DIO-1616RYX-USB...
-
Page 21: Setting With The Found New Hardware Wizard
Detect setup information from supplied CD automatically for installing USB driver. * The name of the connected product will be displayed. DIO-1616RYX-USB Point Please specify the path for supplied CD as follows in the case of failure in detecting automatically. -
Page 22: Setting Properties Using Device Manager
From [Start] menu, click on [Settings]-[Control Panel]-[System] and then click on [Device Manager] button in [Hardware] tab. * The name of the connected product will be displayed. DIO-1616RYX-USB In the case of Windows 98/Me Right-click on [My Computer] and select [Properties] to start device manager. DIO-1616RYX-USB... - Page 23 (Default name also can be used.) * The name of the connected product will be displayed. DIO-1616RYX-USB * The product-specific number will be displayed as the serial number. CAUTION USB driver can not be used without settings. Settings must be performed.
-
Page 24: Step 4 Checking Operations With The Diagnosis Program
Using the “Diagnosis Report” feature reports the driver settings, the presence or absence of the product, I/O status, and interrupt status. Using the Diagnosis Program Starting the Diagnosis Program Click [Diagnosis] on the Properties page to start the diagnosis program. * The name of the connected product will be displayed. DIO-1616RYX-USB DIO-1616RYX-USB... - Page 25 “Input Port” : Displays input values bit by bit at fixed time intervals. “Output Port” : Mouse operation allows the data to output or display. * The name of the connected product will be displayed. DIO-1616RYX-USB Input port : 16Bit Output port : 16Bit will be displayed.
- Page 26 CAUTION Before executing diagnosis report output, unplug the cable from the product. * The name of the connected product will be displayed. DIO-1616RYX-USB Input port : 16Bit Output port : 16Bit will be displayed. Click on [Show Diagnosis Report].
- Page 27 2. Setup DIO-1616RYX-USB...
-
Page 28: External Connection
- Compatible connector 17JE-23370-02(D8C) [mfd by DDK, M(male)type] FDCD-37P [mfd by HIROSE, M(male)type] Interface connector (CN1) DC-37P-N [mfd by JAE, M(male)type] * Please refer to chapter 1 for more information on the supported cable and accessories. Figure 3.1. Interface Connector Shape DIO-1616RYX-USB... -
Page 29: Connector Pin Assignment
Common pin for input signals. These pins are common to 16 input signal pins. OCOM 2/3 Connect the positive side of the external power supply. These pins are common to 16 output signal pins. N.C. This pin is left unconnected. Figure 3.2. Pin Assignments of Interface Connector (CN1) DIO-1616RYX-USB... -
Page 30: Relationships Between Logical Ports/Bits And Connector Signal Pins
Notes : I-xx represents the input signal. O-xx represents the output signal. [xx] represents the logical bit. CAUTION The logical port and logical bit numbers are virtual port and bit numbers that enable programming independent of unit I/O addresses or unit types. DIO-1616RYX-USB... -
Page 31: Connecting Input Signals
I-00 (CN1 : 2pin) 12 - 24VDC Switch When the switch is ON, the corresponding bit contains 1. When the switch is OFF, by contrast, the bit contains 0. Figure 3.4. An Example to use Input I-00 DIO-1616RYX-USB... -
Page 32: Examples Of Connecting The Board To An External Device
Sink type 12 - 24VDC output Figure 3.5. Connecting the input to the sink type output Sourece type Unit output Input External power supply 12 - 24VDC Input common Figure 3.6. Connecting the input to the source type output DIO-1616RYX-USB... -
Page 33: Connecting Output Signals
Output common (CN1 : 20pin) When "1" is output to a relevant bit, the corresponding LED comes on. When "0" is output to the bit, in contrast, the LED goes out. Figure 3.8. An Example to use Output O-20 DIO-1616RYX-USB... -
Page 34: Examples Of Connecting The Board To An External Device
External Output power supply Output common Figure 3.9. Connecting the Output to the Sink Output Acceptable Input Unit Output common External power supply Output Sourece output acceptable input Figure 3.10. Connecting the Output to the Source Output Acceptable Input DIO-1616RYX-USB... - Page 35 3. External Connection DIO-1616RYX-USB...
-
Page 36: Application Development
4. Application Development Please reference to online help and sample program when developing applications. Reference to Online Help Click on [Programs]-[CONTEC API-USBP(WDM)]-[API-USBP(WDM) Help] from [Start] menu. The information for application development, such as function reference is provided in [API-USBP(WDM) Help]. -
Page 37: Sample Program
4. Application Development Sample Program To run a sample program, click on [Programs] - [CONTEC API-USBP(WDM)] -[DIO] - [Sample Name] from [Start] menu. Distributing Developed Application Please distribute the developed application with USB driver in supplied CD-ROM. Created application (including driver) can be freely distributed. -
Page 38: Returning To Initial State
DIO-1616RYX-USB (2) Drawing USB cable from a PC *1 USB port (3) Uninstalling Driver Select [CONTEC API-DIO(WDM) driver] from [My Computer]-[Control Panel]-[Add/Remove Programs]. (4) Restarting *1 If 5VDC power supply is used, unplug it too. (It may not be normally initialized in the state of 5VDC power supply connection.) - Page 39 4. Application Development DIO-1616RYX-USB...
-
Page 40: Function
When “0” is output to the relevant bit, in contrast, the corresponding transistor is set to “OFF”. CAUTION When the PC is turned on, all output are reset to 0 (OFF). Monitoring Output Data This product can read the state of the data currently being output without affecting the output data. DIO-1616RYX-USB... -
Page 41: Digital Filter
If you set the digital filter time, the filter applies to all input pins. You cannot apply the filter only to a specific filter. Do not set Setting Data to a value outside the above range as doing so can cause this product to malfunction. DIO-1616RYX-USB... -
Page 42: Interrupt Control Function
All of the interrupt status bits are set to 0 when the power is turned on. If an interrupt mask bit has been set to disable interrupts, the interrupt status bit is not set even when the input signal changes its level. DIO-1616RYX-USB... - Page 43 5. Function DIO-1616RYX-USB...
-
Page 44: About Hardware
As a USB hub is also counted as one device, you cannot just connect 127 USB unit. External circuit power supply is required separately. To suppress the heating, ensure that there are spaces for ventilation (about 5cm) around this product. When using the attached AC adaptor POA200-20-2, it is 0 - 40 ºC DIO-1616RYX-USB... -
Page 45: Physical Dimensions
6. About Hardware Physical dimensions Figure 6.1. Physical dimensions Block Diagram Figure 6.2. Block Diagram DIO-1616RYX-USB... -
Page 46: Difference From Dio-1616Ry-Pe And Pio-1616Ry(Pci)
6. About Hardware Difference from DIO-1616RY-PE and PIO-1616RY(PCI) Table 6.2. Difference from DIO-1616RY-PE and PIO-1616RY(PCI) Item DIO-1616RYX-USB DIO-1616RY-PE PIO-1616RY(PCI) Input section Input resistance 3kΩ 3 kΩ (with 12 - 24 V selected) or 6 kΩ (with 24 - 48 V... - Page 47 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan Japanese http://www.contec.co.jp/ English http://www.contec.com/ Chinese http://www.contec.com.cn/ No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. [08122011] [11262009] Management No. NA00309 08122011_rev3 Parts No.
