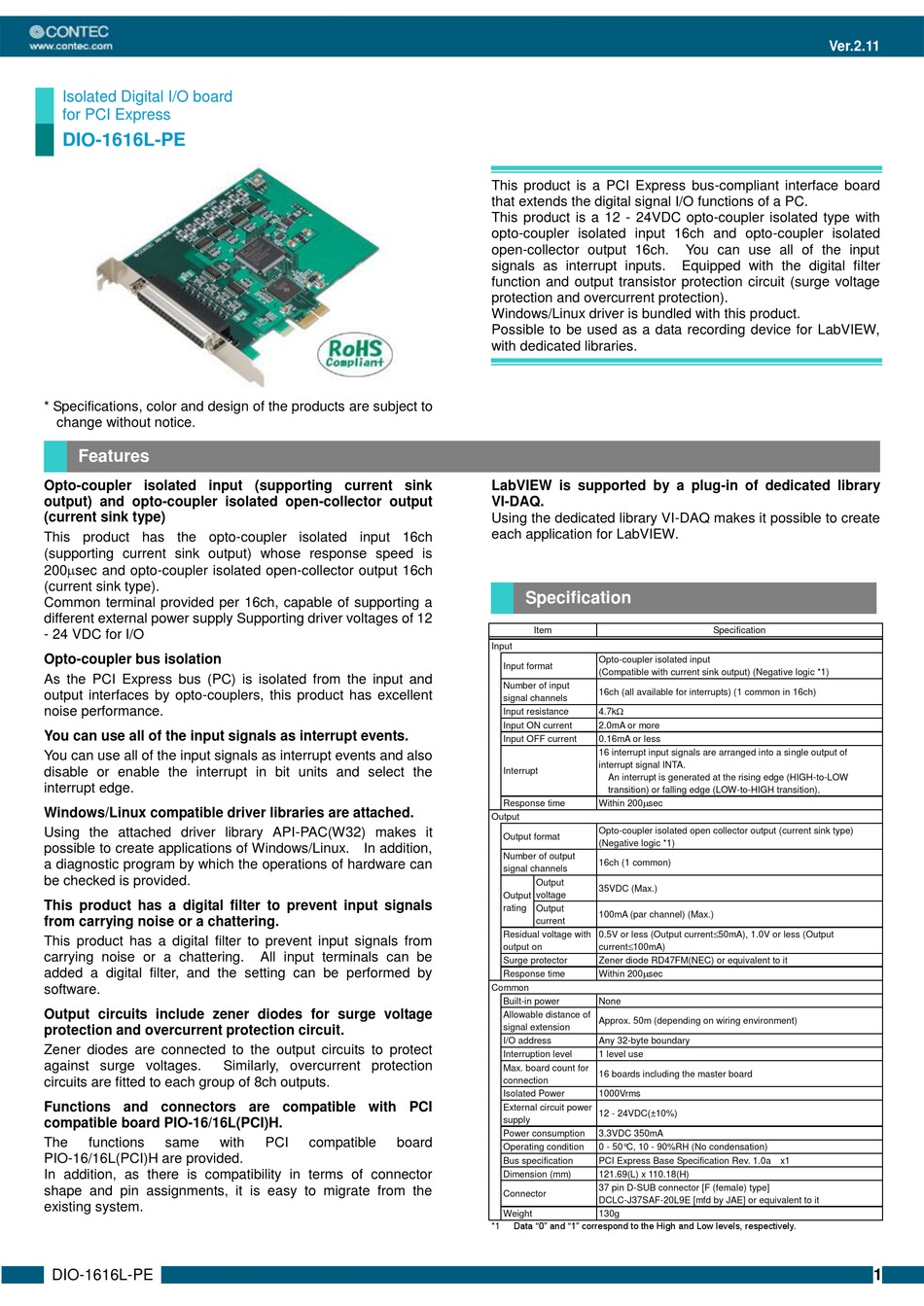

Contec DIO-1616L-PE Quick Start Manual

Isolated Digital I/O board
for PCI Express

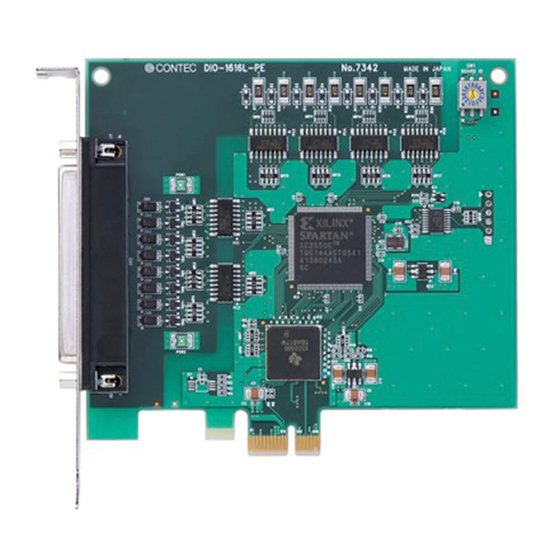

DIO-1616L-PE
* Specifications, color and design of the products are subject to
change without notice.
Features
Opto-coupler isolated input (supporting current sink
output) and opto-coupler isolated open-collector output
(current sink type)
This product has the opto-coupler isolated input 16ch
(supporting current sink output) whose response speed is
200sec and opto-coupler isolated open-collector output 16ch
(current sink type).
Common terminal provided per 16ch, capable of supporting a
different external power supply Supporting driver voltages of 12
- 24 VDC for I/O
Opto-coupler bus isolation
As the PCI Express bus (PC) is isolated from the input and
output interfaces by opto-couplers, this product has excellent
noise performance.
You can use all of the input signals as interrupt events.
You can use all of the input signals as interrupt events and also
disable or enable the interrupt in bit units and select the
interrupt edge.
Windows/Linux compatible driver libraries are attached.
Using the attached driver library API-PAC(W32) makes it
possible to create applications of Windows/Linux. In addition,
a diagnostic program by which the operations of hardware can
be checked is provided.
This product has a digital filter to prevent input signals
from carrying noise or a chattering.
This product has a digital filter to prevent input signals from
carrying noise or a chattering.
added a digital filter, and the setting can be performed by
software.
Output circuits include zener diodes for surge voltage
protection and overcurrent protection circuit.
Zener diodes are connected to the output circuits to protect
against surge voltages.
circuits are fitted to each group of 8ch outputs.
Functions and connectors are compatible with PCI
compatible board PIO-16/16L(PCI)H.
The functions same
PIO-16/16L(PCI)H are provided.
In addition, as there is compatibility in terms of connector
shape and pin assignments, it is easy to migrate from the
existing system.
DIO-1616L-PE
All input terminals can be
Similarly, overcurrent protection
with PCI compatible
This product is a PCI Express bus-compliant interface board
that extends the digital signal I/O functions of a PC.
This product is a 12 - 24VDC opto-coupler isolated type with
opto-coupler isolated input 16ch and opto-coupler isolated
open-collector output 16ch.
signals as interrupt inputs.
function and output transistor protection circuit (surge voltage
protection and overcurrent protection).
Windows/Linux driver is bundled with this product.
Possible to be used as a data recording device for LabVIEW,
with dedicated libraries.
LabVIEW is supported by a plug-in of dedicated library
VI-DAQ.
Using the dedicated library VI-DAQ makes it possible to create
each application for LabVIEW.
Specification
Item
Input
Input format
Number of input
signal channels
Input resistance
Input ON current
Input OFF current
Interrupt
Response time
Output
Output format
Number of output
signal channels
Output
Output voltage
rating Output
current
Residual voltage with
output on
Surge protector
Response time
Common
Built-in power
Allowable distance of
signal extension
I/O address
Interruption level
Max. board count for
connection
Isolated Power
External circuit power
supply
Power consumption
board
Operating condition
Bus specification
Dimension (mm)
Connector
Weight
Data "0" and "1" correspond to the High and Low levels, respectively.
*1
You can use all of the input
Equipped with the digital filter
Specification
Opto-coupler isolated input
(Compatible with current sink output) (Negative logic *1)
16ch (all available for interrupts) (1 common in 16ch)
4.7k
2.0mA or more
0.16mA or less
16 interrupt input signals are arranged into a single output of
interrupt signal INTA.
An interrupt is generated at the rising edge (HIGH-to-LOW
transition) or falling edge (LOW-to-HIGH transition).
Within 200sec
Opto-coupler isolated open collector output (current sink type)
(Negative logic *1)
16ch (1 common)
35VDC (Max.)
100mA (par channel) (Max.)
0.5V or less (Output current50mA), 1.0V or less (Output
current100mA)
Zener diode RD47FM(NEC) or equivalent to it
Within 200sec
None
Approx. 50m (depending on wiring environment)
Any 32-byte boundary
1 level use
16 boards including the master board
1000Vrms
12 - 24VDC(±10%)
3.3VDC 350mA
0 - 50°C, 10 - 90%RH (No condensation)
PCI Express Base Specification Rev. 1.0a x1
121.69(L) x 110.18(H)
37 pin D-SUB connector [F (female) type]
DCLC-J37SAF-20L9E [mfd by JAE] or equivalent to it
130g
Ver.2.11
