Lightolier ProSpec ADAPTER Instructions

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regula-
tions. To assure full compliance with local codes and regulations, check with your local electrical inspector
before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTRUCTIONS FOR ATTACHING ProSpec
INSTRUCTIONS FOR ATTACHING ADAPTER T0 ProSpec
TWO CIRCUIT TRACK

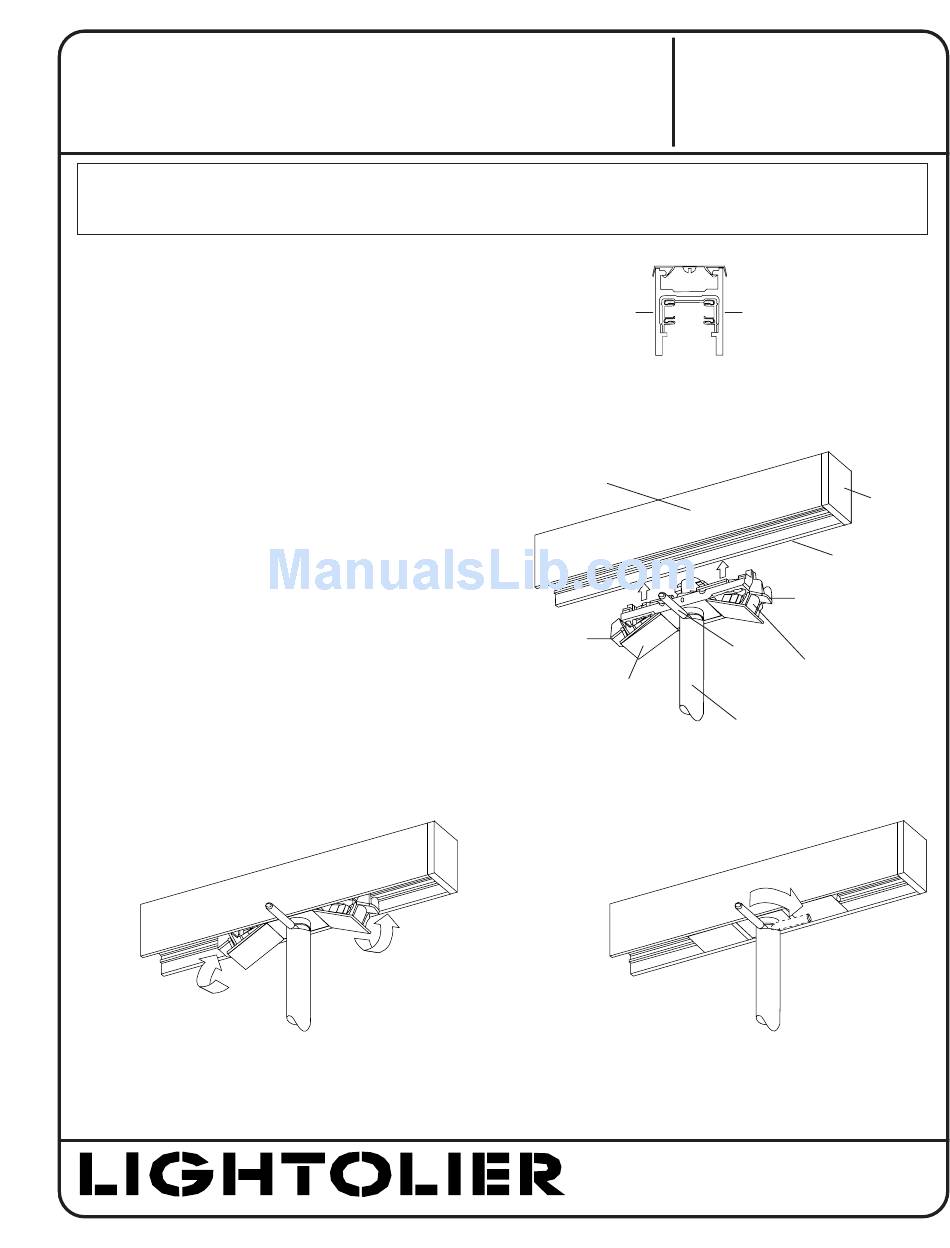

1. Select the CIRCUIT in ProSpec
SPOT to be powered with (Fig. A) by orienting the LEVER
towards the side of the track of the selected CIRCUIT. (Fig. B)
2. With the CLAMPING TABS in the down position, insert
ADAPTER into ProSpec TRACK and flip the CLAMPING TABS up
to secure the ADAPTER. (Fig. C)
3. To energize FIXTURE, turn LEVER all the way until LEVER is
parallel to ProSpec TRACK. (Fig. D)
4. To remove FIXTURE, reverse procedure in Step 3 then flip down
CLAMPING TABS and pull FIXTURE out of ProSpec TRACK.
DO NOT ATTEMPT TO RELEASE CLAMPING TABS before
disconnecting power with LEVER.
NEVER PLACE FINGERS ABOVE THE BARRIERS ON THE
CLAMPING TABS WHEN INSTALLING OR
REMOVING FIXTURE.
5. To change FIXTURE to second circuit, remove FIXTURE as
indicated in Step 4, then turn FIXTURE around 180° until LEVER
is pointing to the other side of ProSpec TRACK and installed as
indicated in Step 2.
Fig. C
For use with ProSpecTrack Systems Only
™ TRACK you want the ProSpec
INSTRUCTION SHEET NO.
IS:DR2PS
0404
™ ADAPTER TO ProSpec
CIRCUIT 1
ProSpec TRACK
Fig. A
CIRCUIT 1
BARRIER
CLAMPING
TABS
Fig. B
®
FALL RIVER, MASSACHUSETTS, 02720
MONTREAL, QUEBEC, CANADA
PAGE 1 OF 1
™ TRACK
CIRCUIT 2
TRACK
CIRCUIT 2
BARRIER
FINGER LOCATION
LEVER
FOR REMOVAL
ADAPTER
Fig. D
