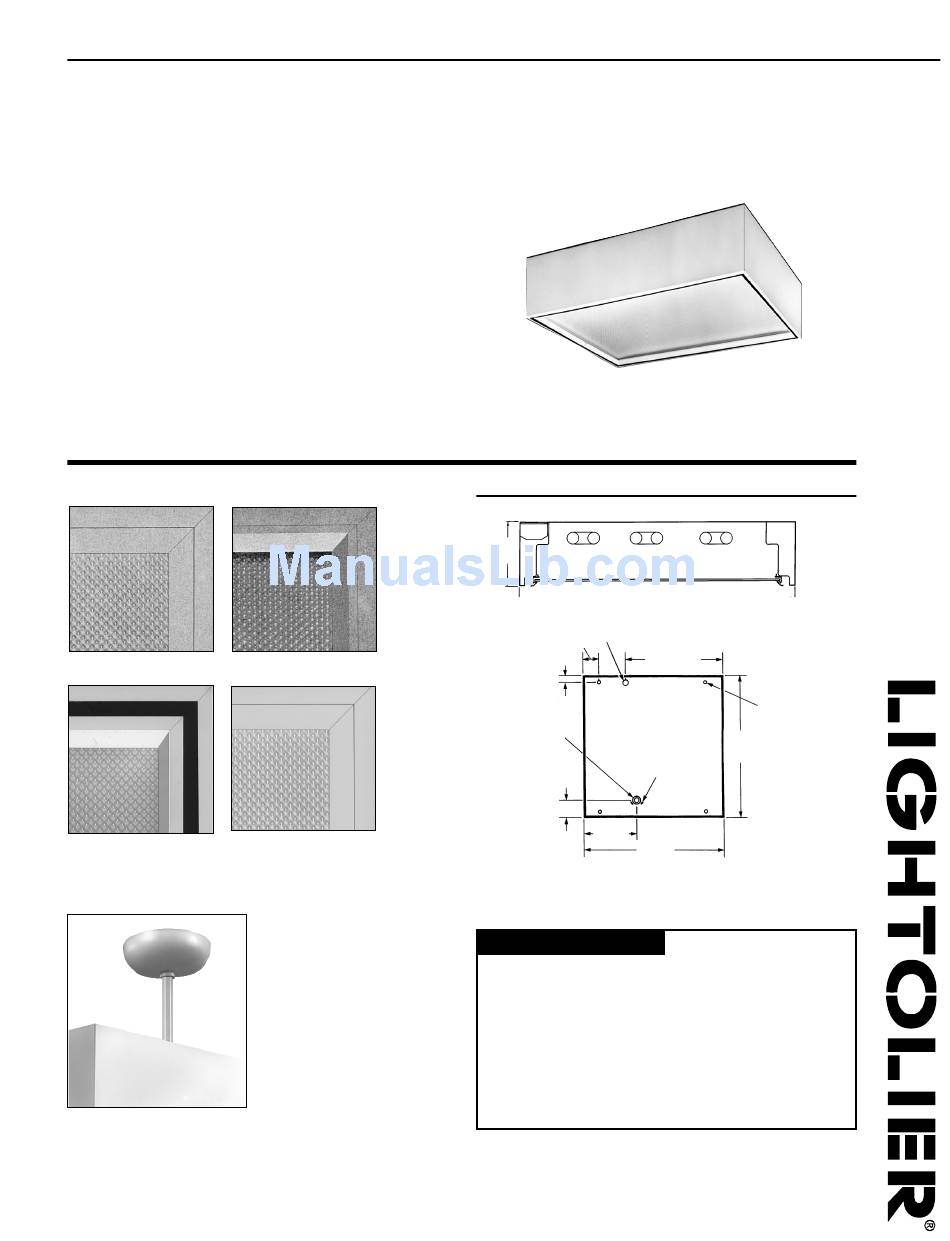

PRISMALYTE (PNB)
Page 1 of 2
Features
• Only 5-1/2" deep.
• Efficiency 57.3% (2U lamp T8).
• 1.4 spacing mounting ratio (2 lamp T8).
• 20 gauge steel body.
• 45° mitered corners (body and door frame).
• Side mounted ballast for cooler operation.
• Fully enclosed wiring.
• Available in three lens frame styles.
• Door jamb with positive light stop.
• Spring-loaded latches.
• Reversible door frame hinge.
• Available with floating or full size doors.
• Matches Prismalyte (PRA/PRS) recessed.
• Frames interchangeable with Deepcel (DPB).
• Meets NYC Code requirements.
FEATURES
(FA) flat full-size aluminum
(RA) regressed full-size
frame.
aluminum frame.
(FS) flat full-size steel frame.
(RF) 1/2" regressed floating
aluminum frame.
MOUNTING METHOD
Stem mounting (four per fixture
is required)
PNB SERIES 2U/6U/FT/17
2'x2' SURFACE BOX FLUORESCENT, PREMIUM SPECIFICATION GRADE LENSED
(140mm)
DIMENSIONS
5-1/2"
24" (610mm)
3"
7/8" K.O.
(76mm)
(419mm)
1-1/4"
(32mm)
7/8" Dia. K.O.
within
3/16" x 5/8"
1-7/8" dia. K.O.
K.O.
2" (51mm)
9-1/2"
(241mm)
24"
(610mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902
2, 3 OR 4 LAMP, T8, TT5, OR T12
16-1/2"
9/32"
mounting
hole
24"
(610mm)
Type:
www.lightolier.com
Section 3A/Folio H50-18 REV. A
