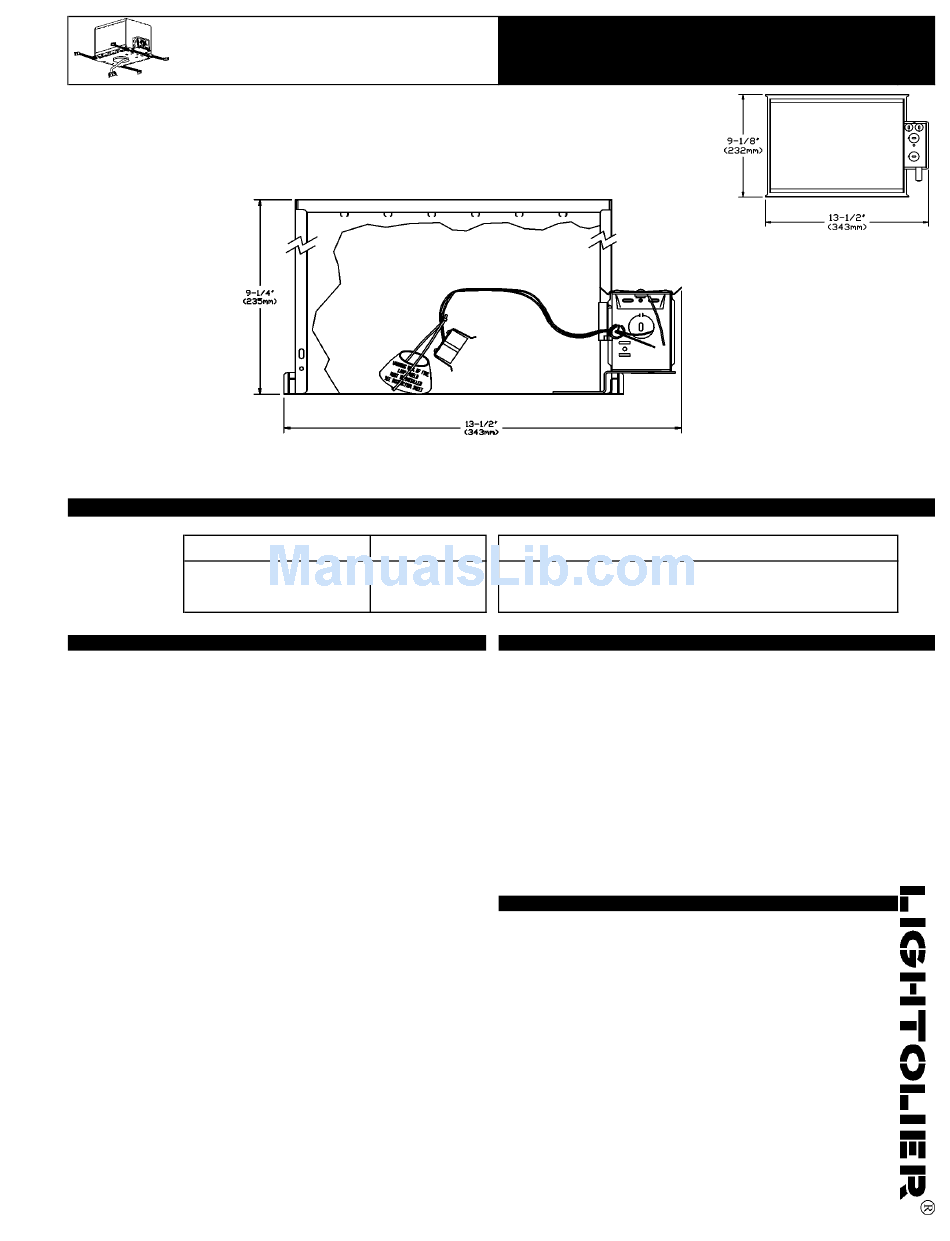

Lightolier Lytecaster 302ESICX Specification

POWER PACK
Features
Mounting Frame : 20ga. galvanized steel. Four slots are positioned 90º
apart to simplify alignment.
Insulated Ceiling Housing : 26ga. galvanized steel. CSA certified and UL
listed for direct contact with thermal insulation.
Internal thermal cut-out : insures against overheating due to incorrect lamping.
Mounting Bars: (4) 18 ga. galvanized steel. 13" (330mm) long bars extend to
27" (686mm), rotatable and lockable, integral T-bar tabs. Spike detail
eliminates the need of additional nailing.
Mounting Bars Locking Clip : (1) locks mounting bars in place.
Socket : Porcelain body ; Twist and lock (GZ base) Pre-wired with 18 ga. Teflon
250º leads to junction box.
Junction Box : 4"(102mm) x 3"(76mm) x 2"(51mm) 18 ga. galvanized steel .
CSA/UL certified for maximum of 8 No. 12 ga. 90º C through branch circuit
conductors. Integral cable clamp permit attachment of non metallic Loomex
without need of additional connectors. Pry-out knock-outs accept BX cable.
Easy access from both sides with snap-on covers.
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH, IN ANY WAY
THAT WILL NOT ALTER INSTALLED APPEARANCE OR REDUCE FUNCTION AND PERFORMANCE.
Lightolier CFI, 3015 Louis Amos Lachine, (Quebec) H8T 1C4
3 3/4" (95mm) aperture
Line Voltage 120V ES/ESD16
IC Frame-In-Kit
Complete fixture consists of Reflector Trim & Frame-in Kit. Select each separately
CUT-OUT
302ESICX 3 3/4" (95mm)
Lytecaster
Recessed Downlight
REFLECTOR TRIM
Accepts most 3 3/4" (95mm) 300 serie trims ; see Reflector
Trim specification sheets.
Accessories
Mounting Bars Extenders : 1964
20" (508mm) long. Set of 2
Mounting Bar Locking Clips : 0098
To lock mounting bars in place after installation. Set of 12.
Vapor Barrier Extender : VBE300
Polyvinyl Air Vapour Barrier ; to comply with provincial legislation. For all
non Air-Seal frame-In-Kits.
Labels : CSA , UL
Damp or Wet location rated depending on trim used.
03-03
302ESICX
