Lightolier CTS3-8 Specification

Page 1 of 2
Complete ordering instructions below.
Ordering Information
Family Mounting Shielding
CT3 L
CT3 L = Flangeless L = Flush
1
One lamp extends into adjacent fixture by 2-1/2" (6.35cm) in Starter, Joiner and Telescoping fixtures
2
Telescoping fixture ships 85-3/8" (216.85cm), adjustable down to 49-3/8" (125.41cm)
3
EM pack not available in 2-foot or Telescoping fixtures

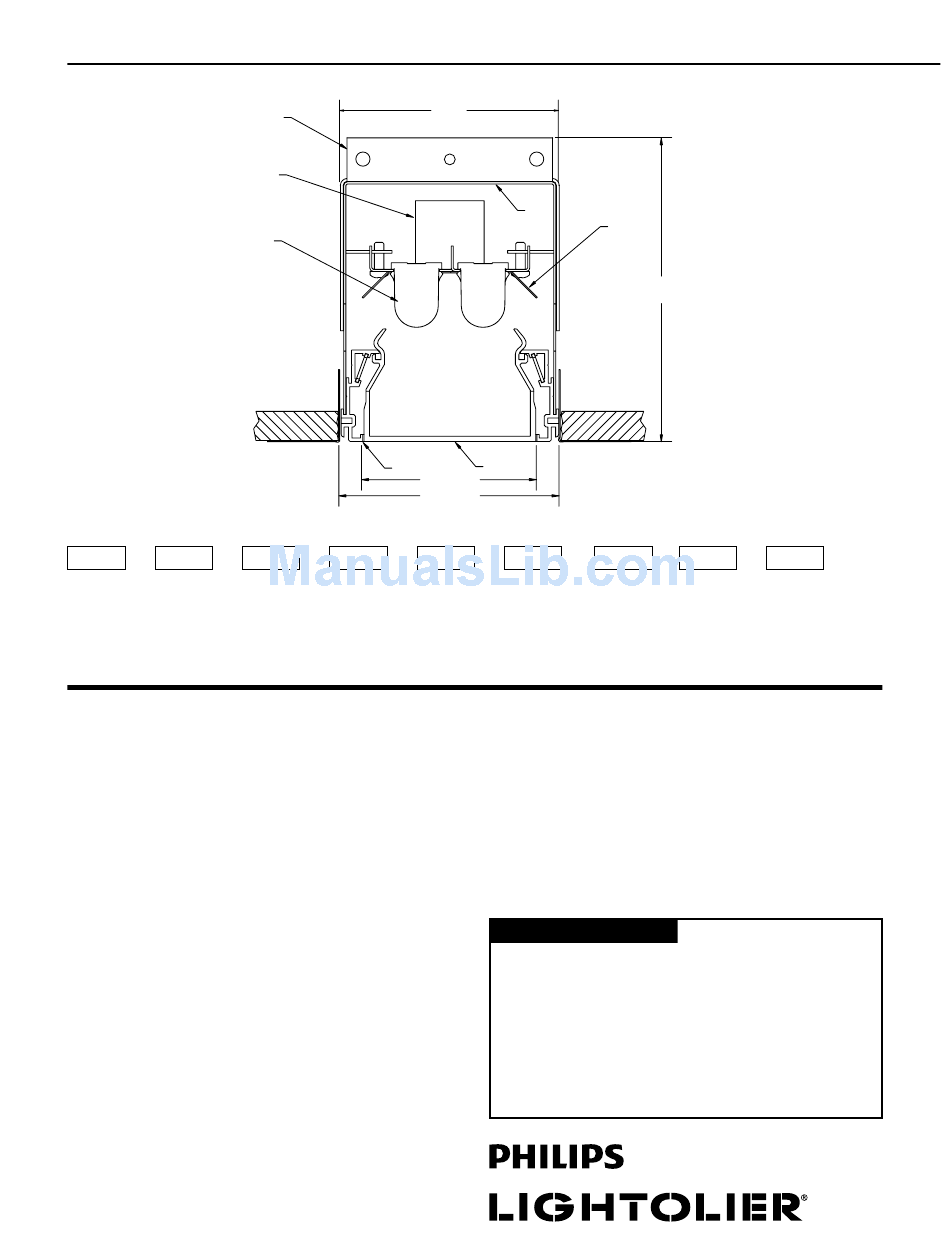

Features
1. Housing: 20 gauge pre-painted steel
2. Bulkhead: 18 gauge galvanized steel
3. Reflector: semi-specular aluminum
4. Trim: none visible, flangeless installation
5. Ballast: program start electronic
6. Lamp: T5 or T5 HO fluorescent
7. Lens: extruded frosted acrylic
Optional Extended Continuous Length Lens shown on page 2.
Mounting
Housing is suspended by hanger wires by others.
Optional factory provided Quick-Draw Installation System shown on page 2.
Electrical
Electronic Ballast: Programmed start, 3 conductor, 12 gauge wire.
Color-coded quick connectors allow easy connection for modular fixtures. T5HO
lamps are dimmed with Advance Mark 10. T5 standard output lamps are dimmed
with ULT Super Dim. Use compatible dimmers and feed wires. Factory installed
ballast disconnect allows the ballast to be disconnected from and reconnected to
incoming power under load without turning the entire circuit off.
Emergency Battery Pack: 450 Lumens @ 90 minimum.
Labels
UL, cUL and IBEW
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group •
3
2
(9.53cm)
5
6
4
3" (7.62cm)
4" (10.16cm)
Configuration Output
L C
C = 2 Lamp H = High
1
Lens Output
S = Standard
H1107
Lighting Systems
Central Trough System 2-Light T5 Per Section
/ "
3
4
1
3
7
Length (nom.) Housing
2 = 2-foot U = Indiv. Unit
4 = 4-foot S = Starter
8 = 8-foot J = Joiner
T = Telescoping
Ordering Instructions
Individual Fixtures:
1. Order number of INDIVIDUAL UNITS required.
Continuous Rows:
1. Determine run length
2. Order one Starter fixture
3. Order one Telescoping fixture*
4. Order remainder of Joiner fixtures
* For best two-lamp effect, use Telescoping fixture at shortest length possible.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
CTS3-8
5 / " (13.34cm)
1
4
Voltage Option
1 = 120V E = EM Pack
2 = 277V T = Tandem Switch
2 = Dual Switch
4 = 4 Through Wires
2
5 = 5 Through Wires
D = Dimming
Type:
3
