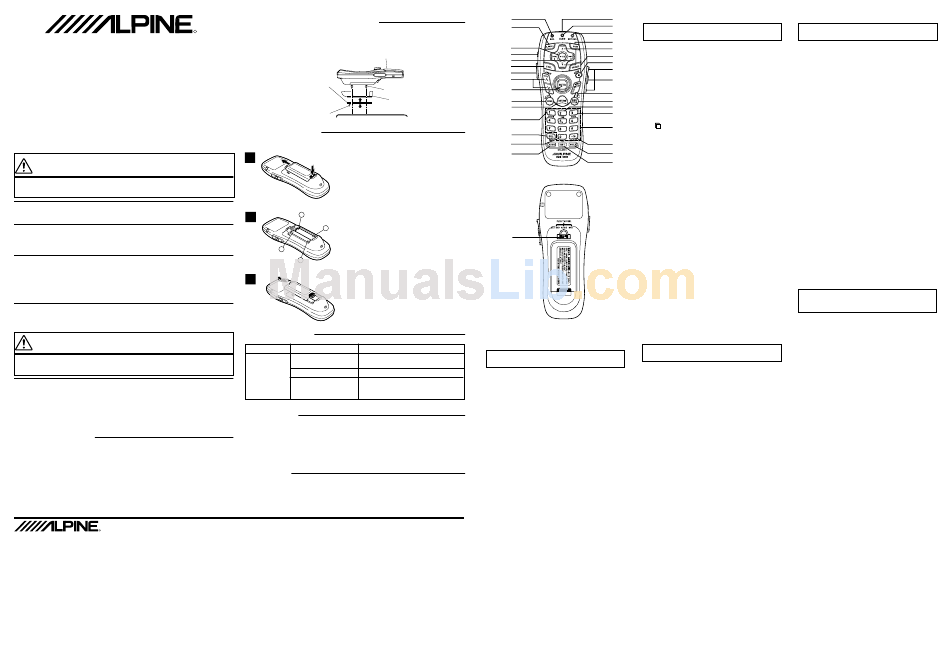

Alpine RUE-4191 Owner's Manual

RUE-4191

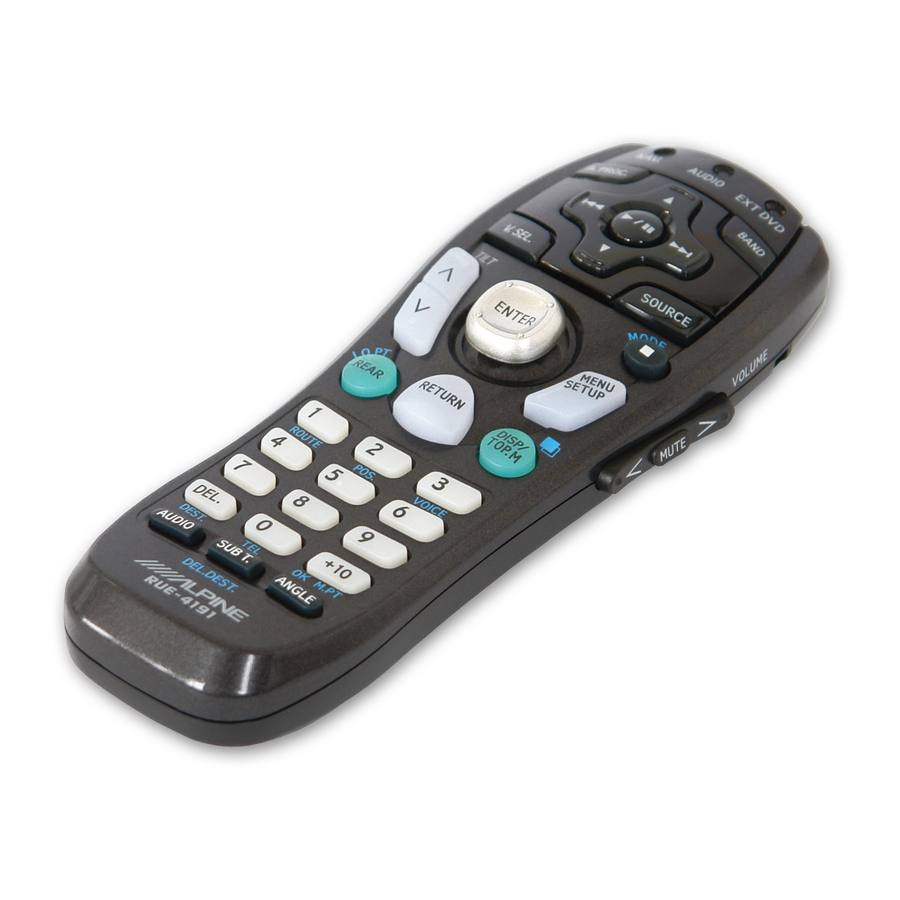

Universal Remote Controller
Owner's Manual

WARNING

This symbol means important instructions. Failure to heed them
can result in serious injury or death.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed, consult a physician
immediately.
DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM
SAFELY DRIVING YOUR VEHICLE.
Any function that requires your prolonged attention should only be performed after
coming to a complete stop. Always stop the vehicle in a safe location before
performing these functions. Failure to do so may result in an accident.
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE
WHILE DRIVING.
Failure to do so may result in an accident.
CAUTION
This symbol means important instructions. Failure to heed them
can result in injury or material property damage.
DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE CORRECT
BATTERY POLARITY.
When inserting the batteries, be sure to observe proper polarity (+ and –) as
instructed. Rupture or chemical leakage from the battery may cause fire or personal
injury.

Handling Precautions

Do not drop or apply shock to the unit. It may get permanently damaged.
Keep the unit away from water and moisture, direct sun and heat, and excessive dust.
Never use scouring pads, steel wool, abrasive powders or harsh chemical agents,
such as lye solution, for cleaning.
Clean with a soft, lint-free cloth or cotton swab slightly dampened with a mild solution
of detergent and water.
Do not operate this unit in a manner that could distract you from driving safely.
R
ALPINE ELECTRONICS, INC.
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
Tokyo office: 1-1-8 Nishi Gotanda,
6-8 Fiveways Boulevarde Keysborough,
Shinagawa-ku, Tokyo 141-8501, Japan
Tel.: (03) 3494-1101
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
Kreuzerkamp 7, 40878 Ratingen, Germany
California 90501, U.S.A.
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
Viale C. Colombo 8, 20090 Trezzano Sul
7300 Warden Ave., Suite 203, Markham,
Ontario L3R 9Z6, Canada
Tel.: 1-800-ALPINE-1 (1-800-257-4631)

Installation of Remote Control Holder

• Do not leave the remote control mounted on the holder, if it is direct sunlight.
R
Remove the remote control from the holder and put it in the glove compartment.
• If double-sided adhesive tape cannot install the holder securely, use screws.
Remote Control
Double-Sided
Adhesive Tape
(Before attaching
the tape, make sure
the mounting
locations are free
from dust or dirt)
Protective Paper
Console Box etc.

Battery Replacement

Applicable battery: Use two "AAA" sized dry batteries or equivalent.
Opening the battery cover.
1
Push on the cover and slide it as indicated by the
arrows then the cover will be removed.
−
Replacing the batteries.
2
Remove the old batteries. Insert new ones
+ matching the (+) and (–) polarities as shown in the
diagram inside the remote control.
+
−
3
Closing the cover.
Push the cover in the arrow direction until a click
is heard.

In Case of Difficulty

Problem Cause
Remote Control Reverse placement of Place the battery correctly into its cradle
battery. in the compartment.
Inoperative.
Dead battery. Replace the battery with a new one.
Remote Control not Point the remote control directly toward
pointed toward the head
your head unit or monitor.
unit or monitor.

Specifications

Battery Type ....................................................................................... AAA size batteries
Battery Quantity ............................................................................................................ 2
Dimensions (W × H × D) ................................................................. 56 × 142.5 × 37 mm
Weight (without battery) ............................................................................. 72 gr (2.6 oz)

Accessories

Battery (AAA) ................................................................................................................ 2
Remote Control Holder ............................................................................................ 1 set
Double-Sided Adhesive Tape .................................................................................. 1 set
Screw ............................................................................................................................ 2
ALPINE ELECTRONICS FRANCE S.A.R.L.
98, Rue de la Belle Etoile, Z.I. Paris Nord Il,
B.P. 50016 95945 Roissy
Victoria 3173, Australia
Charles de Gaulle Cedex, France
Tel.: (03) 9769-0000
Tel.: 01-48 63 89 89
ALPINE ELECTRONICS GmbH
ALPINE ELECTRONICS OF U.K., LTD.
13 Tanners Drive, Blakelands,
Tel.: 02102-45 50
Milton Keynes MK14 5BU, U.K.
ALPINE ITALIA S.p.A.
Tel.: 01908-61 15 56
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Naviglio (MI), Italy
Portal de Gamarra 36, Pabellón 32
Tel.: 02-48 47 81
01013 Vitoria (Alava)-APDO 133, Spain
Tel.: 945-283588
~
+
,
-
.
/
:
;
Reinforcing Screws <
Remote Control Holder
=
>
?
@
[
\
]

Head Unit Control Mode

Solution
When operating the Head Unit, set the EXT DVD/
AUDIO/NAV. Switch to the "AUDIO" side.
1 Remote Control Transmitter
2 Status indicator for AUDIO mode
3 —
4 BAND button
5 Radio mode: Preset Selection
Changer mode: Disc Selection
MP3 mode: Folder Select
Tape mode: Programme Sensor
6 SOURCE button
7 —
8 VOLUME UP/DOWN button
9 MUTE button
(2-1/4" × 5-5/8" × 1-7/16")
! —
" —
# —
$ —
% —
& —
( —
) —
~ —
+ A.PROC. button
, PLAY/PAUSE button
- Power ON/OFF button
. Radio mode: SEEK UP/DOWN
CD/MD/Changer mode: Music Sensor,
BW/FF (press and hold)
Tape mode: REW/FF
/ —
: LIGHT Button for Remote Controller
; Display Angle UP/DOWN button
< —
= —
> —
? —
@ —
[ —
\ —
] EXT DVD/AUDIO/NAV. Switch
TV/MONI. button (Push)
Note: Depending on the unit, some operations cannot
68P20877Y89-O
be performed. For details, see the Owner's
Printed in China (Y)
Manual for the unit.

Map/Arrow type Navigation Control Mode

1
2
When operating the navigation, set the EXT DVD/
3
AUDIO/NAV. Switch to the "NAV." side.
4
1 Remote Control Transmitter
5
2 —
6
3 —
7
4 —
8
5 —
6 —
9
7 MODE button
8 VOLUME UP/DOWN button
!
(When connected with the Ai-NET Head Unit)
"
9 MUTE button
#
$ (When connected with the Ai-NET Head Unit)
! MENU button
"
button (MAP Type only)
%
# POS. button
$ VOICE button
&
% Numeric Keypad
& OK/M.PT button
(
( —
)
) DEL. DEST. button
~ Status indicator for NAV. mode
+ —
, —
- Power ON/OFF button
. —
/ —
: LIGHT button for Remote Controller
; Zoom (Wide/Detail) button (Map Type only)
< Joystick/ENTER button
= LO.PT button
> RETURN button
? ROUTE button
@ DEL./DEST. button
[ TEL. button (Map Type only)
\ —
] EXT DVD/AUDIO/NAV. Switch
TV/MONI. button (Push)
Notes:
• Depending on the unit, some operations cannot be
performed. For details, see the Owner's Manual for
the unit.
• After pressing the MODE button, press the following
buttons while the status indicator is blinking:
Numeric Keypad (0 to 9). DEL. button, OK button

AV Head Unit Control Mode

When operating the AV Head Unit, set the EXT
DVD/AUDIO/NAV. Switch to the "AUDIO" side.
1 Remote Control Transmitter
2 Status indicator for AUDIO mode
3 —
4 BAND button
5 Radio mode: Preset Selection
Changer mode: Disc Selection
6 SOURCE button
7 —
8 VOLUME UP/DOWN, Audio Adjust button
9 MUTE button
! —
" —
# —
$ —
% Function button (1 to 7)
& —
( —
) —
~ —
+ A.PROC. button
, Audio mode Selection (VOL./BASS/TRE/BAL/
FAD)
Press and hold for 2 seconds to LOUD ON/OFF
- Power ON/OFF button
. Radio mode: SEEK UP/DOWN
CD/MD/Changer mode: Music Sensor,
BW/FF (press and hold)
/ V.SEL. button
: LIGHT button for Remote Controller
; Display Angle UP/DOWN button
< —
= —
> —
? —
@ —
[ —
\ —
] EXT DVD/AUDIO/NAV. Switch
TV/MONI. button (Push)
Note: Depending on the unit, some operations cannot
be performed. For details, see the Owner's
Manual for the unit.

TV/Monitor Control Mode

When controlling the Monitor, press the EXT DVD/
AUDIO/NAV. Switch to activate the TV/MONI. mode.
Check which TV Tuner or Monitor functions corre-
sponds to which buttons on the remote control and
attach the appropriate seal (supplied).
Note: Depending on the unit, some operations cannot
be performed. For details, see the Owner's
Manual for the unit.
DVD Player/DVD Changer
Control Mode
When operating the External DVD Player/DVD
Changer, set the EXT DVD/AUDIO/NAV. Switch to
the "EXT DVD" side.
1 Remote Control Transmitter
2 —
3 Status indicator for EXT DVD mode
4 —
5 DVD Changer mode: Disc Selection
6 Audio SOURCE button
(When connected with the Ai-NET Head Unit)
7 L (STOP) button
8 VOLUME UP/DOWN
(When connected with the Ai-NET Head Unit)
9 MUTE button (When connected with the
Ai-NET Head Unit)
! MENU button
Press and hold for 2 seconds to display the
setup menu.
" Searching by Title/Chapter/elapsed time
Press and hold for 2 seconds to display the DVD
menu/Title menu.
# —
$ —
% Numeric Keypad
& —
( ANGLE button
) SUB T. (Subtitle) button
Press and hold this for 2 seconds to turn the
subtitles ON and OFF.
~ —
+ A.PROC. button
(When connected with the Digital Audio Processor)
, Playback,
Press and hold for 2 seconds to playback the slow
motion.
- Power ON/OFF button
. Chapters and tracks skip
Press and hold for 2 seconds to BW/FF.
/ —
: LIGHT button for Remote Controller
; Display angle UP/DOWN button
(When connected with the Ai-NET Head Unit)
< Joystick/ENTER button
= —
> RETURN button
? —
@ —
[ —
\ AUDIO button
] EXT DVD/AUDIO/NAV. Switch
TV/MONI. button (Push)
Note: Depending on the unit, some operations cannot
be performed. For details, see the Owner's
Manual for the unit.
