Alpine RUE-4190 Owner's Manual

RUE-4190

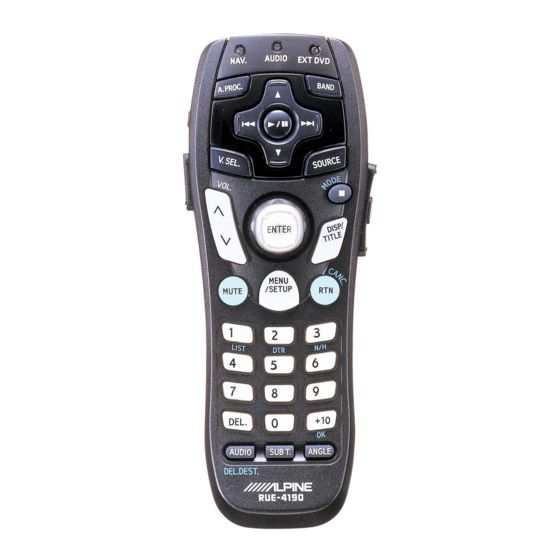

Universal Remote Controller
Owner's Manual
WARNING
This symbol means important instructions.
Failure to heed them can result in serious injury
or death.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE
REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR
ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.
Any function that requires your prolonged attention should
only be performed after coming to a complete stop. Always
stop the vehicle in a safe location before performing these
functions. Failure to do so may result in an accident.
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR
OUTSIDE NOISE WHILE DRIVING.
Failure to do so may result in an accident.
CAUTION
R
This symbol means important instructions.
Failure to heed them can result in injury or
material property damage.
DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT
WITH THE CORRECT BATTERY POLARITY.
When inserting the batteries, be sure to observe proper
polarity (+ and –) as instructed. Rupture or chemical leakage
from the battery may cause fire or personal injury.
Handling Precautions
Do not drop or apply shock to the unit. It may get
permanently damaged.
Keep the unit away from water and moisture, direct sun
and heat, and excessive dust.
Never use scouring pads, steel wool, abrasive powders
or harsh chemical agents, such as lye solution, for
cleaning.
Clean with a soft, lint-free cloth or cotton swab slightly
dampened with a mild solution of detergent and water.
Do not operate this unit in a manner that could distract
you from driving safely.
Installation of Remote Control Holder
• Do not leave the remote control mounted on the
holder, if it is direct sunlight. Remove the remote
control from the holder and put it in the glove compart-
ment.
• If double-sided adhesive tape cannot install the holder
securely, use screws.
Remote Control
Double-Sided
Adhesive Tape
(Before attaching the
tape, make sure the
mounting locations are
free from dust or dirt)
Protective
Paper
Console Box etc.
Battery Replacement
Applicable battery: Use two "AAA" sized dry batteries or equivalent.
1
Opening the battery cover.
Push on the cover and slide it as
indicated by the arrows then the cover
will be removed.
In Case of Difficulty
Problem Cause
Remote Reverse
Control placement of
Inoperative. battery.
Dead battery.
Remote Control
not pointed
toward the head
unit or monitor.
ALPINE ELECTRONICS, INC.
Reinforcing Screws
Tokyo office: 1-1-8 Nishi Gotanda,
Remote Control
Shinagawa-ku, Tokyo 141-8501, Japan
Holder
Tel.: (03) 3494-1101
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
7300 Warden Ave., Suite 203, Markham,
Ontario L3R 9Z6, Canada
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
2
−
+
+
−
Replacing the batteries.
Remove the old batteries. Insert new
ones matching the (+) and (–)
polarities as shown in the diagram
inside the remote control.
Specifications
Battery Type ....................................... AAA size batteries
Solution
Battery Quantity ............................................................. 2
Dimensions (W × H × D) .................. 56 × 142.5 × 37 mm
Place the battery correctly
into its cradle in the
compartment.
Weight (without battery) ............................. 72 gr (2.6 oz)
Replace the battery with a
Accessories
new one.
Point the remote control
Battery (AAA) ................................................................. 2
directly toward your head
Remote Control Holder ............................................ 1 set
unit or monitor.
Double-Sided Adhesive Tape .................................. 1 set
Screw ............................................................................. 2
R
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
6-8 Fiveways Boulevarde Keysborough,
Victoria 3173, Australia
Tel.: (03) 9769-0000
ALPINE ELECTRONICS GmbH
Kreuzerkamp 7, 40878 Ratingen, Germany
Tel.: 02102-45 50
ALPINE ITALIA S.p.A.
Viale C. Colombo 8, 20090 Trezzano Sul
Naviglio (MI), Italy
Tel.: 02-48 47 81
3
Closing the cover.
Push the cover in the arrow direction
until a click is heard.
(2-1/4" × 5-5/8" × 1-7/16")
ALPINE ELECTRONICS FRANCE S.A.R.L.
98, Rue de la Belle Etoile, Z.I. Paris Nord Il,
B.P. 50016 95945 Roissy
Charles de Gaulle Cedex, France
Tel.: 01-48 63 89 89
ALPINE ELECTRONICS OF U.K., LTD.
13 Tanners Drive, Blakelands,
Milton Keynes MK14 5BU, U.K.
Tel.: 01908-61 15 56
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal de Gamarra 36, Pabellón 32
01013 Vitoria (Alava)-APDO 133, Spain
Tel.: 945-283588
68P20877Y88-O
Printed in China (Y)
