Clarity C2 User Manual

Dect6.0 amplified big button cordless phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

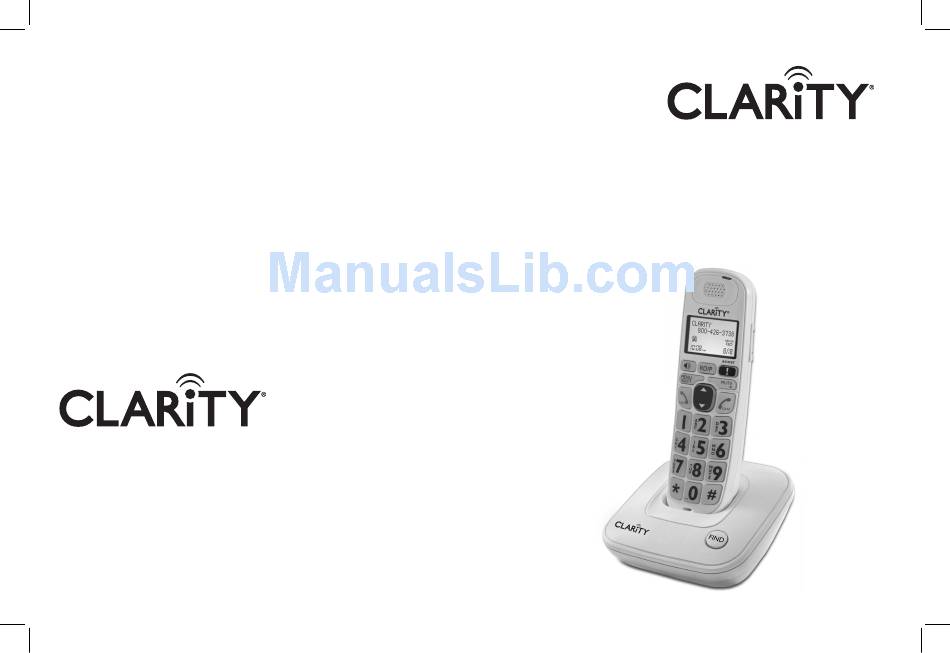

C2™
User Guide
Clarity® DECT6.0 Amplified
Big Button Cordless Phone
Clarity, a Division of Plantronics, Inc.
6131 Preservation Drive
Chattanooga,TN 37416
Tel: 800-426-3738 Fax: 800-325-8871
E-mail: claritycs@plantronics.com
Website: www.clarityproducts.com
©2011 Clarity, a Division of Plantronics, Inc.All rights reserved.
Clarity, C2, C1HS are trademarks or registered trademarks of
Plantronics, Inc.
Rev. B (07-12)
Printed in Mexico

Advertisement

Table of Contents
loading

Related Manuals for Clarity C2

Summary of Contents for Clarity C2

  • Page 1 Clarity, a Division of Plantronics, Inc. 6131 Preservation Drive Chattanooga,TN 37416 Tel: 800-426-3738 Fax: 800-325-8871 E-mail: claritycs@plantronics.com Website: www.clarityproducts.com ©2011 Clarity, a Division of Plantronics, Inc.All rights reserved. Clarity, C2, C1HS are trademarks or registered trademarks of Plantronics, Inc. Rev. B (07-12) Printed in Mexico...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions............4 INSTALLATION Installing your phone.................8 Installing/Charging batteries.............9 OVERVIEW Handset Overview................10 Base Overview..................14 Handsest Screen Icons..............15 Handset Menu Structure..............16 Handset - Text Entry Table.............17 HANDSET AUDIO OPERATION Audio Tone Settings.................18 Audio Boost..................18 Volume Control ................19 Mute....................19 USING YOUR PHONE Make a Call..................20 Temporary tone dialing..............21...
  • Page 3 TABLE OF CONTENTS TABLE OF CONTENTS DIRECTORY Set the Ringer Volume..............36 Add a New Directory Entry............26 Set Key Tone..................36 View a Directory Entry..............26 BASE SETTINGS Search a Directory Entry by Name..........27 Change the dial mode..............37 Edit a Directory Entry..............28 Set the Home Area Code...............37 Delete a Directory Entry...............28 REGISTER/DEREGISTER HANDSETS SPEED DIAL NUMBERS...

  • Page 4: Important Safety Instructions

    If you are not sure of the voltage in your home, consult 21. Discontinue use of product and contact Clarity if the product overheats, has your dealer or local power company.
  • Page 5 NOTE: PLEASE RETAIN A COPY OF PROOF OF PURCHASE FOR YOUR levels. RECORDS. 25. If you experience a skin irritation after using this product, discontinue use and contact Clarity. Location BATTERY SAFETY INSTRUCTIONS For maximum coverage and reduce the interference, here are some guidelines you should consider when you place the base unit: Dispose of used batteries according to the instructions.

  • Page 6: Installing Your Phone

    INSTALLING YOUR PHONE INSTALLING/CHARGING BATTERIES Connecting the base station 1) Slide out the battery compartment cover. 1) Plug the power supply & line cord into the base station. 2) Place the two batteries as indicated. Follow the polarity. 2) Plug the other end of power supply & line cord into the wall 3) Slide the battery compartment cover back.

  • Page 7: Handset Overview

    • In idle mode, press repeatedly to view the last numbers dialed • While entering numbers, press and hold to insert a dialing pause 2. AUDIO BOOST During a call, press to enhance the clarity and loudness of your caller’s voice. 3. MUTE / X (REMOVE) •...
  • Page 8 HANDSET OVERVIEW HANDSET OVERVIEW 6. VOLUME DOWN / CALL LOG / SCROLL DOWN 11. SPEAKER (on/off) • In menu mode: Press to scroll down the menu items. • In idle / pre-dial mode: Press to make a call with the •...

  • Page 9: Base Overview

    BASE OVERVIEW HANDSET SCREEN ICONS The screen display gives you information on the current status of the telephone. The speakerphone is turned on. While reviewing the call list history, missed calls that have not been reviewed. The ringer is switched off. New voicemail received from the telephone service provider (network subscription is required).

  • Page 10: Handset Menu Structure

    HANDSET MENU STRUCTURE HANDSET - TEXT ENTRY TABLE The following table shows you where each letter and punctuation character can be found. This will be helpful when storing a name in the directory. MENU STRUCTURE In editing mode, a cursor is displayed to indicate the current text entry position.

  • Page 11: Handset Audio Operation

    Note: The handset earpiece volume setting (1-5) and speakerphone volume PROCEED WITH CARE. setting (1-6) are independent. Use the audio boost feature to enhance the clarity and loudness of your caller’s voice on the handset earpiece . Mute To turn on this feature: Use the mute function to turn off the microphone while on a call.

  • Page 12: Using Your Phone

    USING YOUR PHONE USING YOUR PHONE Make a Call 6. Call from the Redial List In idle mode, press <REDIAL/PAUSE> to access the redial list. 1. Pre-dialing Press <UP> or <DOWN> to select the desired redial number. Press <TALK ON/FLASH> or <SPEAKER> to dial out to the selected Enter the phone number first, then press <TALK ON/FLASH>...

  • Page 13: Chain Dialing

    USING YOUR PHONE USING YOUR PHONE Redial list Chain dialing You can redial up to 20 of the last numbers called. If you have stored a name This feature allows you to initiate a dialing sequence from numbers stored in in the directory to go with the number, the name will be displayed instead.

  • Page 14: Find The Handset

    USING YOUR PHONE USING YOUR PHONE Find the Handset Transfer an External Call from Handset to Handset You can use the handset locator feature to find misplaced handsets. During an external call: 1. Press <MENU/SELECT>, then <UP/DOWN> to select Intercom. To start the paging tone: 2.

  • Page 15: Add A New Directory Entry

    DIRECTORY DIRECTORY Search a Directory Entry by Name Your phone can store up to 100 directory entries with names and numbers. Each directory entry can have a maximum of 30 digits for the phone number 1. In idle mode, press <UP> to show the first entry in the directory. and 15 characters for the name.

  • Page 16: Edit A Directory Entry

    DIRECTORY SPEED DIAL NUMBERS Edit a Directory Entry This telephone has 10 speed dial locations where you can assign telephone numbers from the directory you wish to dial numbers by pressing and holding In idle mode, press <UP> to access the directory. the respective digits keys from idle mode.

  • Page 17: Delete A Speed Dial Number

    SPEED DIAL NUMBERS CALLER ID DISPLAY Note: If the speed dial location you selected is empty, the screen shows the CALLER ID DISPLAY (NETWORK DEPENDENT) speed dial list instead. This product supports caller ID services offered by most telephone service Delete a Speed Dial Number providers.

  • Page 18: Reasons For Missing Cid Information

    CALLER ID DISPLAY CALLER ID DISPLAY For example, if a caller number is displayed as 123-456-7890, the various Reasons for missing CID information • formats will be: • 456-7890 Screen Reason • 1-456-7890 message • 123-456-7890 Private name The caller prefers not to show the name •...

  • Page 19: Handset Settings

    HANDSET SETTINGS HANDSET SETTINGS Your phone comes with a selection of settings that you can change to 4. Press <MENU/SELECT> to turn the voicemail indication off. A personalize your phone the way you like it to work. confirmation tone sounds. -OR- Press <TALK OFF/CLEAR>...

  • Page 20: Set The Ringer Tone

    HANDSET SETTINGS BASE SETTINGS Set the Ringer Tone Change the Dial Mode The default dialing mode is suitable for your country and network operator. It 1. Press <MENU/ SELECT>, then <UP/DOWN> to select Ringers. is unlikely that you should need to change this setting unless advised to do so. 2.

  • Page 21: Register/Deregister Handsets

    REGISTER/DEREGISTER HANDSETS REGISTER/DEREGISTER HANDSETS Your telephone can support up to five cordless handsets. The additional If the registration is not successful, the handset screen shows Registration handset(s) needs to register with the telephone base before use - C1HS™. You failed. Please start again from step 1 above. must register each additional handset separately.

  • Page 22: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING I cannot dial out If you have difficulty with your telephone, please try the suggestions below. First try all the suggestions in the item I cannot get a dial tone. • Make sure you have a dial tone before dialing. The cordless handset may My telephone doesn’t work at all •...
  • Page 23 TROUBLESHOOTING TROUBLESHOOTING "Out of range or no pwr at base" appears on my cordless My cordless handset does not ring when I receive a call handset Make sure that the ringer is not turned off. • Ensure that the telephone base is powered up. Make sure the telephone line cord is plugged securely into the telephone •...
  • Page 24 • from your telephone service provider for this feature to work on your telephone..for purchasing this Clarity amplified telephone. We hope you will Your caller must be calling from an area that supports caller ID. • enjoy using your new system.

  • Page 25: Technical Information

    TECHNICAL INFORMATION Amplified dB Level: 40dB Dimensions • Handset Size: 7” x2 1/4” x 1 1/2” (H x W x D) • Base Size: 2 1/4” x 4 1/2” x 4 1/4” (H x W x D) Weight • Handset Weight: 6.125 oz. (with batteries) •...
