Summary of Contents for Clarity C35
-

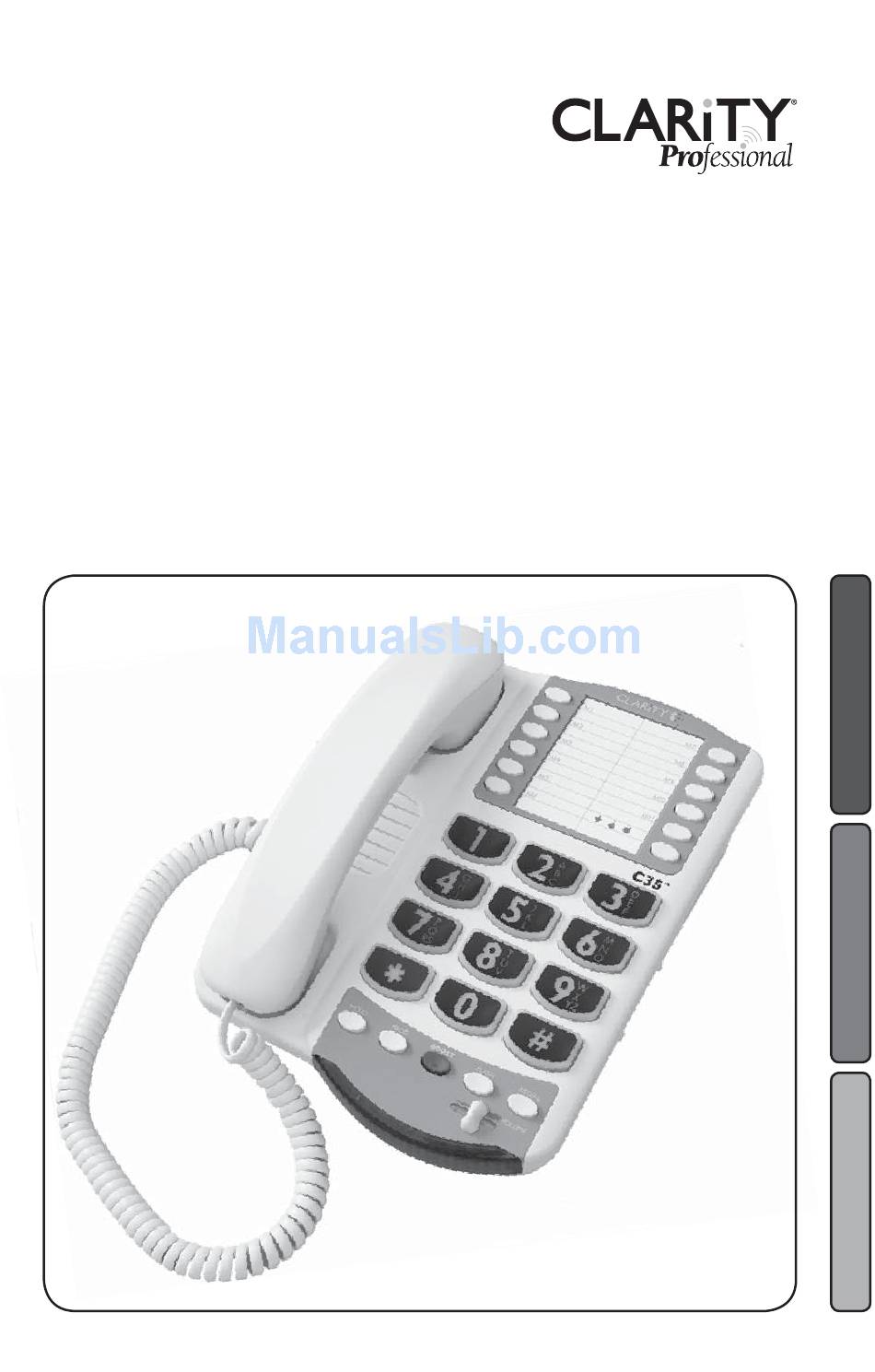

Page 1: User Guide
User Guide ™ Amplifi ed Telephone Ñ Ç... -
Page 2: Table Of Contents
Introduction ..................3 Parts Checklist .................. 4 Quick Reference Guide ..............5 Connecting the phone ..............7 Introduction to Clarity Power ............ 8 Clarity Power Boost ..............8 Getting Started Installing backup batteries ............9 Desktop and Wall Mount Installations ........10 Placing and receiving calls ............ -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the Clarity C35 Amplifi ed Telephone. Operating Instructions and the associated Quick Reference Guide will provide you with the information you need to use your C35 effectively, easily and safely. Read this manual thoroughly before using your telephone. -
Page 4: Parts Checklist
CONTENTS & PARTS CHECKLIST BOOST VOLUME Handset Base unit Handset coil cord User guide Telephone line cord Mounting bracket 4 AA batteries... -
Page 5: Quick Reference Guide
Quick Reference Guide FEATURES 1 Phone Number Directory 9 BOOST Indicator 2 Memory Button 10 Hold Indicator 3 Redial Button 11 Program Button 4 Flash Button 12 Hold Button 5 Volume Slider 6 Low Battery Indicator 7 Visual Ringer 8 Boost Button BOOST VOLUME... - Page 6 Quick Reference Guide FEATURES 1 Ringer Volume Switch 2 Pulse/Tone Switch 3 Phone Line Connection SIDE VIEW DIAL Off Lo BACK VIEW LINE...
-
Page 7: Connecting The Phone
Quick Reference Guide HOW TO CONNECT THE C35 PHONE FOR DESKTOP USE 1. Install the 4 AA batteries. 2. Connect one end of the telephone line cord to the “Line” jack on the back of the C35 and the other end to the phone outlet on your wall. 3. -
Page 8: Introduction To Clarity Power
The Clarity C35 has a maximum amplifi cation level of 40dB louder than a regular telephone when the included batteries are inserted. This combined with Clarity Power enhances the sounds being heard through the telephone line, resulting in comfortable and enjoyable conversations. -
Page 9: Getting Started
GETTING STARTED There are four initial steps involved in setting up your C35 1. Insert four AA alkaline batteries for maximum amplifi - cation. See below. 2. Decide if you want the phone to sit on a desk or hang on the wall. -
Page 10: Desktop And Wall Mount Installations
GETTING STARTED Connecting your Telephone 1. Carefully remove your telephone from its box. If there is any visible damage, do not attempt to operate this equipment. Return it to the place of purchase. 2. Check to be sure that you have all items that come with your C35 telephone. - Page 11 GETTING STARTED 3. Set the TONE/PULSE switch located on the right side of the base to correct dialing mode. Please check with your local telephone company if uncertain of the type of service. 4. Lift the handset and listen for a dial tone. The phone is ready to use.
- Page 12 GETTING STARTED 4. Plug the fl at telephone line cord into the wall plate jack, then align the mounting bracket’s keyhole slots with the wall plate studs and slide the base of the phone downward to secure it on the wall. See Figure 6.
-
Page 13: Placing And Receiving Calls
Placing a Call 1. Lift the handset and dial the number you wish to call. 2. Press the BOOST button and turn the Clarity Power slider to adjust volume. The BOOST button will illumi- nate to indicate amplifi cation is on. -
Page 14: Telephone Operations
TELEPHONE OPERATIONS Dialing a Memory Location 1. Pick up the handset. 2. Press the memory button where the desired number has been stored. 3. The call will automatically dial. Flash Flash is a feature that enables you to answer a call if you have call waiting. -
Page 15: Notifi Cation Options
TELEPHONE OPERATIONS extension phone. NOTIFICATION OPTIONS Ringer Volume Ringer Volume can be set to one of three (3) positions Off Lo by pressing the RINGER VOLUME UP or DOWN switch located on the right side of the telephone. See Figure 14. Figure 14 C35 Low Battery Indicator BOOST... - Page 16 PHONE INDICATOR LIGHTS BOOST VOLUME HOLD BOOST Visual Ringer Low Battery Indicator Light Indicator Indicator The visual ringer will This light will This light will fl ash to alert of an This light will illumi- illuminate when the illuminate when the incoming call.
-
Page 17: Troubleshooting
TROUBLESHOOTING No Dial Tone/Phone Will Not Operate 1. Check all phone cords and connections. Make sure they are plugged in securely. 2. Plug unit into a different phone jack to help determine if the diffi culty is with the phone or the phone jack. 3. - Page 18 TROUBLESHOOTING Unable To Hear Phone Ringer 1. Too many phone or phone devices on a line may cause your phone to not ring. Disconnect one (1) or two (2) of the devices to see if the problem is eliminated. If not, contact your local phone company for load guide lines.
-
Page 19: Technical Specifi Cations
This phone uses four (4) AA batteries. Still Not Working? If, after going through this checklist, the C35 is still not functioning properly, call Clarity at 1-800-426-3738. TECHNICAL SPECIFICATIONS Amplifi ed dB Level 40dB/118 dBSPL Dimensions Size: 9 1/2”... - Page 20 IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, 9. Operate this telephone using the basic safety precautions should always electrical voltage as stated on the be followed to reduce the risk of fi re, base unit or the owner’s manual. If electric shock and injury to persons you are not sure of the voltage in including the following:...
-
Page 21: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS operate normally by following 2. Do not dispose of the battery in a the operating instructions. fi re as it may explode. Check with Adjust only those controls that local codes for possible special are covered by the operating disposal instructions. -
Page 22: Fcc Requirements And Regulations
The REN is used to determine the Clarity, 1-800-552-3368. If the equip- number of devices that may be connected ment is causing harm to the telephone to a telephone line. Excessive RENs on a... - Page 23 REGULATORY COMPLIANCE i) If your home has specially wired alarm This equipment generates, uses and can equipment connected to the telephone radiate radio frequency energy and, if line, ensure the installation of this tele- not installed and used in accordance phone equipment does not disable your with the instructions, may cause harmful alarm equipment.
- Page 24 The party responsible for tions. Repairs to certifi ed equipment regulatory compliance: should be made by an authorized Clarity, A Division of Plantronics, Inc. Canadian maintenance facility desig- 4289 Bonny Oaks Drive, Suite 106 nated by the supplier. Chattanooga, TN 37406...
-
Page 25: Warranty And Service
Incidental or date of original purchase (“Warranty Consequential Damages Period”). The obligation of Clarity under this warranty shall be at Clarity‘s Neither Clarity nor your retail dealer or option, without charge, of any part or selling distributors has any responsibil-... - Page 26 Include the following listed below. information: In the United States 1. A proof-of-purchase indicating model number and date of Clarity Service Center purchase. 4289 Bonny Oaks Drive, Suite 106 2. Bill-to address. Chattanooga, Tennessee 37406 3. Ship-to address. Tel: (423) 622-7793 or 4.
