D724™
D722™

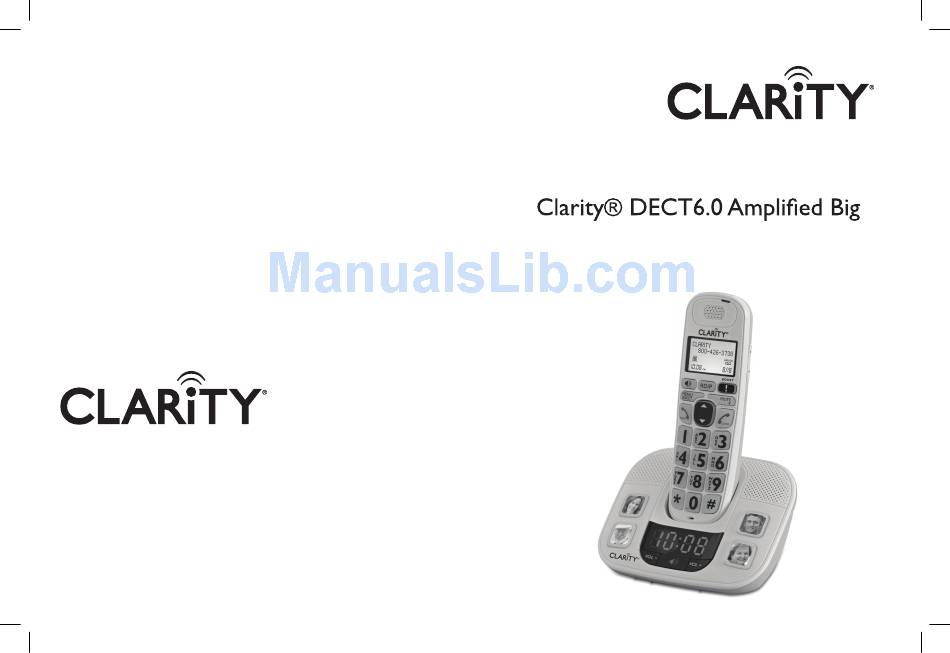

Button Cordless Photo Phone
User Guide
Advertisement
Table of Contents
Related Manuals for Clarity D722
Summary of Contents for Clarity D722
- Page 1 4289 Bonny Oaks Drive, Chattanooga,TN 37406 Tel: 800-426-3738 Fax: 800-325-8871 E-mail: claritycs@plantronics.com Website: www.clarityproducts.com ©2011 Clarity, a Division of Plantronics, Inc.All rights reserved. Clarity, D724, D722, D702HS, D704HS are trademarks or registered trademarks of Plantronics, Inc. Rev.A (04-08) PRINTED IN CHINA...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions............4 INSTALLATION Installing your phone - Base............8 Installing batteries - Handset............9 OVERVIEW Handset Overview................10 Base Overview..................14 Handsest Screen Icons..............16 Handset Menu Structure..............17 Handset - Text Entry Table.............18 HANDSET AUDIO OPERATIONS Audio Tone Settings.................19 Audio Boost..................19 Audio Volume Settings..............20 Mute....................20 USING YOUR PHONE... - Page 3 TABLE OF CONTENTS TABLE OF CONTENTS DIRECTORY Set the Ringer Volume..............37 Add a New Directory Entry............27 Set Key Tone..................37 View a Directory Entry..............27 BASE SETTINGS Search a Directory Entry by Name..........28 Change the dial mode..............39 Edit a Directory Entry..............28 Set the Home Area Code...............39 Delete a Directory Entry...............29 REGISTER/DEREGISTER HANDSETS SPEED DIAL NUMBERS...
-
Page 4: Important Safety Instructions
If you are not sure of the voltage in your home, consult 21. Discontinue use of product and contact Clarity if the product overheats, has your dealer or local power company. - Page 5 NOTE: PLEASE RETAIN A COPY OF PROOF OF PURCHASE FOR YOUR levels. RECORDS. 25. If you experience a skin irritation after using this product, discontinue use and contact Clarity. Location For maximum coverage and reduce the interference, here are some guidelines BATTERY SAFETY INSTRUCTIONS...
-
Page 6: Installing Your Phone - Base
INSTALLING YOUR PHONE INSTALLING/CHARGING BATTERIES 1) Plug the power supply & line cord into the base station. 1) Slide out the battery compartment cover. 2) Plug the other end of power supply & line cord into the wall 2) Place the two batteries as indicated. Follow the polarity. socket, as shown. -
Page 7: Handset Overview
• In idle mode, press repeatedly to view the last numbers dialed • While entering numbers, press and hold to insert a dialing pause 2. AUDIO BOOST During a call, press to enhance the clarity and loudness of your caller’s voice. 3. MUTE / X (REMOVE) •... - Page 8 HANDSET OVERVIEW HANDSET OVERVIEW 6. VOLUME DOWN / CALL LOG / SCROLL DOWN 11. SPEAKER (on/off) • In menu mode: Press to scroll down the menu items. • In idle / pre-dial mode: Press to make a call with the •...
-
Page 9: Base Overview
BASE OVERVIEW BASE OVERVIEW 2. DIRECT MEMORY 2 (Speed Dial "2") • In idle: press to call number stored in Speed Dial location "2" on your handset. 3. DIRECT MEMORY 3 (Speed Dial "3") • In idle: press to call number stored in Speed Dial location "3" on your handset. -
Page 10: Handsest Screen Icons
HANDSET SCREEN ICONS HANDSET MENU STRUCTURE The screen display gives you information on the current status of the telephone. MENU STRUCTURE In idle mode, press <MENU/SELECT>, then <UP/DOWN> to browse the menu items. Refer to the following for the menu structure. Main The speakerphone is turned on. -
Page 11: Handset - Text Entry Table
PROCEED WITH CARE. 3. Press <MUTE/X> to delete the last character / digit. Use the audio boost feature to enhance the clarity and loudness of your 4. Press and hold <MUTE/X> to delete the entire text string. caller’s voice on the handset earpiece . -
Page 12: Mute
HANDSET AUDIO OPERATIONS USING YOUR PHONE Make a Call Volume Control (earpiece and speakerphone) 1. Pre-dialing During a call: Press <UP/DOWN> to increase or decrease the listening volume. The current Enter the phone number first, then press <TALK ON/FLASH> or setting is shown. -
Page 13: Temporary Tone Dialing
USING YOUR PHONE USING YOUR PHONE 6. Call from the Call Log End a Call In idle mode, press <DOWN> to access the call log. Alternatively, During a call connection on handset, press <TALK OFF/ CLEAR> to end press <MENU/SELECT> to access the call log from the main menu. the call. -
Page 14: Redial List
USING YOUR PHONE USING YOUR PHONE Note: Press <TALK OFF/CLEAR> to exit the directory, call log history or Find the Handset redial list and return to the call without dialing the displayed number. You can use the handset locator feature to find misplaced handsets. To start the paging tone: Redial list Press <FIND>... -
Page 15: Make A 3-Way Conference Call
USING YOUR PHONE DIRECTORY Transfer an External Call from Handset to Handset Your phone can store up to 100 directory entries with names and numbers. Each directory entry can have a maximum of 24 digits for the phone number During an external call: and 15 characters for the name. -
Page 16: Search A Directory Entry By Name
DIRECTORY DIRECTORY Search a Directory Entry by Name Press <MENU/SELECT>, then use the keypad to edit the number if necessary. 1. In idle mode, press <UP> to show the first entry in the directory. Press <MENU/SELECT>, then use the keypad to edit the name if 2. -
Page 17: Speed Dial Numbers
SPEED DIAL NUMBERS SPEED DIAL NUMBERS This telephone has 10 speed dial locations where you can assign telephone Note: If the speed dial location you selected is empty, the screen shows the numbers from the directory you wish to dial numbers by pressing and holding speed dial list instead. -
Page 18: Missed Calls Indicator
CALLER ID DISPLAY CALLER ID DISPLAY CALLER ID DISPLAY (NETWORK DEPENDENT) Reasons for missing caller ID information Screen This product supports caller ID services offered by most telephone service Reason message providers. If you have subscribed to Caller ID service, and provided the identity of the caller is not withheld, the number of the caller will be displayed Private name The caller prefers not to show the name... -
Page 19: Store A Call Log Number Into The Directory
CALLER ID DISPLAY HANDSET SETTINGS Your phone comes with a selection of settings that you can change to For example, if a caller number is displayed as 123-456-7890, the various • personalize your phone the way you like it to work. formats will be: •... -
Page 20: Set Date And Time
HANDSET SETTINGS HANDSET SETTINGS Set the Ringer Tone 4. Press <MENU/SELECT> to turn the voicemail indication off. A confirmation tone sounds. 1. Press <MENU/ SELECT>, then <UP/DOWN> to select Ringers. -OR- 2. Press <MENU/SELECT>, then <UP/DOWN> to select Ringer tone. Press <TALK OFF/CLEAR>... -
Page 21: Base Settings
BASE SETTINGS BASE SETTINGS Program the Direct Memory Keys on base Change the Dial Mode The default dialing mode is suitable for your country and network operator. It There are four direct memory keys on the base, which share the same phone is unlikely that you should need to change this setting unless advised to do so. -
Page 22: Register/Deregister Handsets
REGISTER/DEREGISTER HANDSETS REGISTER/DEREGISTER HANDSETS Your telephone can support up to five cordless handsets. The additional Deregister all handsets handset(s) needs to register with the telephone base before use. You must You can deregister handsets. You may need to deregister your handsets if: register each additional handset separately. -
Page 23: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING I cannot dial out If you have difficulty with your telephone, please try the suggestions below. First try all the suggestions in the item I cannot get a dial tone. • Make sure you have a dial tone before dialing. The cordless handset may My telephone doesn’t work at all •... - Page 24 TROUBLESHOOTING TROUBLESHOOTING "Out of range or no pwr at base" appears on my cordless My cordless handset does not ring when I receive a call handset Make sure that the ringer is not turned off. • Ensure that the telephone base is powered up. Make sure the telephone line cord is plugged securely into the telephone •...
-
Page 25: Additional Handsets
Your telephone has voicemail indication. If New voicemail and • appear on the display, then your telephone has received a signal from ,.. for purchasing this Clarity amplified telephone. We hope you will enjoy using your your telephone service provider that you have a voicemail message new system. -
Page 26: Technical Information
TECHNICAL INFORMATION 30dB • D722™ - 40dB • D724™ - Dimensions • Handset Size: 7” x2 1/4” x 1 1/2” (H x W x D) • Base Size: 3 1/4” x 5 3/4” x 4” (H x W x D) Weight •...
