Byron Home Easy HE-302 Installation Instructions

HOME
easy
RE-INVENTING THE HOME

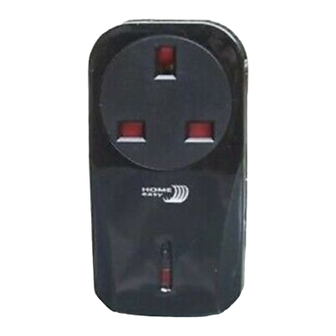

The HE-302 Socket is a expansion unit for
the HomeEasy range of products and is
designed to work with all HomeEasy
products.

Product Operation:

Pairing/Deleting with Remote Control:

Up to Six remote control units can be paired with each Receiver Socket or
Module. To program a socket insert the unit into a plug socket and switch on
the power, now press the "Learn" button. The LED will start to flash, now press
the selected "On" button on the remote control, the LED will stop flashing.
The units are now paired together, you can test this by pressing the selected
"On/Off" button.
Always refer to the original instructions when using with additional products.

Deleting Remote Control:

To delete a remote control that has been paired with a HE-302 receiver socket,
simply press the "Learn" button. The LED will start to blink; press the "Off"
button on the remote control, the LED will blink twice to confirm that the
remote control has been removed from the receiver sockets memory.
HE-302
Additional Remote
Socket
HOME
easy
Learn:
V1.0

Remote Socket reset:

To delete all the remote control units from the memory of the receiver
socket, hold the "Learn" button for more than 6 seconds, the LED will start
to blink continuously. Press a the "Learn" button again, the LED will blink
twice to confirm that all paired remote controls have been deleted from
the receiver sockets memory.

Product Specification:

Remote Control: HE-302
Input: 230V ~50Hz
Range: 30 Metres (Open Distance)
Frequency: 433.92MHz
Max Load: 3000W (Resistive)
Indoor Use Only
Warning: Never Exceed the Product Specification
Contact:
Contact Details:
C H Byron
34, Sherwood Rd
Aston Fields
Bromsgrove
B60 3DR
Helpline: 0845 2301 231
Tel: 0845 2301231
R&TTE
Fax: 01527 557701
APPROVED
A
Web: www.chbyron.com
B
DK
E-mail:
FIN
F
D
support@chbyron.com
GR
LT
CH Byron Electrical United Kingdom. www.chbyron.com
