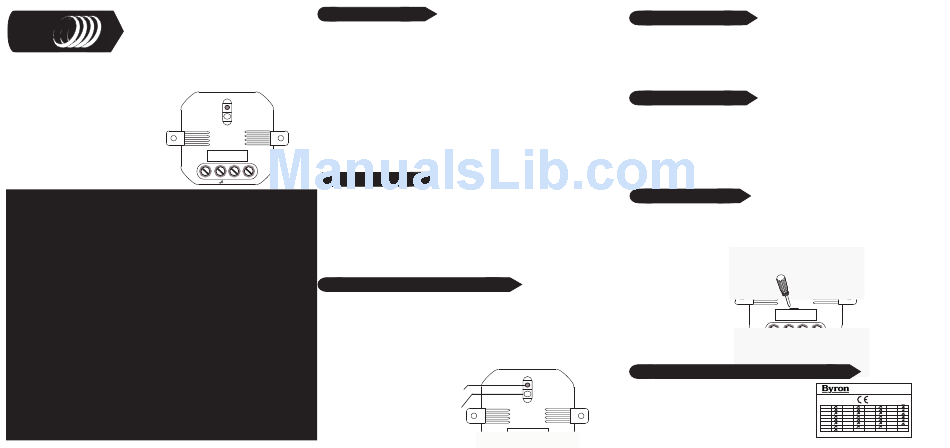

Byron Home Easy HE-304 Installation Instructions

HE-304 1000W
HOME
easy
Ceiling Module
The HomeEasy automation range allows you to individually tailor your lighting
ambience, mood scenes and electrical products in your home or business at
the touch of a button. The system operates by sending wire free signals from
the remote control to the receiver units.
30 Metre Range
Remote On/Off setting
Max Load: 1000W Resistive load
INSTALLATION WARNINGS:
BEFORE COMMENCING INSTALLATION
ISOLATE YOUR MAINS ELECTRIC SUPPLY
Read the instructions care fully before starting the installation process and keep
them for future reference. If you are in any doubt on the installation process,
consult a qualified electrician.
This product should be installed in accordance with the relevant sections of
the building
regulations code, and the current edition of the IEE Wiring Regulations
(BS 7671:Requirements for electrical installations) and appropriate statutory
regulations.
Do not install ceiling receivers on lighting circuits used to supply other
products such as extractor fans and shaver socket outlets.
Do not exceed the Maximum Power Rating of 300W, Incandescent lighting
only
As of1 April 2004, new installations in the UK should be wired using the EU
harmonised colours for the supply conductors:
New colours:
BROWN = Live BLUE = Neutral Earth = Yellow/Green
Old colours:
RED = Live BLACK = Neutral
Electrical installations in bathrooms, kitchens, gardens, floor and heating systems,
swimming pools, saunas and extra-low voltage lighting are classed as special
installations and must be certified by an approved competent electrical contractor
conforming to Part P, requirements of BS 7671:2001 and appropriate statutory
regulations.
V1.0
Product Compatability:
The following lighting types will NOT work with the HE-304 Ceiling Modules:
G23,
CLF,
SLE-PRO,
Single Ended High Pressure Lamps
The HE-304 Ceiling Modules are compatible with the following lighting types:
G9,
PAR36,
PAR20,
GU10,
G4,
MR11
Product Specification:
L N N
Ceiling Receiver Module: HE-304
Warning: Never Exceed the Product Specification
Pairing/Deleting the Remote Control Socket:
Up to Six remote control units can be paired with each receiver module.
To program a receiver module, press and hold the "Learn" button for 3
seconds. The LED will start to flash, now press the selected "ON" button
on the remote control, the LED will stop flashing.
The units are now paired together place your selected electrical product
into the receiver socket, you can test this by pressing the selected
"ON/OFF" button.
Metal Halide High Pressure sodium,
Linear/Compact Fluorescents,
PLE-C Pro,
Strip & Architectural, PAR30,
SES (Candle/Round, PAR38,
GLS BC, GLS ES,
SBC (Candle/Round), K1/9/11/12,
G6.35, MR16,
Input: 230V ~ 50Hz Fused: 5A
Max Load: 1000W Indoor Use Only
(Resistive Load)
Frequency: 433.92MHz
Learn LED:
Learn Button:
Deleting Remote Control:
To delete a remote control that has been paired with a HE-304 receiver
module, simply press the "Learn" button. The LED will start to blink; press the
"Off" button on the remote control, the LED will blink twice to confirm that the
remote control has been removed from the receiver sockets memory.
Ceiling Module Reset:
To delete all the remote control units from the memory of the receiver
module, hold the "Learn" button for more than 6 seconds, the LED will start to
blink continuously. Press the learn button again, the LED will blink twice to
confirm the deletion of all remote controls from the receiver memory.
Changing Fuse:
The HE-304 is fuse protected, to change a fuse:
1. Isolate the mains power supply from the ceiling module
2. Using a small screw driver, remove the fuse holder and replce the fuse with a
new 5A fuse.
3. Replace the fuse holder and reconnect the mains supply
L N N
HelpLine - 0845 2301231
Contact Details:
C H Byron Tel: 0845 2301231
34, Sherwood Rd Fax: 01527 557701
Aston Fields Web: www.chbyron.com
Bromsgrove E-mail:
B60 3DR support@chbyron.com
433MHz
0560
R&TTE
APPROVED
A IRL UK M
B I BG N
DK L CZ SK
FIN NL EST SLO
F P H CH
D E IS PL
GR S LV RO
LT
CH Byron Electrical United Kingdom. www.chbyron.com
