Byron Home Easy HE-307 Installation Instructions

HOME
easy

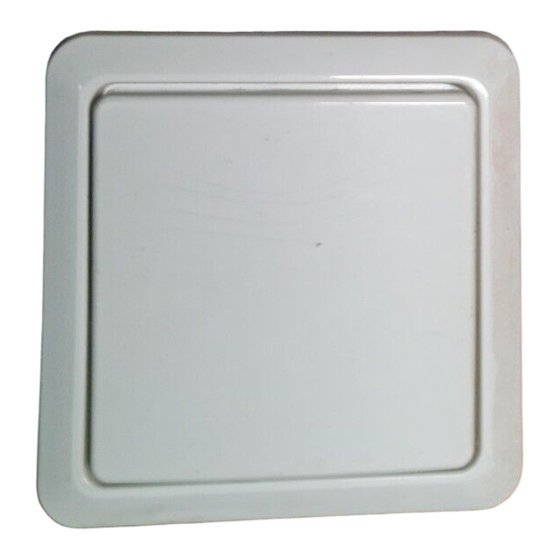

The HE-307and HE-308 Remote Control
light switches are expansion units for
the HomeEasy range of products and
designed to work with all the
HomeEasy receiver sockets and
modules.
Additional HomeEasy receiver products
are required for the HE-307/HE-308 to
work.
Product Operation:
Pairing/Deleting with Remote Control:
Up to Six remote controls can be paired with each Receiver Socket or Module. To
pair the switch and a socket together, press "Learn" button. The LED will start to
flash, now press the selected "ON" button on the remote control, the LED will stop
flashing. The units are now paired together, you can test this by pressing the
selected "On/Off" button.
On/Dim
Off
Always refer to the original instruction when using with additional products
HomeEasy Remote
Control Light Switch
1Gang:
S1: On/Dim
S1: Off
2Gang:
S1: On/Dim
S1: Off
V1.0
Deleting Remote Control:
To delete a remote control that has been paired with a HomeEasy Receiver
socket or module, simply press the "Learn" button. The LED will start to blink;
press the "Off" button on the remote control, the LED will blink twice to
confirm that the remote control has been removed from the receiver sockets
memory.
Remote Socket reset:
To delete all the remote control units from the memory of the Receiver Socket
or module, hold the "Learn" button for more than 6 seconds, the LED will start
to blink continuously. Press the learn button again, the LED will blink twice to
confirm the deletion of all remote controls form the receiver memory.
Dimming: (Compatiable Receivers Only)
To dim a compatible receiver socket or module, switch the receiver on and
then press "On" again. The unit will now start to dim to select the required
level press "On" again.
Changing Battery:
Using a small flat screwdriver remove the front cover by placing the
screw driver in the location notch on the bottom part of the rocker cover
and unclip the cover.
Replace the battery with a new CR2032
battery (Byron SX100), making sure the
polarity is correct, then replace the front
cover.
