Byron HE-307, HE-308 - HomeEasy Remote Control Light Switch Installation Instructions

Overview

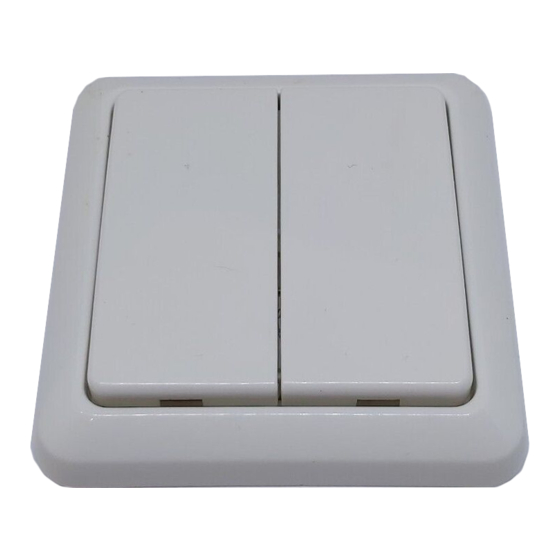

The HE-307and HE-308 Remote Control light switches are expansion units for the HomeEasy range of products and designed to work with all the HomeEasy receiver sockets and modules.
Additional HomeEasy receiver products are required for the HE-307/HE-308 to work.

Product Operation

Pairing/Deleting with Remote Control

Up to Six remote controls can be paired with each Receiver Socket or Module. To pair the switch and a socket together, press "Learn" button. The LED will start to flash, now press the selected "ON" button on the remote control, the LED will stop flashing. The units are now paired together, you can test this by pressing the selected "On/Off" button.

Always refer to the original instruction when using with additional products

Deleting Remote Control

To delete a remote control that has been paired with a HomeEasy Receiver socket or module, simply press the "Learn" button. The LED will start to blink; press the "Off" button on the remote control, the LED will blink twice to confirm that the remote control has been removed from the receiver sockets memory.

Remote Socket reset

To delete all the remote control units from the memory of the Receiver Socket or module, hold the "Learn" button for more than 6 seconds, the LED will start to blink continuously. Press the learn button again, the LED will blink twice to confirm the deletion of all remote controls form the receiver memory.

Dimming

Compatiable Receivers Only

To dim a compatible receiver socket or module, switch the receiver on and then press "On" again. The unit will now start to dim to select the required level press "On" again.

Changing Battery

Using a small flat screwdriver remove the front cover by placing the screw driver in the location notch on the bottom part of the rocker cover and unclip the cover.

Replace the battery with a new CR2032 battery (Byron SX100), making sure the polarity is correct, then replace the front cover.

Installation

Using a small flat screwdriver remove the front cover by placing the screw driver in the location notch on the bottom part of the rocker cover and unclip the cover.

Once the location for the switch has been selected, the wall switch can be stuck or screwed to the wall

Attaching the HE-307/308 to a metallic surface will reduce the operating distance.

1. To stick the HE-307/308 to the wall, clean the surface of all loose material and grease using an appropriate cleaner (an alcohol based cleaner is recommended for tiled surfaces).
   When the surface is dry, remove the backing tabs on the double sided sticky pads located on the back of the wall switch and press firmly against the wall.

To screw the unit to the wall:

2. Using the backing bracket as a template mark and drill two holes and fix the bracket securely using the appropriate screws and wall plugs (included), make sure the arrow faces up.


Product Specification

Remote Control: HE-307/HE-308
Battery: 3v Cr2032
Range: 30 Metres (Open Distance)
Frequency: 433.92MHz
Indoor Use Only

Never Exceed the Product Specification

Product Compatability

The HE-307/HE-308 remote control wall switch is compatible with all HomeEasy products
