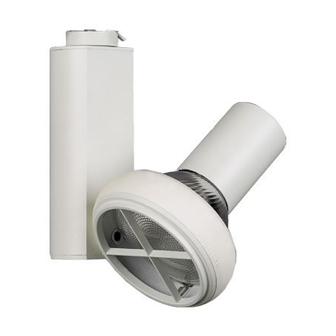

Philips ProSpec 37108 Specification

Page 1 of 2
2.02 in
[51 mm]"
8
9
7.48 in
[190 mm]"
6.59 in
[167 mm]"
7
5.72 in
[145 mm]"
Catalog No. Finish
37108WH White
37108BK
Black
Features
1. Track Attachment Fitting: Molded polycarbonate, rotates into track.
2. Locking Lever: Steel pin. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum.
4. Ballast Housing: Extruded aluminum housing with die-cast aluminum
end caps.
5. Ballast: Electronic HID.
6. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical
rotation with tensioned mounts for controlled aim.
7. Lamp Housing Ring : Die-cast aluminum with cool-grip
a high temperature silicone rubber which allows aiming adjustments while
fixture is on. Hold the lens and louver accessories in place. Integral color.
8. Lampholder: Medium base 5kV pulse rated glazed porcelain body socket
with plated nickel screw shell and lamp contacts; 18AWG SEW-2 leads
encased in fiberglass sleeving.
9. Socket Boot: Metal Housing. Integral color.
Accessories
Holder: Integral, holds one accessory
Diffusion/ Special Filters: AF4 series
Color Filters: ADF4 series
Louver (Hex Cell): AL4HC
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0709
ProSpec
2
1
4
3
5
7.23 in
[184 mm]" [200 mm]"
6
Mounting
ProSpec 120V/277V track systems only.
®
insulation band;
®
120V/277V Track Lighting
™
5.75 in
[146 mm]"
7.87 in
Lamp
70W PAR38 CMH (M98) E26 medium base
Not included
Electrical
Electronic Ballast (Thermally Protected)
Input Voltage: 120V/277V
Power Factor: >0.99
Input Power: 77W
Max Input Current:
0.65A@120V/0.28A@277V
Finish
All painted finishes are baked powder or enamel.
Markings
UL, cUL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
37108
Mini HID, Ring, 70W PAR38 CMH
1.63 in
[41 mm]"
7.37 in
[187 mm]"
Total Harmonic Distortion: <10%
ANSI Code: M (C) 85, M (C) 98,
M (C) 139, M (C) 143, M (C) 85, M (C) 98
Do not use on dimming circuit
Type:
2.50 in
[64 mm]"
