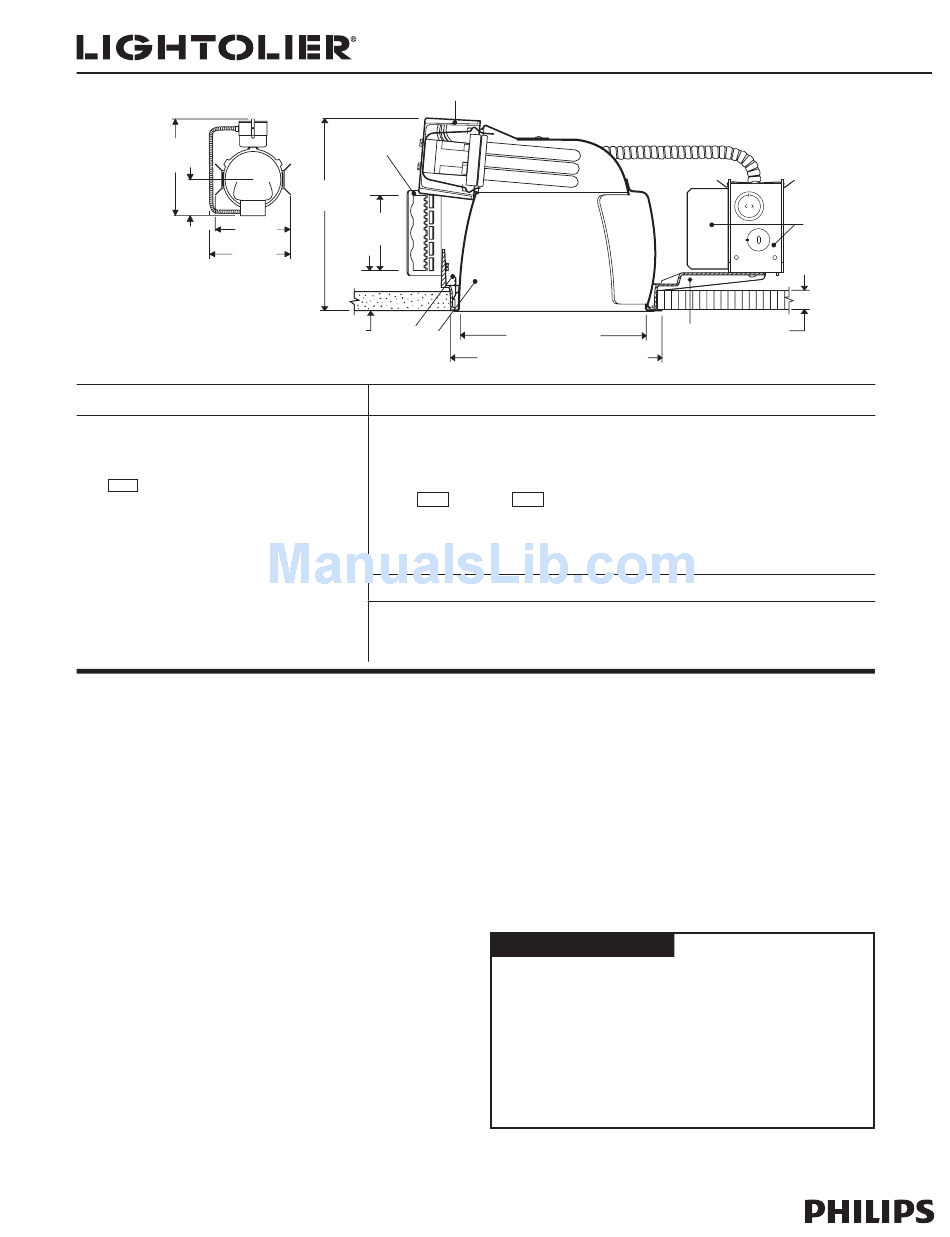

Philips Calculite 8087 Specification

Page 1 of 3
15"
(381 mm)
5-3/4"
(146 mm)
Ceiling Cutout: 8" (203 mm) Dia.
Reflector Trim
8087CLW Clear Iridescence Free, White Flange
8087CLP Clear Iridescence Free, Polished Flange
8087CL Clear Iridescence Free, Molded Trim Ring
8087
Add suffix. See options for other finishes.
Features
1. Downlight Wall Washer Reflector: 16 ga. Specular Alzak
lamp cutoff to lamp and lamp image. Provides vertical surface wall wash and
downlighting. Iridescence Free finish. Self-flanged or flangeless with molded
white trim ring (field paintable).
2. Socket Cup: Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or
1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.

Options and Accessories

Comfort Clear ™ Finishes
CCL
Clear
Diffuse CCD
Champagne Bronze CCZ
Specify desired flange
1
W White, P Polished
Blank - Molded Ring
Lightolier is a Philips group brand
5
7-3/4"
(197 mm)
3"
11-3/8"
(289 mm)
(76 mm)
12-3/4"
(324 mm)
Top View
1" (25 mm) min.
2-1/8" (54 mm) max.-
Frame-In Kit
S7126BU 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7132BU 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7142BU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Dimming Options:
S7132B
CU3
J2LD3
J1MX
Other dimming product available, please consult factory
Remodeler Frame-In Kits
7126BURM
7132BURM
7142BURM
®
1 Other Finishes
WH
White
Calculite CFL Open Wall Washer
®
2
7-1/4" (184 mm) Dia.
4 1
7-7/8" Flush
(200 mm)
or S7142B
Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)
Lutron 5% Dimming (277V)
Mark 10 Dimming (120V)
7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam))
7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Options and Accessories (continued)
aluminum, 55° Emergency
Chicago Plenum
Existing/Thk. Ceiling
Emergency Ltg. Kit
Fuse (Slow Blow)
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA
Labels
UL listed for damp locations, I.B.E.W.
Alzak is a registered trademark of ALCOA.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
7 3/8" Aperture Triple Tube Horizontal Lamp
1-1/8" (29 mm) max.
3
Ceiling Thickness
8-5/8" Self-Flanged
(209 mm)
JUM7 Mark 7 Dimming (120/277V)
J2MX Mark 10 Dimming (277V)
Add suffix EM*
Add suffix LC
FA EC7*
FA EM3E*
FA EM4E*
Add suffix F
Type:
8087
6
