Philips Lytespan 8112 Specification

Page 1 of 2
10
11
Ordering Information
Catalog No. Finish Lamp
8112AL Aluminum 35W BT5 CDM-Tm
8112BK
Black (M,C179E)
8112WH
White PGJ5 TAL base
Not Included

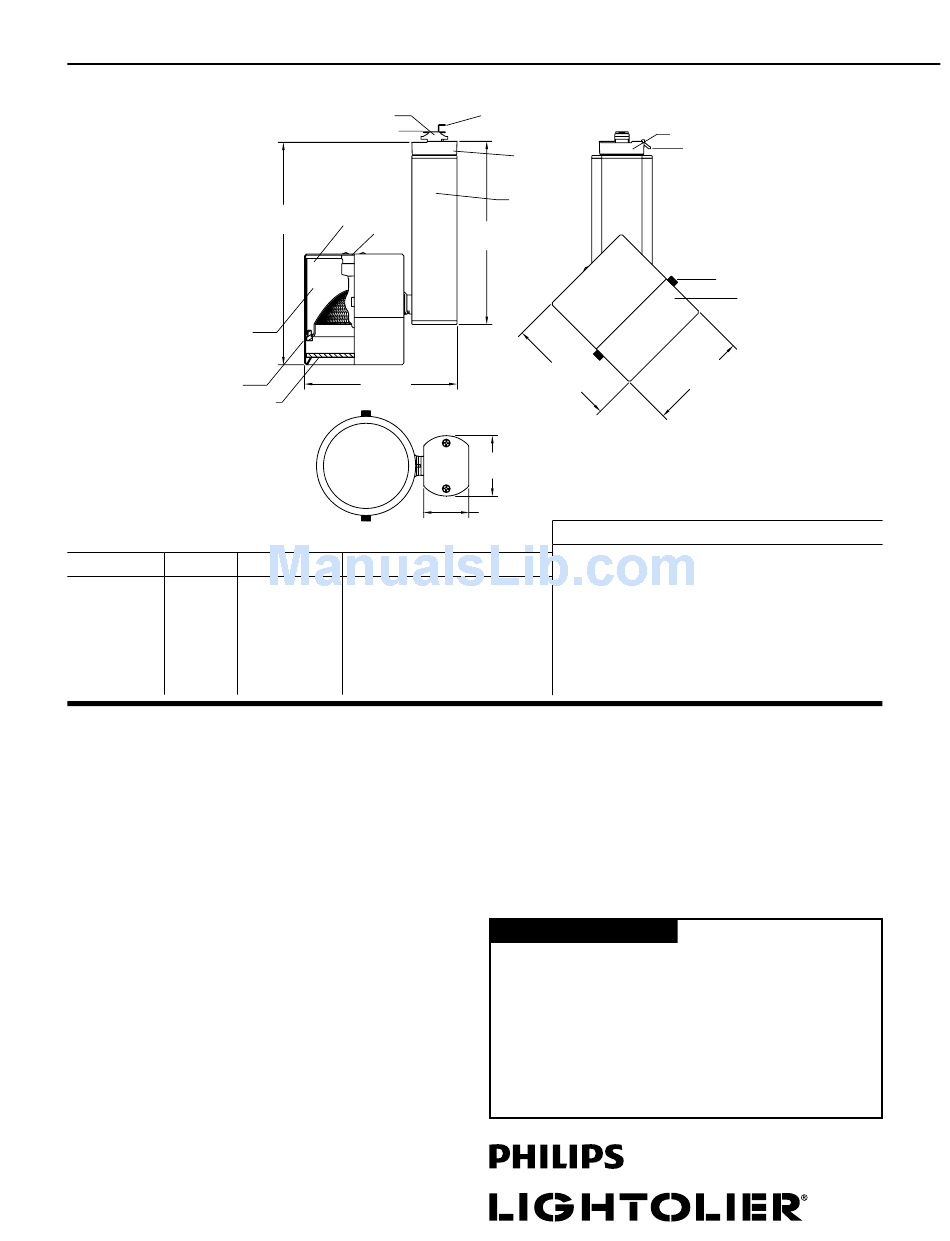

Features
1. Track Attachment Fitting: Molded polycarbonate. Integral color in gray,
black or white. Rotates into track and locks into place with the use of
push tabs.
2. Push Tab: Molded polycarbonate. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum
4. Movable Contact: Solid Brass. Extends for connection to 2nd circuit in
Advent track.
5. Ground Contact : Solid brass
6. Pivot Mounts: Allows for 350° horizontal and 0-90° vertical rotation with
tensioned mounts for controlled aim.
7. Ballast Housing: Extruded housing with die-cast aluminum covers.
8. Ballast: High Power Factor metal halide electronic ballast. 0.40 amps
maximum input current, 45 watts input power.
9. Lamp Housing: 0.04" (1.02mm) aluminum
10. I nner Housing: 0.04" (1.02mm) aluminum. Black finish.
11. Reflector Knobs: Steel zinc-plated knurled knobs. Secured the reflector
without tool.
12. L ampholder: Twist and Lock PGJ5 base allows lamp positioning with a
single rotation. 5kV (250V) pulse rated ceramic body socket with nickel-plated
contacts. 18 AWG Teflon leads with fiberglass outer sleeve.
13. P rotective Glass: 0.13" (3.18mm) tempered glass.
14. H ousing Cover: 0.04" (1.02mm) aluminum
15. C over Knobs: Steel knurled knobs. Finish matches luminaire cover. Detaches
housing cover without tools.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • D0510
1
5
8 3/16"
9
(208mm) 12
5 1/4"
(134mm)
13
Mounting
All Monopoint, Multipoint, recessed
track, suspension track, suspension
stems, sloped ceiling adapter, Basic,
Advent and Radius Track systems only.
Ceiling and horizontal or vertical wall
mounted. Not compatible with ProSpec
track system.
Lytespan Track Lighting System
®
4
6
7, 8
6 3/4"
(172mm)
3 7/8"
(98mm)
2 1/8"
(53mm)
1 5/8"
(40mm)
Reflectors (Sold Separately)
24MHT4RS
24MHT4RNF
24MHT4RF
24MHT4RSCCZ
24MHT4RNFCCZ Champagne Bronze Narrow Flood Reflector
24MHT4RFCCZ
24MHT4RSWRM Incandescent Warming Spot Reflector
24MHT4RNFWRM Incandescent Warming Narrow Flood Reflector
24MHT4RFWRM Incandescent Warming Flood Reflector
Accessories
8195: Holds one accessory for 25 series (2 1/2" dia.)
AF25 Series: Diffusion/ Special Filters
ADF25 Series: Color Filters
AL35HC: Louver (Hex cell) black. Does not require 8195 accessory holder.
AF35FR: Softening lens does not require 8195 holder
Finish
All painted finishes are baked powder or enamel.
Markings
cCSAus Listed, for dry locations only.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Mini HID Cylinder 35W BT5 CDM-Tm
3
2
15
14
3 7/16"
(87mm)
Clear Spot Reflector
Clear Narrow Flood Reflector
Clear Flood Reflector
Champagne Bronze Spot Reflector
Champagne Bronze Flood Reflector
Type:
8112
