CE DECLARATION OF CONFORMITY
As Manufacturer:
Monarch Instrument
Division of Monarch International Inc.
15 Columbia Drive, Amherst NH 03031 USA
declares under Monarch's sole responsibility that the product:
Pocket Laser Tach 200
to which this declaration relates is in conformity with the following directives and
standards when installed and operated in accordance with the user manual:
Directives:
EMC 89/336/EEC
Standards:
EMC: EN61326:1997
Electrical Safety: IEC61010-1:2001
Laser Safety: IEC60825-1:2001
References: Retlif Testing Laboratories, (Report No. R-4283N)
Technical Construction File PLT-0704 of July 2004
24
th
June 2004
Manufacturer (Amherst,NH)
Alan Woolfson, VP Engineering (Authorized Signature)
Printed in the U.S.A.
Copyright 2004 Monarch Instrument, all rights reserved
1071-4838-112
MONARCH INSTRUMENT
Instruction Manual

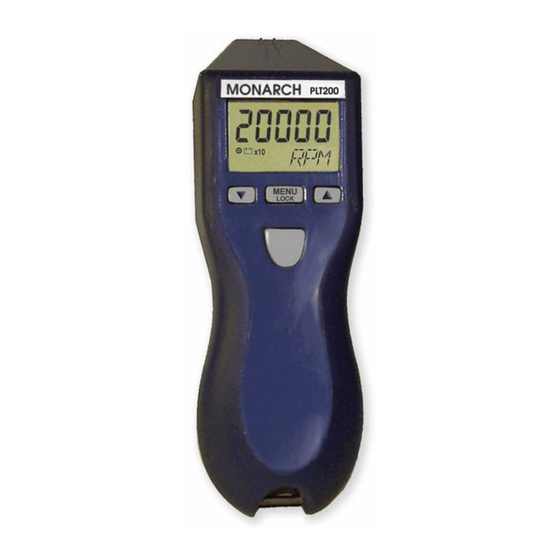

Pocket Laser Tach 200
(PLT200)
Tachometer / Rate Meter / Totalizer / Timer
15 Columbia Drive
Amherst, NH 03031-2334 USA
Phone: (603) 883-3390
Fax: (603) 886-3300
E-mail: support@monarchinstrument.com
Website: www.monarchinstrument.com
Advertisement
Table of Contents
Related Manuals for Monarch PLT200
Summary of Contents for Monarch PLT200
- Page 1 Monarch Instrument Division of Monarch International Inc. 15 Columbia Drive, Amherst NH 03031 USA declares under Monarch’s sole responsibility that the product: Pocket Laser Tach 200 to which this declaration relates is in conformity with the following directives and standards when installed and operated in accordance with the user manual:...
-
Page 2: Options /Accessories
CC-11 Latching Carrying Case for Pocket Tach and accessories you purchased the product. Monarch Instrument’s Limited Warranty applies. CAL-N.I.S.T. N.I.S.T. Traceable Certificate of Calibration www.monarchinstrument.com for details. Warranty Registration and Extended Warranty coverage... -
Page 3: Table Of Contents
12.0 BATTERIES TABLE OF CONTENTS TABLE OF CONTENTS When displayed, replace batteries. 1.0 OVERVIEW ................1 2.0 FEATURE LOCATIONS ............1 3.0 LCD DISPLAY SYMBOLS ............2 Remove battery 4.0 PLT200 SPECIFICATIONS ............3 cover 5.0 PREPARATION FOR MEASUREMENT ........7 5.1 Non-Contact Preparation .......... -
Page 4: Overview
1.0 OVERVIEW 11.0 INPUT / OUTPUT The Pocket Laser Tach 200 is a precision hand-held multifunction Input: Accepts remote sensor or Tachometer, Ratemeter, Totalizer and Timer. It is programmable to display Remote Contact Assembly directly in Revs, Inches, Feet, Yards, Miles, Centimeters and Meters or (RCA). -
Page 5: Lcd Display Symbols
10.0 MAKING MEASUREMENTS 3.0 LCD DISPLAY SYMBOLS 10.1 Non-Contact Measurements Hand-held External Sensor (ROS shown) (Not shown: Light IRS-P, Laser MT-190P) 10.2 Direct Contact Measurements Rotational Linear (Use concave On Target Indicator. Blinks on whenever there is an input tip for small signal. -
Page 6: Plt200 Specifications
4.0 PLT200 SPECIFICATIONS Save and advance Laser Specifications: Classification: Class 3R (per IEC 60825-1 Ed 1.2 2001-8) Exit Setup – DONE, then Units Complies with FDA performance standards for laser products except Ready to selected for deviations pursuant to Laser Notice No. 50, dated July 26, 2001. measure Maximum Laser Output: 3mW Unit will remember these settings (including lock on/off) even if turned off... -
Page 7: Timer Mode
9.0 TIMER Mode Contact Specifications (continued): Accuracy: Revs: ±0.05% of reading (RPM) or resolution limit 9.1 TIMER Setup (with no slippage) Turn Power Last Units selected Linear: ±0.5% of reading or resolution limit (with no are displayed slippage) Contact Measurements Ranges: 1a. -
Page 8: Totalizer Operation
Contact Measurements Ranges (continued): 8.2 TOTALizer Operation RATES: Wheel Circumference: Measure Yards per Hour 10cm: 3.281 to 131,233 YPH 12 in: 10.000 to 240,000 YPH Miles per Hour 10 cm: 0.002 to 74.564 MPH Press and hold Lock on 12 in: 0.006 to 136.36 MPH Recall Max Max Speed... - Page 9 TOTALizer Setup (continued): Display: 5 x 0.5” (12.7mm) numeric digits plus 5 Alpha-numeric LCD Batteries: 2 “AA” 1.5 V (DC) alkaline included Enter selection NONE, 1, 2 or 3 (Note: Batteries are NOT rechargeable.) of number of decimal places Battery Life: 30 hours continuous typical with batteries provided External Input: 10.
-
Page 10: Preparation For Measurement
5.0 PREPARATION FOR MEASUREMENT Enter Different options displayed for selection of Internal or External operation. 5.1 Non-Contact Preparation Units Internal or External ROS: External RCA: For Internal operation (Red laser) or External operation Rotational: REV COUNT using optional Remote Optical Sensor (ROS-Red LED). Only Linear: INCH, FEET, YARDS, CM, METER... -
Page 11: Connecting External Sensors
8.0 TOTALizer Mode 2. 10 cm Wheel 3. 12 inch Wheel 8.1 TOTALizer Setup Turn Power Different messages displayed for Install with Internal or External operation. pin in shaft fully seated Tighten screw in slot. securely into flat Internal or External ROS: External RCA: Tighten on shaft. -
Page 12: Tachometer Mode
6.0 TACHometer Mode 11. Save and advance 6.1 TACHometer Setup Turn Last Units selected are 12. Exit Setup – DONE, Power displayed Ready to USE CONTACT TIP or measure [wheel selected], then Units selected 1a. To toggle Lock On/Off Unit will remember these settings (including lock on/off) even if turned off Press and Hold and back on. - Page 13 RATE Setup (continued): Select Units Repeat until desired Units Enter selection Rotational: C RPS, displayed of Units C RPM or C RPH Save and Linear: IPS, IPM, IPH, FT/S, FT/M, FT/H, YPS, YPM, advance YPH, MPH, CM/S, CM/M, CM/H, M/SEC, M/MIN, M/H Select Units Repeat until desired Units...
-
Page 14: Tachometer Operation
6.2 TACHometer Operation 7.0 RATE Mode NOTE: External Remote Contact Assembly (RCA) must be inserted into Measure input socket. 7.1 RATE Setup Press and hold Lock on Turn EXTRN, then scrolling Recall Max Max Speed Power message, then last Units selected 1a.
