6212S00T91
For Outdoor Household Use Only. Not for Commercial Use.
Need Help? Need to Register Your Grill? Looking for Aussie Parts & Accessories?
Visit us online at www.AussieGrills.com Or call Aussie Customer Service at 1-800-251-7558
WARNING
!
• Failure to follow these intructions could result in
fire or explosion which could cause death, serious
personal injury, or property damage.
• Read and follow instructions carefully before
assembly or use.
• Do not use this product for any other purpose than
which it is intended.
• These instructions must be kept with the user.
SAVE THESE INSTRUCTIONS.
WARNING
!
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
• An LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.

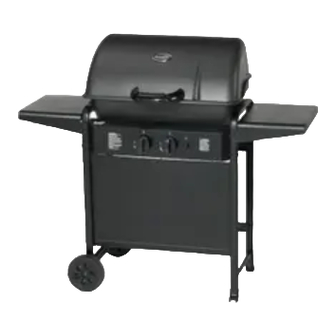

LP Gas Grill Assembly and Use Manual
6512S0DT91
D A N G E R
!
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appli-
ance and immediately call your gas supplier or
your fire department.
Advertisement
Table of Contents
Related Manuals for Meco Aussie Vantage 6212S00T91
Summary of Contents for Meco Aussie Vantage 6212S00T91
- Page 1 LP Gas Grill Assembly and Use Manual 6512S0DT91 6212S00T91 For Outdoor Household Use Only. Not for Commercial Use. Need Help? Need to Register Your Grill? Looking for Aussie Parts & Accessories? Visit us online at www.AussieGrills.com Or call Aussie Customer Service at 1-800-251-7558 WARNING D A N G E R •...
- Page 2 To reduce the risk of a laceration hazard, wear protective gloves when handling parts that have sharp edges. NOTICE Meco Corporation strives to be a quality supplier of consumer products. If we omitted any parts needed for assembly, or you need troubleshooting information, please contact us using our toll free number or visit our web site.
-
Page 3: Table Of Contents
Contents Preparation for Assembly ..........3 Step 23 (6512 Only) Battery Installation....20 Parts Identification Parts Illustration ............4 Connecting/Disconnecting the Gas Parts List ..............5 Using Gas ..............21 LP Gas Cylinder ............21 Assembly Instructions LP Hose & Regulator ........... 22 Step 1 Frame Identification ........ -
Page 4: Parts Illustration
Parts Illustration - Model 6212S00T91 6512S0DT91 NOTE: Some illustrations may vary slightly depending on grill Model, however the names are the same. -
Page 5: Parts List
Parts List- Model / 6212S00T91 6512S0DT91 If you need replacement parts, refer to the Parts Illustrations to find the exact parts you need. If you have any questions or need help, contact Customer Service at 1-800-251-7558 or go to www.aussiegrills.com. Be sure to have the grill model number and serial number printed on the black label, located on the back of the cart shroud. -
Page 6: Assembly Instructions
Assembly Instructions NOTE: Some illustrations may show parts that are not included in your grill or are a different size. If assembly method is different it will be noted. If not, proceed as instructed. Step 1 Frame Identification Identify parts and lay on floor as shown. Parts are named for their assembled position on the grill. The two Top U- Frames are symmetrical so will work on the left or right. -
Page 7: Step 2 Shroud To Leg Assembly
Step 2 Shroud to Leg Assembly The next 2 steps are best performed on a smooth level surface (and/or with the help of a second person) Place the shroud on Leg Frames as shown. Install a 5/32-30 x .39” bolt through each bottom corner of the shroud and into the threaded insert in the inside face of the legs. -
Page 8: Step 4 Tank Side Brace & Top Crossbrace Assembly
Step 4 Tank Side Brace & Top Crossbrace Assembly Place the Tank Side Brace inside the left Top U-Frame, with the open side facing inwards and the threaded inserts at the bottom. Install a 1/4-20 x 1.1” bolt through the front of the U-Frame then through the top corner of the Shroud and into the threaded insert inside the Tank Side Brace. -
Page 9: Step 5 Crossbrace & Right Tube Brace Assembly
Step 5 Crossbrace & Right Tube Brace Assembly Assemble one Crossbrace to the inside of the back legs as shown with the short flange of the Crossbrace to the top and facing inwards. Install 4) 1/4-20 x .39” bolts through the holes in the Crossbrace and into the threaded inserts in the inside face of the legs. -
Page 10: Step 7 Wheel Assembly (Model 6212)
Step 7 (Model 6212) Wheel Assembly Place the Tank Support between the Left Legs so the holes in the end align with the holes in the legs with the flanges facing up. The flanges have notches with different spacing; the side with the notches closer together should be to the inside of the cart. -
Page 11: Step 8 Bowl Support & Hinge Half Assembly
Step 8 Bowl Support & Hinge Half Assembly Attach the Bowl Supports and Flavor Activator Supports to the Bowl, orientated as shown. With the Flavor Activator Support on the inside of the Bowl and the Bowl Support on the outside, attach both Supports to the Bowl using the same pair of 1/4-20 x .59”... -
Page 12: Step 10 Main Burner Assembly
Step 10 Main Burner Assembly Slide the burner tubes down through the indicated holes in the bowl and align the holes in the burner brackets with the holes in the Bowl. From underneath the Bowl, fasten the Main Burner to the Bowl with 2) #5 x .31” Tapping Screws. #5 x .31”... -
Page 13: Step 11 Bowl To Cart Assembly
Step 11 Bowl to Cart Assembly Place the Bowl Supports on top of the U-Frames, aligning the holes. Attach the Bowl to the cart with four 1/4-20 x .39” Bolts through the bowl Supports and into inserts in the top of the U-Frames. -
Page 14: Step 12C (6512 Only) Control Panel Heat Shield
Step 12C Control Panel Heat Shield - Model 6512 ONLY 5/32-30 x .31” Bolt Tuck top flange of 6512 Control Panel Heat Shield under the top flange of the inside of the Control Panel so that the holes align. Insert two 5/32-30 x .31” Bolts through the holes in both parts and fasten in place with two 5/32-30 Nuts 5/32-30 Nut 5/32-30 x .31”... -
Page 15: Step 14A Main Burner Electrode Assembly
Step 14 A. Main Burner Electrode Assembly Insert small end of Electrode Wire down through the hole in the Bowl in front of the main burner until flange of collec- tor box rests on front edge of burner. Fasten Electrode collector box to the burner with 1) #5 x .31” Tapping screw. Front of Grill Main Burner Electrode #5 x .31”... -
Page 16: Step 15 Side Table Assembly
Step 15 Side Table Assembly Place the Side Table flanges with holes around the outside of the U-Frame and align the holes. Insert a 1/4-20 x 1.2” Stair Screw through each of the four Side Table holes and then through the U-Frame. Fasten each securely with a 1/4-20 Nut. -
Page 17: Step 17 Hood Handle Assembly
Step 17 Hood Handle Assembly Model 6212: Attach the Hood Handle to the Hood with 2) 1/4-20 x .39” Bolts and Fiber Washers. Place Heat Baffles between the Handle and the Hood, orienting baffles so they align with the end of the handle. Model 6512: Attach the Hood Handle and the Hood Handle Heat Shield to the Hood with 2) 1/4-20 x .39”... -
Page 18: Step 19A Flavor Activator Assembly
CAUTION To reduce the risk of a laceration hazard: • Wear protective gloves when installing warming rack. Hood and Bowl edges could be sharp. Step 19 Flavor Activator / Warming Rack Assembly Place Flavor Activator on Supports in Bowl. Install Warming Rack as follows: First insert legs 1 and 2 in holes on right side of Bowl and Hood. Next, while hold- ing leg 3, insert leg 4 into hole in left side of Hood. -
Page 19: Step 21 Tank Blocking Wire Assembly
WARNING To reduce the risk of serious bodily injury or death from fire or explosion: Never remove guards or devices to prevent storage of spare or oversize LP Gas Cylinders not recommended for this grill. Step 21 Tank Blocking Wire Assembly Attach the Tank Blocking Wire to the cart as follows. -
Page 20: Step 22 Drip Cup Assembly
Step 22 Drip Cup Assembly Insert the Drip Cup into the hanger wire underneath the grill bowl. Step 23 Battery Installation (6512 only) Unscrew Igniter Cover and insert AA Battery with the negative “-“ end going in first. Replace the cover and tighten securely. -
Page 21: Connecting/Disconnecting The Gas
Connecting/Disconnecting the Gas Using Gas D A N G E R Carbon Monoxide Hazard • This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. • Never use this appliance indoors, on recreational vehicles, or boats. WARNING To reduce the risk of serious bodily injury or death from fire or explosion: •... -
Page 22: Lp Hose & Regulator
LP Hose and Regulator NOTE: WARNING If the hose/regulator assembly is not working properly and you need a replacement, contact Customer Service at 1-800-251-7558 or go to www.aussiegrills.com. To reduce the risk of serious bodily injury or death from fire or explosion: Be sure to have the grill model number and se- •... -
Page 23: Before Using Your Grill
Before Using Your LP Gas Grill Installation Codes WARNING To reduce the risk of serious bodily injury or death from fire or explosion: • This installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54 Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2 or the Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192 and CSA Z240 RV Series, recreational Vehicle Code, as applicable. -
Page 24: How To Perform A Leak Test "First Time Use
How to Perform A Leak Test “FIRST TIME USE” and as required Supplies Needed for a Leak Test: • Clean paint brush • Water • Dish washing liquid 1. Use an LP Gas Cylinder equipped with an OPD (Overfill Prevention Device) and have it filled at an authorized LP gas dealer by a qualified attendant. -
Page 25: Lighting Grill Using The Ignitor
6. If “growing” bubbles appear on any of the connection points, you have detected a gas leak. Immediately close the LP Gas Cylinder valve by turning handle clockwise a. If leak appears at either end of hose and regulator assembly, retighten the connection at the leak, but do not over-tighten. - Page 26 Lighting the Grill Using the Ignitor (continued) 1. Open the Hood. 2. IMPORTANT: Make sure Control Knobs are turned “Off.” (Fig. 4) Turn LP Gas 3. Turn the LP Gas Cylinder valve open counterclockwise until it stops. (Fig. 5) Cylinder valve counterclockwise Control Knob in High Control Knob in...
-
Page 27: Manually Lighting The Grill
Manually Lighting the Grill WARNING To reduce the risk of serious bodily injury or death from fire or explosion: • Open Hood before lighting the grill to prevent an explosion from gas build-up. 1. Open the Hood. 2. IMPORTANT: Make sure Control Knobs are turned “Off.” (Fig. 4 - P.26) 3. -
Page 28: Cooking On The Gas Grill
Cooking On the Gas Grill WARNING To reduce the risk of serious bodily injury or death from fire, explosion or burn hazard: • Never use charcoal or lighter fluid in your gas grill. Keep this outdoor cooking appliance clear and free from combustible materials, gasoline, and other flammable vapors and liquids. -
Page 29: Roasting (Indirect Method)
Grill Cooking (Direct Method) Direct Cooking on the Grids: Food is cooked directly over the heat source. The Burners heat up the Flavor Activators under the Cooking Grids, which in turn heat the food on the grill. The natural food juices from cooking fall onto the hot Flavor Activators below and vaporize. -
Page 30: Warming Rack
Warming Rack WARNING To reduce the risk of fire or flare-up from grease drippings: • When cooking food on the warming rack, make sure no Burners are on directly under the Drip Pan. • Clean grease drippings away from grill after each use. Warming Racks are a convenient way to cook food, keep cooked food warm or to warm items such as bread or rolls. -
Page 31: How To Clean The Burners
Cooking Grid/Flavor Activators: Clean the residue off with a baking soda and water solution. For stubborn stains, use a non-abrasive scouring powder. Do not use steel wool or other abrasive cleaners that can scratch the stainless steel or porcelain-coated surfaces. This can cause foods to stick on the Cooking Grids. -
Page 32: Storage
6. Check the Gas Collector Box to verify that there is a 3/16” gap between the electrode tip and the top flange of the box as shown in Fig. 12. Fig. 12 3/16” gap Gas Collector Box - If no spark, pinch together or open Gas Collector Box to adjust 3/16”... -
Page 33: Emergencies
Emergencies Problem Possible Cause Solution Gas leaking from Damaged hose Turn off gas at the LP Gas Cylinder. Replace valve/hose cracked/cut/burned hose regulator before continuing use. Gas leaking from Mechanical failure due to rust or Replace LP Gas Cylinder. LP Gas Cylinder mishandling Gas leaking from LP Gas Failure of valve from mishan-... - Page 34 Troubleshooting Problem Possible Cause Solution Regulator coupling nut is not Tighten coupling nut by hand about one-half to three quar- fully connected to LP cylinder ters additional turn. Do not use tools. LP-Excess flow valve tripped in Turn Control Knobs to “Off” position and turn LP Gas Cyl- regulator inder handle clockwise until it stops.
-
Page 35: Important Notice- Lp Cylinder With Opd
Problem Possible Cause Solution Flare up Grease build-up Clean grill. Excessive fat in meat Trim fat from meat before grilling. Persistent grease fire Grease trapped around burner Turn Control Knobs “Off” and turn handle of LP Gas Cylinder system clockwise until it stops. Open Hood carefully and let fire burn out. -
Page 36: Limited Warranty
MECO CORPORATION at the customer service number listed below. MECO CORPORATION requires proof of purchase and we suggest that you keep your receipt. If you need a replacement part under warranty, a proof of purchase will be necessary. Damages caused by commercial or institutional use, accidental or intentional damage, repairs made or attempted by unauthorized persons, or misuse are not covered by this warranty.
