Design and Operation
Hard Disk Drive
In a DCP Mode 2 connection, the DEFINITY AUDIX system connects to a
DCP port on a TN754 circuit pack. It then connects to an analog port in
the switch's analog trunk group via a data module and a modem.
Customers can use this connection with any DEFINITY or System 75
switch release. Figure 2-3
Central
Office
trunk
Analog
trunk
cydxsl14 KLC 012299

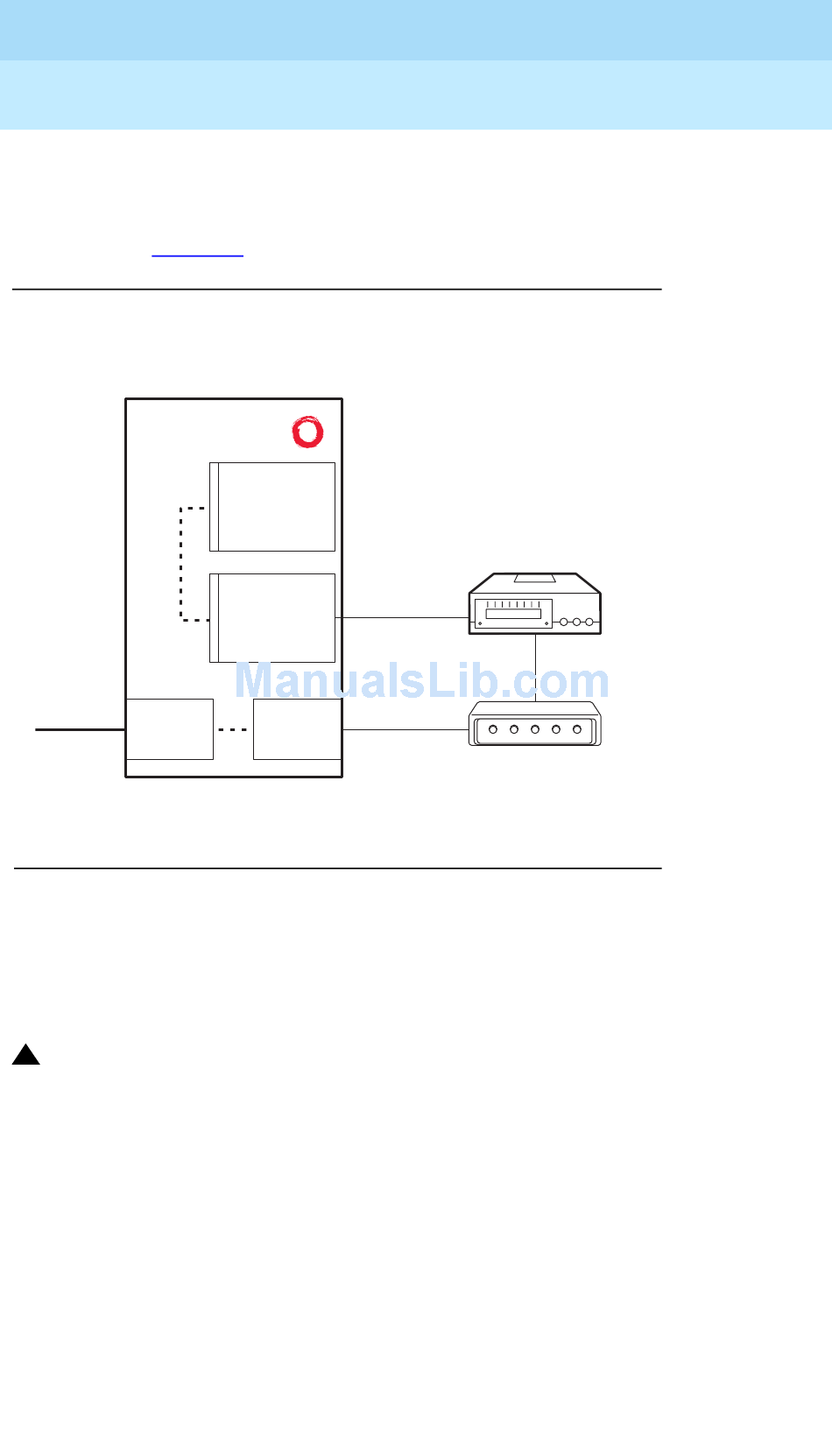

Figure 2-3. DCP Mode 2 Connection
Other DCP Mode 2 connections may be available for switch releases
earlier than 7.1. See DEFINITY AUDIX System — Digital Networking ,
585-300-534, for more information about DCP Mode 2 connections in
these switches.
!
CAUTION:
Operating the DEFINITY AUDIX system in a DCP Mode 2 Digital
Networking connection with higher numbers of subscribers will
significantly degrade the system's performance. The configuration
for a DCP Mode 2 connection cannot exceed the following limits:
— 10 remote nodes
— 100 local subscribers
— 1000 remote subscribers
shows this connection
DEFINITY
system
DEFINITY
AUDIX
system
Digital line
circuit
pack
Analog
port
Data module
DCP
Analog
T/R
Modem
M7U null
modem cable
