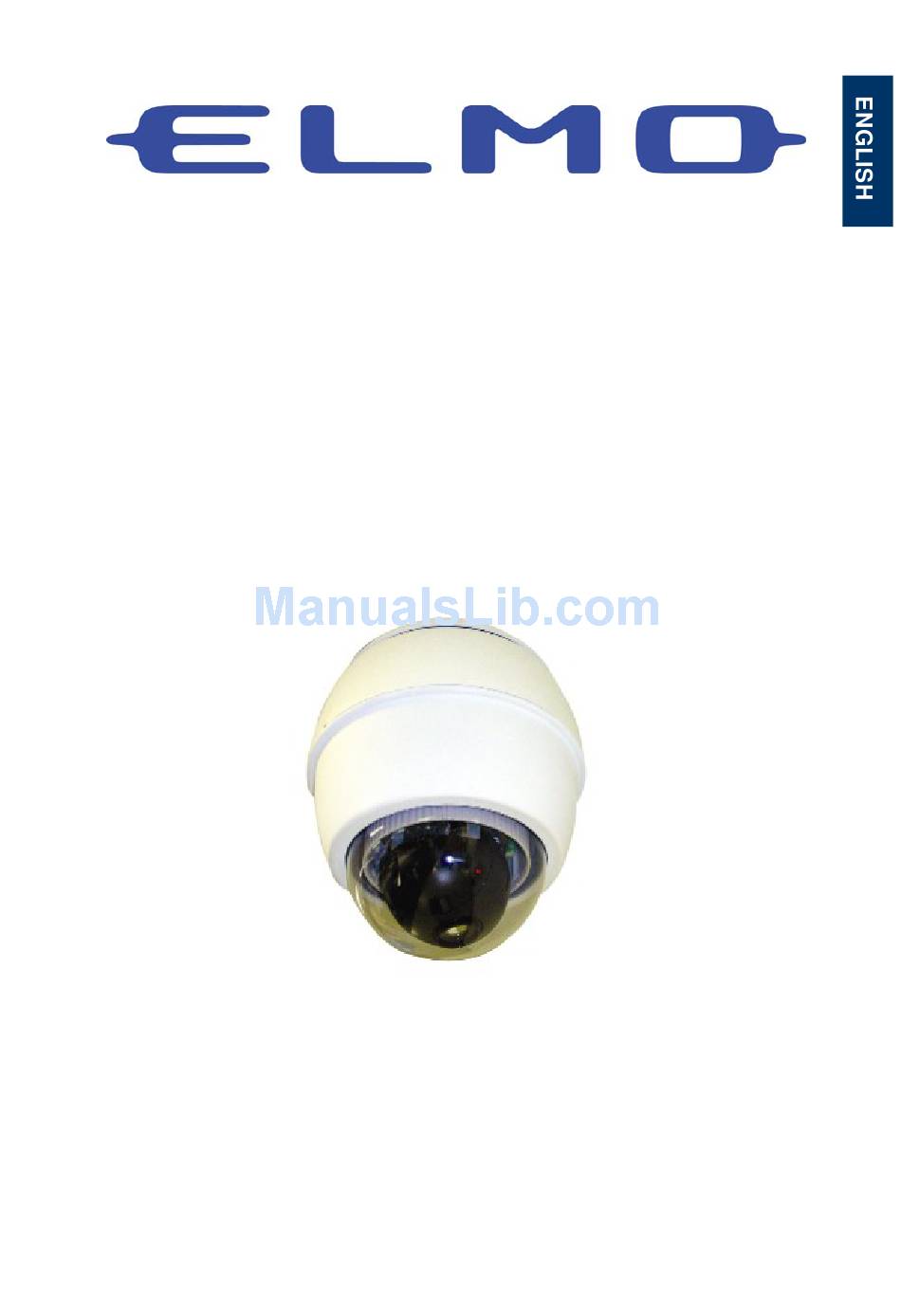

- Page 1 ESD-380 User’s Manual HEAVY DUTY MODEL Before attempting to connect or operate this product, please read these instructions completely.
-
Page 2: Table Of Contents
PREFACE...2 FEATURES...3 PRECAUTIONS...5 QUICK STARTING ...6 FUNCTION DEFINITION ... 6 QUICK START FROM ESD-CC1 KEYBOARD ... 7 SWITCH SETTING ...9 SWITCH DEFINITION... 9 ID Setting ... 9 Dome Control Protocol ... 10 RS-485 Setting... 10 INSTALLATION ...12 CONNECTION...17 CABLE CONNECTION... 17 22-PIN CONNECTOR DEFINITION... -
Page 3: Preface
The speed dome is a new subcompact dome camera system designed to deliver superb performance and durability with a pristine housing that looks good in any security and surveillance installation. This speed dome contains new generation advanced DSP color camera, with 22X optical zoom multiply 12X digital magnifier (23X optical zoom with 12 digital magnifier are selectable items), delivers the power of a 364X zoom (276X zoom) to make sure that the finest details are captured. -
Page 4: Features
CAMERA FEATURES 1. Optical performance: (1). DR model: 23X optical zoom with 12X digital magnifier. (2). S model: 22X optical zoom with 12X digital magnifier. 2. Continuous Auto-focus or manual focus 3. Minimum illumination: (1). DR model: 23X lens: 0.01 lux (2). - Page 5 ROTARY BODY FEATURES 1. 5” compact, low profile color dome camera 2. 360° endless rotation 3. Pan speed up to 375° /sec 4. Tilt speed up to 300° /sec 5. Preset function enable user to record different 128 viewpoints what you want. You can set Pan/ Tilt/ Zoom for every preset position.
-
Page 6: Precautions
Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. DO NOT disassemble the camera To prevent electric shock, do not remove screws or covers. There are no user serviceable parts inside. -
Page 7: Quick Starting
The section is a quick reference for users to manipulate a dome camera in a short time. We explain the operational method through different keyboards. FUNCTION DEFINITION ■ Preset Function Definition Preset point means that dome camera will save pan/tilt/zoom positions to its memory. You can recall the preset position through this function. -
Page 8: Quick Start From Esd-Cc1 Keyboard
QUICK START FROM ESD-CC1 KEYBOARD Please press <DOME> button and enter the ID of dome to start to control the selected dome camera. ■ Preset Function Operation ■ Setting Press a number key for preset point such as <2>. Press <SET PRESET> to record this position as preset point 2. - Page 9 1. Press a number key to set a sequence line such as <1>. Press <SET SEQ.> to start modifying parameters of sequence 1. 2. LCD is displaying “001. PST SPD DWELL” now. You can edit the parameters such as <4> <ENTER> for PST, <1> <5> <ENTER> for SPD and <5>...
-
Page 10: Switch Setting
SWITCH DEFINITION ID Setting Use SW1 ~ SW3 to change your speed dome ID by turning the arrow to the desired number respectively. SWITCH SETTING A. ID Setting (SW1~SW3) B. Dome Control Protocol C. RS-485 Setting... -
Page 11: Dome Control Protocol
Half-duplex *Pin 3: Termination (OFF for Default Setting) Pin 4: Line Lock (OFF for Default Setting) Pin 5: Simplex SW No. Protocol None ELMO AD 422 DS2P Pelco P None Simplex DSCP RS-485 Communication (OFF for Default Setting) SW No. - Page 12 Alarm Pin Definition...
-
Page 13: Installation
INSTALLATION STEP 1: Unpack the dome package and take out the dome bodies. STEP 2: Rotate the top holder and take it off from the upper dome body. STEP 3: Rotate the smoke bubble and remove it. - Page 14 STEP 4: Now install the dome cover to protect the camera lens. Before actually doing that, apply some lubricant on all surface of water-proof rubber on the upper dome body to make the installation process smoother. Note that the tiny protrusion on upper dome body must match to one of the four holes on lower dome body.
- Page 15 STEP 5: Screw the two dome bodies together. It should be done if the lower dome body looked swelled. STEP 6: If needed, assemble the sunshield for outdoor use. STEP 7: Fix the sunshield to the dome with three screws. STEP 8: Connect the attached RS-485, power and BNC cables with your arranged cables.
- Page 16 STEP 9: Put the cables through the gooseneck and top holder. STEP 10: Mount the top holder to the gooseneck and rotate the top holder clockwise. STEP 11: Then connect the cables to the dome body.
- Page 17 STEP 12: Mount and screw the dome to the top holder. Put on the rubber lastly. Completion: ESD-380 ESD-380 with sunshield...
-
Page 18: Connection
CABLE CONNECTION 22-PIN CONNECTOR DEFINITION The definitions of the pins on the 22-pin connector are listed as below table. AC24-1 Empty AC24-2 Empty Empty 11-20 Empty VGND Video CONNECTION Color Cable White Black 1007 20AWG Green Yellow Orange 1007 24AWG Green Brown... -
Page 19: Rs-485 Connector
RS-485 Connector Please connect keyboard to Speed Dome through the terminal block. The communication interface between Speed Dome and Keyboard is RS-485. Maximum cable length for RS-485 communication over 24-gauge wire is 4000 feet (1219 meters). The recommended cable for RS-485 communication is CAT 5 cable. Definition Cable Color T+ (D+) -
Page 20: Osd Display Format
OSD DISPLAY FORMAT OSD DISPLAY FORMAT POSITION FUNCTION FOCUS MODES BACKLIGHT ALARM ZOOM RATIO TITLE CAMERA ID < Fig1. OSD DISPLAY POSITION> OSD DISPLAY Back Light Compensation OFF Back Light Compensation ON ALARM 1. Max. 20 letters for each title. 2. -
Page 21: Specifications
Temperature Power Source 24 VAC Max Power Consumption w/o Sunshield: 234 x 305mm Dimensions w/ Sunshield: 263 x 305mm Weight 5.8kg CONTROL FEATURES Camera ESD-380 Module Type D&P protocol Presets Preset Accuracy Patterns Sequence Auto-Pan Masking Proportional Pan & Tilt... -
Page 22: System Architecture
SYSTEM ARCHITECTURE SYSTEM ARCHITECTURE... -
Page 23: Appendix - Osd Menu
APPENDIX - OSD MENU This camera utilizes a user setup menu that is displayed on-screen. This setup menu contains various sub menus that from a tree-type structure as shown below. This menu is described in the “SETUP MENU DESCRIPTION” OSD TREE STRUCTURE DEFAULT BACKLIGHT BLC LEVEL... - Page 24 TITLE DISPLAY TITLE 000 ~ 016 SETTING ALARM ENTER ALARM PIN SETTING ALARM SWITCH ALARM TYPE ALARM ACTION PRESET POS SEQUENCE LINE 1 ~ 4 DWELL TIME EXIT HOME ENTER HOME FUNC. SETTING SELECT MODE RETURN TIME PRESET/ AUTOPAN/ SEQUENCE/ CRUISE EXIT SEQUENCE ENTER...
- Page 25 AUTO THRESHOLD FUNCTION IR COLOR EXIT NONE (22X ) ENTER WDR SWITCH SETTING WDR FUNCTION EXIT NONE (22X ) PRIVACY ENTER PRIVACY SWITCH OFF / ON SHADE SET MASK RESET EXIT NONE (22X ) EXIT OSD LOW. MID. HI. B/W. COLOR ON/OFF AUTO MANUAL...
-
Page 26: Osd Menu
OSD MENU There are two pages of OSD setup menu allow users to control the camera parameters, these functions are described in the following sections in detail. Please use LEFT/ RIGHT/ UP/ DOWN of direction keys to select your parameters. MENU ITEM 1. - Page 27 IRIS With this option, the IRIS priority is higher than SHUTTER and AGC circuit will function automatically to get consistent exposure. After the IRIS is selected manually, the action of exposure compensation depends on the AGC circuit. With this option, the AGC priority is higher than SHUTTER and IRIS circuit will function automatically to get consistent exposure.
- Page 28 SLOW SHUTTER You can set the slowest shutter speed. With the slowest shutter speed, you can see objects in a dark environment under 0.2 lux. With a higher shutter speed, you can see a smooth video image from camera ANGLE ADJUSTER (MIN/ MAX) User can see more area higher if they adjust the MAX angle to +99 degree.
- Page 29 to “SP” and press <ENTER> 11. ALARM SETTING Alarm parameters can be set on this page. ALARM PIN Choose an alarm connector what you want to set its status. ALARM SWITCH Turn ON/ OFF alarm function. ALARM TYPE There are two kind of alarm types can be selected. One is normal open the other is normal close.
- Page 30 This item is detailed mode setting of home function. This item will vary with ‘SELECT MODE’ item. Go to execute home function (HOME FUNC ON only). EXIT Exit the HOME SETTING menu. 13. SEQUENCE Sequence parameters can be set on this page. SEQUENCE LINE There are four sets of sequence lines built in dome camera.
- Page 31 TO SAVE: Press ‘ENTER’ to set this position as end point and escape joystick mode. DIRECTION Rotational direction of dome camera. SPEED AUTOPAN function will rotate camera with this speed. RUN AUTOPAN Execute AUTOPAN function. EXIT Quit the AUTOPAN menu. CRUISE Cruise parameters can be set on this page.
- Page 32 WDR FUNCTION You can edit all parameters of WDR by yourself. EXIT Exit this page. 18. PRIVACY You can program the privacy zone position with this option. PRIVACY SWITCH You can display “Privacy masks” with this option. SHADE The color of privacy mask can be selected through this option. SET MASK After you press “ENTER”...
-
Page 33: Appendix - Pelco
The Speeddome can be controlled through a keyboard which built in D protocol and P protocol. Please follow the instruction to manipulate our Speeddome with a keyboard which built in D protocol and P protocol. SYMBOL DEFINITION A single button which can command a dome to go to specific <Preset Go>... - Page 34 CABLE LENGTH The communication interface between Speed Dome and Keyboard is RS-485. Maximum cable length for RS-485 communication over 24-gauge wire is 4000 feet (1219 meters). CAT 5 cable is recommended. CABLE DEFINITION (P Protocol Keyboard to Speed Dome) T x+ T x- + 12V For P Protoc ol Ke yb oa rd...
-
Page 35: Appendix - Philips Allegiant
APPENDIX - PHILIPS ALLEGIANT The dome cameras can be integrated into Philips Allegiant systems through A repeater. Please follow the instructions to control dome cameras through Philips Allegiant systems. SYMBOL DEFINITION A physical single button : <shot> Command dome cameras to go to specific preset position. A physical single button : <set>... - Page 36 1478 Old Country Rd. Plainview, NY 11803 www.elmousa.com...
