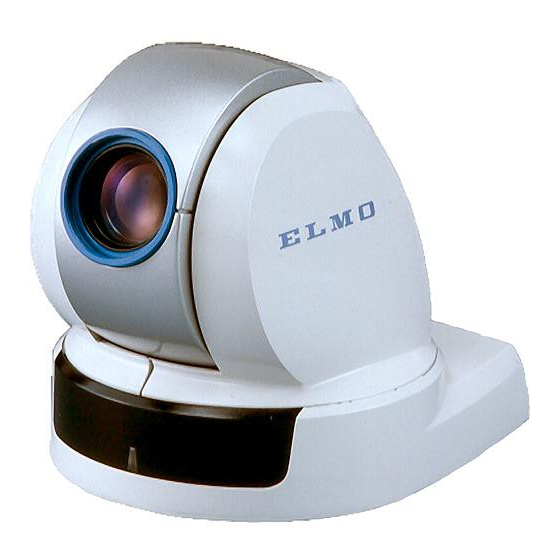

PAN • TILT • ZOOM COMMUNICATION CAMERA
PTC - 100S
PTC - 110R
INSTRUCTION MANUAL
Please read this instruction manual carefully before using the PTC-100S or
PTC-110R and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTC-100S and is the answer not in the manual?

Questions and answers

Related Manuals for Elmo PTC-100S

Summary of Contents for Elmo PTC-100S

  • Page 1 PAN • TILT • ZOOM COMMUNICATION CAMERA PTC - 100S PTC - 110R INSTRUCTION MANUAL Please read this instruction manual carefully before using the PTC-100S or PTC-110R and keep it for future reference.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not install near heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
  • Page 3 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 4: Handling Precautions

    HANDLING PRECAUTIONS Be sure to use the provided AC adapter. Do not leave the Camera under direct sunlight or by heater, or the Camera may be discolored, or damaged. Do not place the Camera in any humid, dusty, windy or vibrating location.

  • Page 5: Table Of Contents

    When multiple Cameras are operated through the wireless remote controller ... 8 3. SETTING UP ... 9 Connection examples for the Camera ... 9 Installation for PTC-100S ...9 Installation for PTC-110R ... 10 4. OPERATION PROCEDURES ... 14 [1] Power supply to the Camera ... 14 [2] Turning ON/OFF of the Camera power ...

  • Page 6: Part Names And Functions

    CAMERA HEAD LENS INFRARED SENSOR RS-232C OUT (Mini DIN 8P) RS-232C IN (Mini DIN 8P) S-VIDEO (Mini DIN 4P) COMPOSITE-VIDEO (RCA pin jack) BASE 1/4"-20 UNC THREAD for CAMERA MOUNT (PTC-100S only) DIP SWITCH DC IN INFRARED SENSOR - 5 -...

  • Page 7: Wireless Remote Controller

    Wireless Remote Controller POWER OPEN NEAR CLOSE AUTO (Iris) AUTO (Focus) TELE WIDE Button Name POWER To turn ON/OFF the Camera power. OPEN To open the iris manually. CLOSE To close the iris manually. AUTO To iris automatically. NEAR To move the focus near. To move the focus far.

  • Page 8: Wireless Remote Controller

    2. WIRELESS REMOTE CONTROLLER Point the infrared emitting part of the wireless remote controller at the infrared sensor of the Camera, located at the front, and the rear panel, and press the button for the desired function. Receivable range Note: The infrared sensors may receive the infrared rays only within a narrower receivable range or may not receive them at all depending on the ambient environment, such as being placed under the sunlight or near an inverter fluorescent lamp.

  • Page 9: Preparation

    Preparation Remove the battery case cover by pressing downward on the [ direction as indicated by the arrow. Install 2 pcs. of batteries (type R03,AAA) into the case in the direction as indicated there. Note: Install the batteries with the proper Note: For dry cells, be sure to use the size AAA.

  • Page 10: Setting Up

    3. SETTING UP Connection examples for the Camera PTC-100S/110R Installation for PTC-100S Install the Camera on a flat, stable place. Note: Do not install the Camera upside down using the Camera mount (1/4"-20UNC thread), or the screws may be loosened due to the PAN-TILT operation or the like, and the Camera may drop and be damaged.

  • Page 11: Installation For Ptc-110R

    Installation for PTC-110R Note: When carrying the Camera, be sure to hold the base. Note: Do not turn the Camera head in the PAN-TILT direction by hand, or the Camera head may be broken. (1) Mounting the Fixing Plate SCREW M3x5 (supplied) , 4 PCS FIXING PLATE HEXAGON HEAD BOLT M5x40, 4 PCS MAIN UNIT...
  • Page 12 (2) Making mounting holes to the Ceiling Tile 102mm (4 in.) 54mm (2-1/8 in.) • Make 4 holes of Ceiling Tile as shown. MOUNTING HOLE 8mm (5/16 in.), 4 LOCATIONS FRONT - 11 - 8mm (5/16 in.) to the 70mm (2-3/4 in.) BACK CEILING TILE (t 1/2 in.
  • Page 13 (3) Fixing the Main Unit • Put the Ceiling Tile between the Main Unit and the Ceiling Plate, and fix the Main Unit by fastening 4 wing nuts. WING NUT M5 (supplied), 4 PCS CEILING PLATE MOUNTING HOLE: 5/16 in., 4 LOCATIONS CEILING TILE (t 1/2inch-1inch) t = thickness...
  • Page 14 (4) Mounting the Safety Wires • Loop up one end of the Safety Wires through the respective safety wire looping holes made on the Ceiling Plate, and then loop up the other end of the same around the beams or anything that is used to mount ceiling tile channel for structure safety.

  • Page 15: Operation Procedures

    When power is supplied to the Camera, the Camera turns to the lower left (in case of PTC-100S) or right (PTC-110R) and then to the front automatically (viewed from the front), returning the Camera position to the initially set position.

  • Page 16: Operating Pan/Tilt

    [3] Operating PAN/TILT speed manually. (Refer to the settings in the OSD Menu screen.) • When HOME button is pressed, the Camera turns to the front (and the lens moves to the WIDE side). • If the Camera direction is changed manually by mistake, press button.

  • Page 17: Lens Operation

    [4] Lens operation FULL AUTO FOCUS status is established. (However, focusing may be difficult for such objects as listed below.) Objects with no contrast between light and dark, such as white walls and night views Objects reflecting an intensive light Objects moving fast Objects with many horizontal stripes, such as blinds...

  • Page 18: Blc (Back Light Control)

    [5] BLC (Back Light Control) [6] Preset operation sec). To cancel this, press • Then, press 1 through 6 buttons. Now, the registration is over, and the LED on the Camera goes out. (The preset contents, if already registered, are erased and overwritten.) (2) Execution of preset •...

  • Page 19: The Id Number Setting

    5. THE ID NUMBER SETTING When multiple Cameras are laid out adjacently and operated via the wireless remote controller, the Cameras receiving the infrared rays operate in unison in the same way. When each Camera is allocated with a different ID No., the Camera can be controlled independently when its ID No.

  • Page 20: Osd (On-Screen Display)

    6. OSD (On-Screen Display) OSD display menu <<MAIN MENU>> (1) MAIN CONTROL (2) CAMERA SETUP (3) TITLE SET (4) PAN TILT MOTOR (1) MAIN CONTROL <1> TITLE <2> SELECT <3> SET INDICATE <4> REMOTE ID <5> OFF TIMER MENU button is used to turn ON/OFF the OSD display.
  • Page 21 (1) CAMERA SETUP <1> BLC <2> AGC <3> AP GAIN <4> FL <5> NEXT PAGE <6> MEMORY <7> CLEAR <8> WB 1. ATW change the White 2. AWC Balance mode. 3. INDOOR 4. OUTDOOR 5. LIGHT <9> R SHIFT *1 <10>...
  • Page 22 (3) TITLE SET SELECT ADJUST (Return to MENU ) (4) TITLE SET <1> MOTOR SPEED <2> SPEED <3> L/R DIRECTION • To set the title for each preset position and Camera. Make the title to be set blink, and press button to go to the set character.

  • Page 23: Dip Switch Settings

    7. DIP SWITCH SETTINGS The PAN-TILT settings, the LENS settings, the preset settings, the ID settings and the Camera settings by means of the OSD can be reset to the factory-settings by turning ON Switch No. 2 on the bottom of the Camera before turning ON the power supply to the Camera and then turning OFF the same switch after turning ON the power supply to the Camera.

  • Page 24: Rs-232C Specifications

    Pin assignment Pin No. Code Name Data Terminal Ready Data Set Ready Transmitted Data Ground Received Data Ground PTC-100S/110R (INPUT) Personal Computer Mini DIN 8P D-Sub 9P 1. DTR 2. DSR 3. TXD 4. GND 5. RXD 6. GND 7. NC 8.

  • Page 25: Troubleshooting Hints

    • The Camera head has been moved directly due to some the preset position If the trouble still remains after checking the above, consult your nearest dealer or authorized ELMO service center. Possible cause/remedy of monitor. jack of the Camera.

  • Page 26: Specifications

    10. SPECIFICATIONS General Item Power source 12V DC Current consumption Max. 1A Outside dimensions 124mm(W) X 153mm(D) X 136mm(H) (4.9in X 6.0in X 5.4in) Weight /mass 790g (main body only) (1.7lbs) Television system NTSC compatible Output terminal Composite-video output S-video output RS-232C Input control terminal RS-232C...

  • Page 27: Pan/Tilt

    Hexagon head bolt M5x40 (with PTC-110R only) Instruction manual *Weight and dimensions are approximate. *Design and specification are subject to change without prior notice. Trademark Acknowledgements ,ELMO are registered trademarks of ELMO CO.,Ltd. Specifications Left 150° Right150° Up 90° Down30°...
