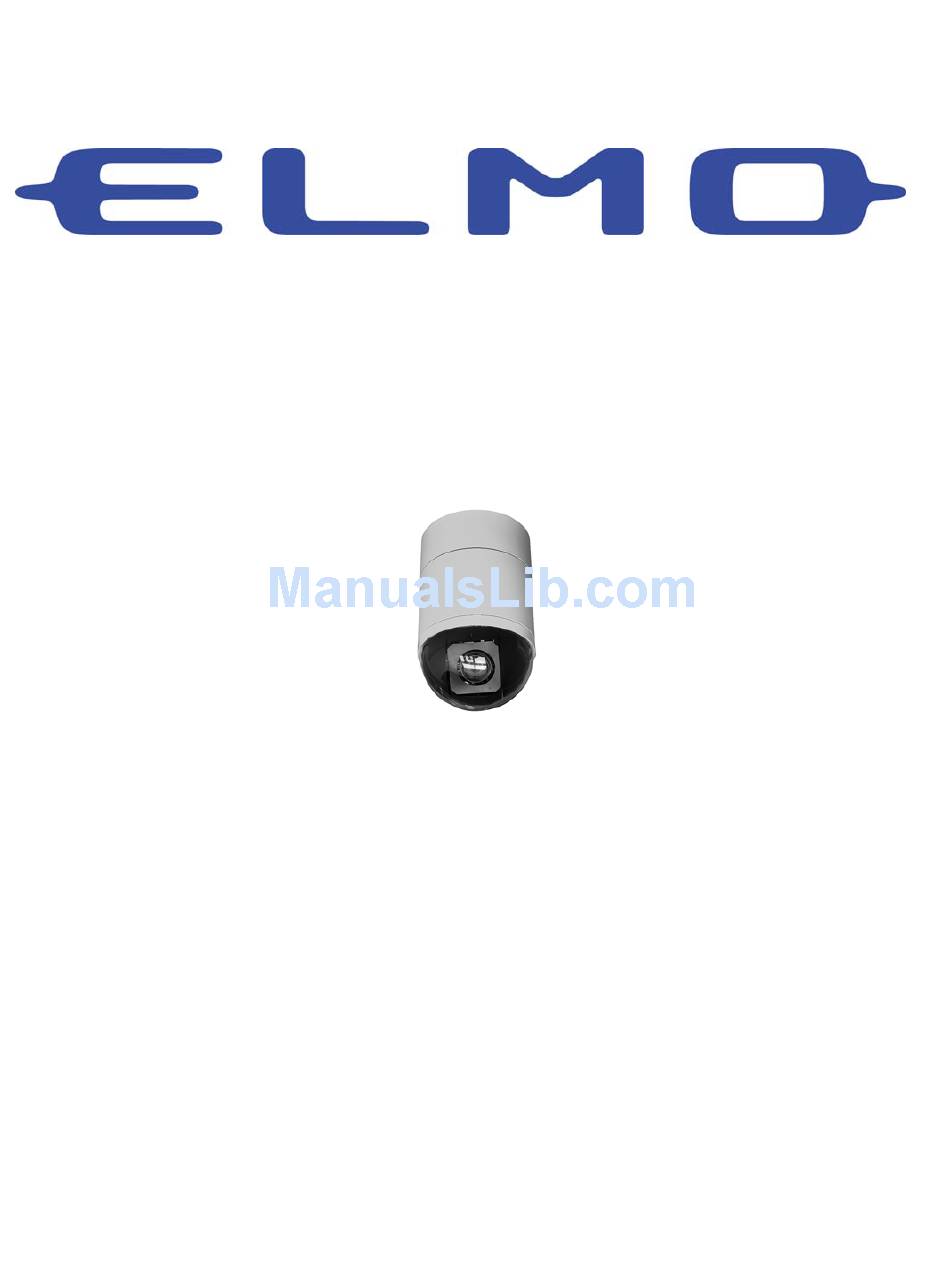

- Page 1 Integrated High Speed Dome Camera ESD-370 Indoor Dome User’s Manual...
- Page 2 User’s Manual Notice The information given in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Copyright Under copyright laws, the contents of this user manual may not be copied, photocopied, translated, reproduced or reduced to any electronic medium or machine-readable format, in whole or in part, without prior written permission of the company.
- Page 3 Cautions • Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. • Do not disassemble the camera To prevent electric shock, do not remove screws or covers. There are no user serviceable parts inside.
-
Page 4: Table Of Contents
User’s Manual 1. Overview ... 5 Product Features... 6 Product Application ... 7 2. Connecting the High Speed Dome ... 8 Package Content... 8 Switch Definition... 9 RS-485 Setting ... 9 Dome ID Setting ... 10 Dome Control Protocol ... 10 22-Pin Connector Definition ...11 Alarm Pin Definition... - Page 5 3.3.13 HOME SETTING ... 27 3.3.14 SEQUENCE ... 29 3.3.15 AUTOPAN... 30 3.3.16 CRUISE ... 32 3.3.17 IR FUNCTION (Removable IR Cut)... 33 3.3.18 ALARM DETECT (E/F/U Model Only) ... Error! Bookmark not defined. 3.3.19 WDR Setting (DR Model Only) ... 33 3.3.20 PRIVACY ...
-
Page 6: Overview
User’s Manual Overview ESD-370 is a new subcompact integrated high speed dome camera designed to deliver superb performance and durability with an intelligent and stylish housing that is suitable in any security and surveillance installation. ESD-370 series dome cameras support one cabling for easy installation, and can be integrated with CCTV products, such as DVRs, Control Keyboards, and CCTV accessories for a total surveillance solution. -
Page 7: Product Features
Large set of built-in protocols provide connectivity to other surveillance systems. The built-in protocols include ELMO, Pelco, VCL, Philips, AD-422 (Manchester), etc, which allow the Integrated High Speed Dome Camera series to be integrated with other suppliers' surveillance systems. -
Page 8: Product Application
User’s Manual • AD/AD-422 • Chiper Privacy Mask for Privacy Protection • Up to 24 privacy zones of camera view programmable Dynamic Dome Configuration • Flexible In/Outdoor mountings • Compact lightweight design for easy installation • Weather resistant housing for temperature, sun ray, and rain Integrated with Web, Enhanced Internet Capability (Optional) •... -
Page 9: Connecting The High Speed Dome
Connecting the High Speed Dome Please refer to the following sections to connect, set and operate the dome camera. In order to control the integrated high speed dome, basically a control keyboard or other control device is required. Package Content Before proceeding, please check the box contains the items listed here. -
Page 10: Switch Definition
User’s Manual Switch Definition First of all, configuring the dome ID and communication protocol is required before connecting the dome camera to other devices. The switches used for configuring these settings are located on the bottom of the dome camera. Reserved RS-485 Setting Dome ID Setting... -
Page 11: Dome Id Setting
Half-duplex Dome ID Setting Use the switch to change your speed dome ID by turning the arrow to the desired number respectively. For instance, if the dome ID is 123, the ID switch should be set as below. NOTE: No two domes should be given the same ID, or communication conflict may occur. -
Page 12: 22-Pin Connector Definition
22-Pin Connector Definition A 50-cm data cable (as belowing figure) is shipped with the integrated high speed dome for a quick installation for demo or testing usage. The 22-pin connector definition is listed as below. ELMO AD422 DM P Pelco D... - Page 13 Yellow Orange Green Brown Alarm Pin (Not wired) 11~20 VGND Video User’s Manual 1007 24AWG...
-
Page 14: Alarm Pin Definition
User’s Manual Alarm Pin Definition The alarm pins are serviceable for connecting alarm in- and output devices. Following lists the definition of alarm pin on the 22-pin connector located on the bottom of the dome camera. Cable Color Green/Black Brown/White Purple/White RS-485 Connector RS-485 is the interface that communicates the dome camera and its control device. -
Page 15: Operation And Configuration
Operation and Configuration OSD Display Format The information shown on the screen are described in terms of OSD display, position and function description in the table below. Position Function Focus Modes Backlight Alarm Zoom Ratio Title Camera ID OSD Display Back Light Compensation OFF Back Light Compensation ON ALARM... -
Page 16: Osd Menu Tree
User’s Manual OSD Menu Tree The OSD setup menu structure of S and DR models are listed below. The star symbol indicates the factory default. For detailed function description, please see section 3.3 Configuration Menu. Item Layer 1 DEFAULT <ON>, <OFF> CAMERA BACKLIGHT AUTO... - Page 17 Item Layer 1 PRESET POINT SEQUENCE LINE AUTOPAN LINE CRUISE LINE DWELL TIME EXIT HOME FUNC. SELECT MODE PRESET POINT HOME SETTING SEQUENCE LINE AUTOPAN LINE CRUISE LINE RETURN TIME EXIT SEQUENCE LINE SEQUENCE POINT PRESET POS. SEQUENCE SPEED DWELL TIME RUN SEQUNECE EXIT AUTOPAN LINE...
- Page 18 User’s Manual Item Layer 1 MASK CLEAR+RESET MASK DSIPLAY EXIT TIME DISPLAY SET YEAR SET MONTH TIME SET DAY SET HOUR SET MINUTE EXIT+SAVE SCHEDULE SWITCH SCHEDULE POINT SCHEDULE HOUR SCHEDULE MIN SCHEDULE MODE SCHEDULE NO FUNCTION PRESET SEQUENCE LINE AUTOPAN LINE CRUISE LINE IR FUNCTION...
-
Page 19: Configuration Menu
The detailed functions and parameter settings of your high speed dome can be set by the OSD (On Screen Display) menu with a control device, such as ELMO control keyboard. The functions in OSD menu are described in the following sections. -
Page 20: Backlight
User’s Manual camera parameters. 3.3.2 BACKLIGHT The Backlight compensation function prevents the center object from being too dark in surroundings where excessive light is behind the center object. The Backlight Compensation Level ranges from 000 to 100. NOTE: If this function is enabled, the WDR function (for DR model only) will be disabled automatically. -
Page 21: Ae Mode
function, users can adjust the enhancement of the edges of objects in the picture. When shooting text, this function may help by making them sharper and achieve a better image. There are 32 levels of adjustment; the options are <00> ~ <31>, <00> represents “no enhancement”. -
Page 22: Wbc Mode
3.3.6 WBC MODE A digital camera needs to find reference color temperature, which is a way of measuring the quality of a light source, for calculating all the other colors. The unit for measuring this ratio is in degree Kelvin (K). You can select one of the White Balance Control modes according to the condition. -
Page 23: Setup Menu
• Display the ID address of the selected dome on the right bottom of the monitor screen. • Hide the ID address of the selected dome. 3.3.8 SETUP MENU Users can adjust camera lens model parameters under SETUP MENUs. Depending on the model of dome cameras, the SETUP MENUs are different. -
Page 24: Zoom Speed
User’s Manual IMAGE represents digital IMAGE FLIP, enables users to keep tracking object seamlessly and no delay occurs in comparing with mechanical flip. NOTE: The Privacy Mask function will be automatically disabled if the Image Flip function is enabled, and “Masking will be disabled” will be displayed on the screen. -
Page 25: Slow Shutter
resolution of the zoomed image quality. On the other hand, Digital zoom takes a portion of image and expands that image to the full size of the image; however the image quality will be reduced. Digital zoom ratio is adjustable from <1> to <12>. •... -
Page 26: Title Display
User’s Manual 3.3.10 TITLE DISPLAY Users are allowed to name a certain view area and display its title for easy recognition. At this item, users can choose to display or not to display the titles set in advance. • A title set for certain view will be displayed when the dome back to the view area. •... -
Page 27: Alarm Setting
<DELETE> and press <ENTER> to delete the selected character. STEP7: When the setting is completed, move the cursor to <SAVE> and press <ENTER> to save. 3.3.12 ALARM SETTING The integrated high speed dome provides eight alarm inputs and two alarm outputs (N.O. and N.C) to connect alarm devices. -
Page 28: Home Setting
User’s Manual • ALARM ACTION Select one of these modes that choose a kind of actions that should be executed when an alarm is triggered. The alarm actions can be set to execute the preset position, sequence, auto-pan or cruise function. Use the right direction key of the control keyboard to change the setting, and the bellowing items will change in cooperating with your selection. - Page 29 stops or missing events. HOME FUNCTION SELECT MODE PRESET POINT RETURN TIME EXIT • HOME FUNCTION The item is used to enable or disable the HOME function. Use the left/right direction keys of the control keyboard to change the setting. •...
-
Page 30: Sequence
User’s Manual manually by selecting this item. • EXIT Exit the HOME SETTING menu. 3.3.14 SEQUENCE The function executes pre-positioning of the pan, tilt, zoom and focus features in a certain sequence for a camera. Before set up this function, users must setup at least two preset points. -
Page 31: Autopan
Speed 4 Speed 5 Speed 6 Speed 7 Speed 8 Speed 9 Speed 10 Speed 11 Speed 12 Speed 13 Speed 14 Speed 15 • DWELL TIME The DWELL TIME is the duration time that the dome will stay at the sequence point, and the range is from <0>... - Page 32 User’s Manual as endpoint. • START POINT Follow the description to set the start position of the AUTOPAN path. 1. Move the cursor to <START POINT> and press <ENTER> while <TO FIND> item flashes, the item will turn <TO SAVE> automatically. 2.
-
Page 33: Cruise
Speed 3 Speed 4 • RUN AUTOPAN After the setting is completed, select this item to manually execute the Auto-pan function. • EXIT Exit the AUTOPAN setup menu. 3.3.16 CRUISE A Cruise is a route of manual operations that can be stored and recalled to execute repeatedly. -
Page 34: Ir Function (Removable Ir Cut)
User’s Manual 3.3.17 IR FUNCTION (Removable IR Cut) With the IR cut filter, the dome can still catch clear image at night time or very dark light condition. During day time, the IR cut filter will be on to block the infrared light for clear image;... -
Page 35: Privacy
function is enabled, because the WDR function has better effect than the Backlight compensation. • WDR SWITCH Enable or disable the WDR function with the item. • WDR FUNCTION This item is used to define the WDR function mode. AUTO If select <AUTO>, the dome camera operates the WDR function automatically. - Page 36 User’s Manual • PRIVACY SWITCH The item is used to enable or disable masking function. Set this item to <ON> before configuring mask zone. • SHADE The color of privacy mask can be selected through this item. The available colors are black, gray and white.
-
Page 37: Time Function
• MASK CLEAR+RESET The item is used to clear the mask settings of the selected privacy mask. Use LEFT/RIGHT direction keys to select a mask and press <ENTER> to erase its configuration. • MASK DISPLAY This item is used to set the occasion to display privacy mask. FIRST If select this mode, the camera will detect the mask zone of the next preset position and display the mask in advance, then pan the dome to the preset point. -
Page 38: Schedule Function
User’s Manual • HOUR / MINUTE The items are for setting up the system time. • EXIT+SAVE Exit this page. 3.3.22 SCHEDULE FUNCTION The unique Scheduling function enables users to program a preset point or function (Sequence/Auto-pan/Cruise) automatically actions in certain period of time. •... -
Page 39: Exit Osd
Enable the Cruise function for the selected schedule. IR FUNCTION Select <AUTO> or <ON> to enable the function for the schedule. 3.3.23 EXIT OSD To exit the OSD setup menu, users can either select this item, or press the ESC button on control keyboard quickly. -
Page 40: Appendix A: Technical Specification
Auto / Manual Auto / Manual Auto / Manual 1/2~1/4k sec. 1/1.5~1/4k sec Auto / Manual On / Off ELMO, Pelco, VCL, Philips, AD-Manchester, AD-422, etc. 360° endless -10°~100° 1°~90°/s 0.225° 0.45° 5°~400°/s, High Resolution (Both D&E Type Motor) 5°~400°/s, Standard Resolution (D Type Motor). 5°~400°/s, High Resolution (E Type... - Page 41 User’s Manual resolutions. Standard Resolution: 768 steps/circle. High Resolution: 1600 steps/circle GENERAL Environment Indoor Controller Interface RS-485 Operating Temperature 0°C~40°C (32°F~104°F) ∅131×226mm (5.2x7.6 Inches) Dimension Weight 1.6kg (3.5 lbs) Power Source AC 24 V Power Consumption 30 W Regulatory CE, FCC...
-
Page 42: Osd Menu Notes
User’s Manual OSD Menu Notes The following OSD menu tables are provided for users to record the dome settings. Item Layer 1 DEFAULT CAMERA <ON>, <OFF> BACKLIGHT AUTO FOCUS MANUAL AUTO APERTURE MANUAL AUTO SHUTTER AE MODE IRIS AUTO WBC MODE MANUAL ID DISPLAY <ON>, <OFF>... - Page 43 Item Layer 1 SEQUENCE POINT PRESET POS. SPEED DWELL TIME RUN SEQUNECE EXIT AUTOPAN LINE START POINT END POINT AUTOPAN DIRECTION SPEED RUN AUTOPAN EXIT RECORD START RECORD END CRUISE RUN CRUISE EXIT AUTO IR FUNCTION (DR model only) WDR SWITCH WDR FUNCTION WDR SETTING (DR model only)
- Page 44 ELMO USA Corp. 1478 Old Country Rd. Plainview, NY 11803...
