Installation Instructions

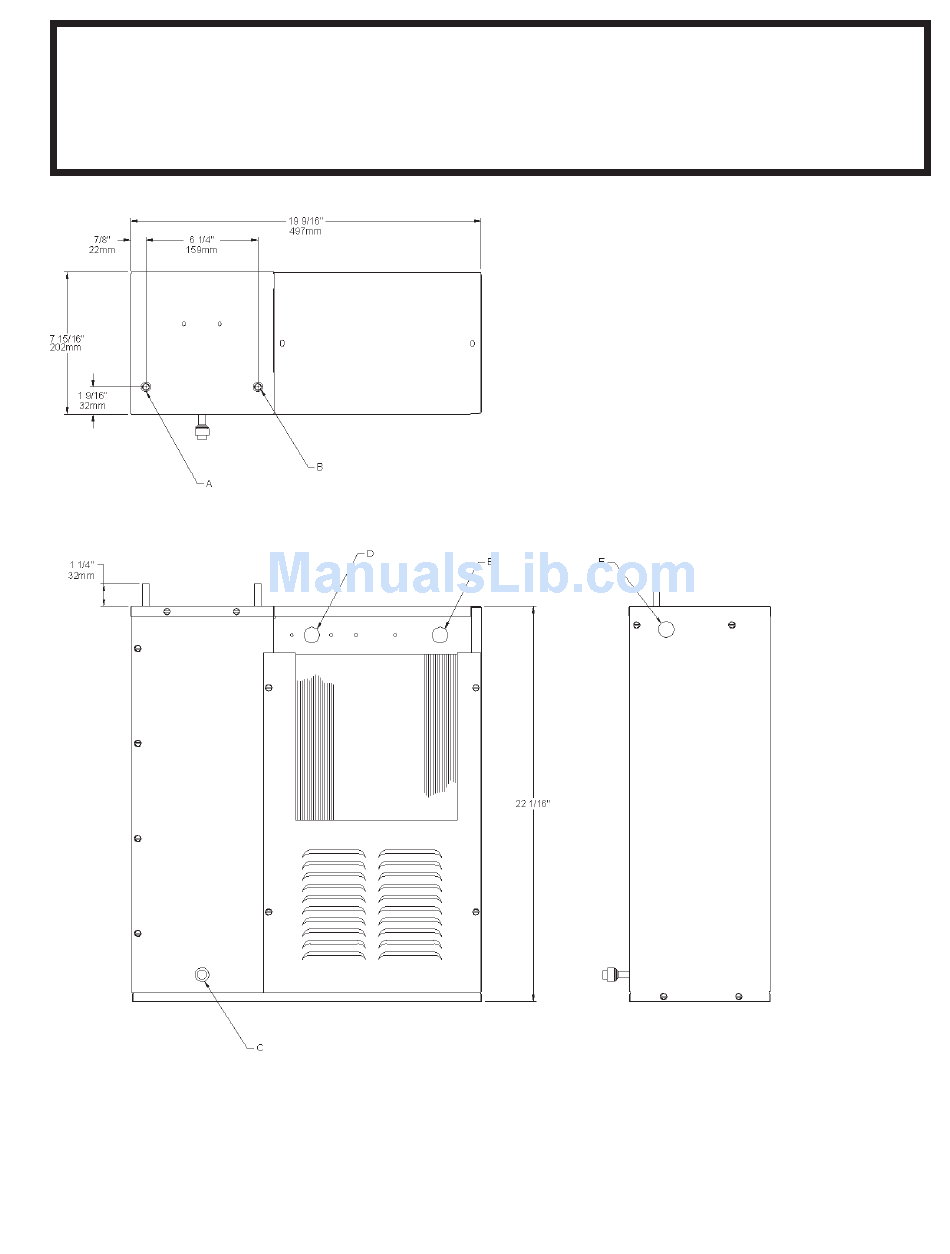

LEGEND:
A = 3/8" O.D. TUBE WATER OUT
B = 3/8" O.D. TUBE WATER INLET
C = 3/8" O.D. TUBE TANK DRAIN
D = TEMPERATURE ADJUSTMENT
E = ELECTRICAL

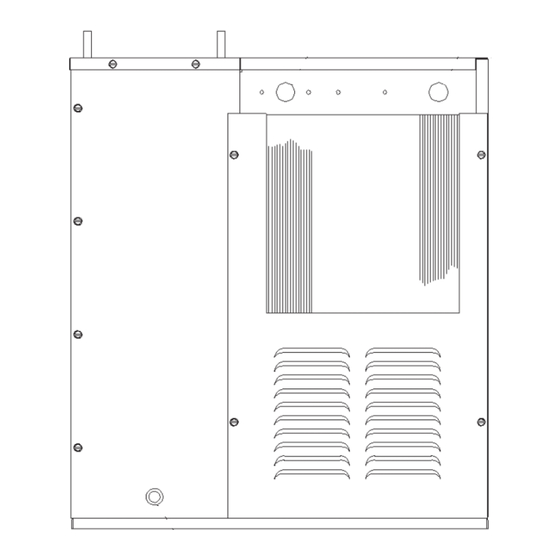

HRC2-10-1D
Refrigeration Packages
NOTE: It is important to insure proper ventilation. Allow a
minimum clearance of 6 inches (152 mm) in front and 3
inches (76mm) in the rear of the unit. If unit is to be in-
stalled in an enclosure, allow the following clearances
around unit 1 inch (25mm) each side, 3 inches (76mm) in
the rear, 3 inches (76mm) inches above wall.
This chiller has been designed for use with potable water
and includes an o-ring seal on the drain plug. This fitting
should be replaced if the unit is to be used with more
aggressive fluids.
98244C (3/06)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRC2-10-1D and is the answer not in the manual?

Questions and answers

Summary of Contents for Elkay HRC2-10-1D

  • Page 1: Installation Instructions

    C = 3/8" O.D. TUBE TANK DRAIN D = TEMPERATURE ADJUSTMENT E = ELECTRICAL HRC2-10-1D NOTE: It is important to insure proper ventilation. Allow a minimum clearance of 6 inches (152 mm) in front and 3 inches (76mm) in the rear of the unit. If unit is to be in-...
  • Page 2 27669C Grille - Front 27668C Grille - Rear (Not Shown) 98244C (3/06) HRC2-10-1D *INCLUDES RELAY & OVERLOAD. IF UNDER WARRANTY, REPLACE WITH SAME COMPRESSOR USED IN ORIGINAL ASSEMBLY. NOTE: All correspondence pertaining to any of the above water cooler or orders for repair MUST include model number and serial number of cooler, name and part number of replacement part.
