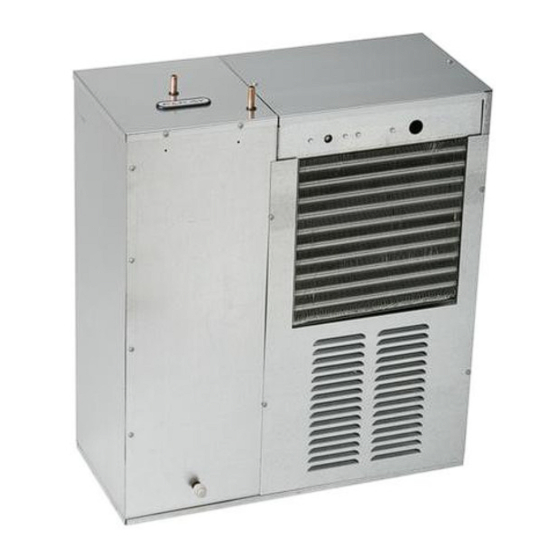

- Page 1 ER5_1E, ER5_2E, ER5_3E, ER10_1G_MDN, ER10_2G_MDN, ER10_3G_MDN ER5/ER10 Refrigeration Packages INSTALLATION / USE & CARE MANUAL (630) 574-8484 Elkay Manufacturing Company Page 1 2000000532 (Rev. B - 08/22)
- Page 2 9.2.5 Actuation of Quick Connect Water Fittings ......9 Elkay Manufacturing Company (630) 574-8484 Page 2...
-
Page 3: Think Safety
1.1 General injury. The signal word that CAUTION Elkay Manufacturing Company (Elkay) cannot indicates a hazard with anticipate every possible circumstance that might a low level of risk which, if not avoided, could result in involve a potential hazard during the installation of minor or moderate injury. this product. The warnings and instructions in this The signal word that indicates NOTICE Installation / Use &... - Page 4 OFF. Placing fingers in or around the cutting blades could result in serious personal injury. Elkay Manufacturing Company (630) 574-8484 Page 4 2000000532 (Rev. B - 08/22)
-
Page 5: General Information
2.2 Disclaimer can change at any time. In keeping with our policy of continuing product improvement, Elkay reserves the The information contained in this Installation / Use & right to change specification without notice. Care Manual is given free of charge. It is based upon technical data which we believe to be reliable and is All dimensions are given in inches (") and millimeters intended for use by persons having knowledge of this (mm). - Page 6 1-1/4” 32mm 22-1/16” 560mm For remote installation a minimum clearance of 6 inches (152 mm) to the front must be maintained, 1 inch (25 mm) each side, 3 inches (76 mm) to the rear above the unit. Wall grille EG-1 or EG-2 to be used when unit is inserted into an enclosure. Install unit as close as possible to wall grille. A 6 inch (152 mm) clearance beyond the front of the wall grille is required for adequate air circulation. Elkay Manufacturing Company (630) 574-8484 Page 6 2000000532 (Rev. B - 08/22)
-
Page 7: Tools And Supplies
Ambient Air Temp. 50-90 °F (10-32 °C) Water Pressure 20-100 psig (0.14-0.69 MPa) Maximum Water Temp. 90 °F (32 °C) Refrigerant HFC-R134a Ingress Protection IP20 For Indoor Commercial Use only (630) 574-8484 Elkay Manufacturing Company Page 7 2000000532 (Rev. B - 08/22) -
Page 8: Installation: Electrical Connection
Water strainer is recommended to be installed in the supply line. 4. Connect ground wire (A) to ground screw (provided). 7. Connect chiller to building supply with a shut-off valve and install a union connection between them. Make sure the connection between the chiller and water dispenser is proper without leaks. Refer page 10 for tubing connection. Ground Screw Elkay Manufacturing Company (630) 574-8484 Page 8 2000000532 (Rev. B - 08/22) - Page 9 To remove the plug from Chiller, relieve the water pressure, pull the collar towards the fitting and then pull the fitting from the tube. To install the plug, push the fitting straight onto the tubing until it reaches a positive stop, which should be approximately 3/4”(19mm). Refer page 10 for quick connect fittings. (630) 574-8484 Elkay Manufacturing Company Page 9 2000000532 (Rev. B - 08/22)
- Page 10 PULLING IT OUT HELPS TO RELEASE TUBE RELEASE TUBE Quick Connect Fittings Electrical Diagram Water Mains Connection 19, 7 18, 3, 4, 5, 6 Refer parts list on Page 11 for details Elkay Manufacturing Company (630) 574-8484 Page 10 2000000532 (Rev. B - 08/22)
- Page 11 NOTE: All correspondence pertaining to any of the above water cooler or orders for repair MUST include model number and serial number of cooler, name and part number of replacement part. (630) 574-8484 Elkay Manufacturing Company Page 11 2000000532 (Rev. B - 08/22)
