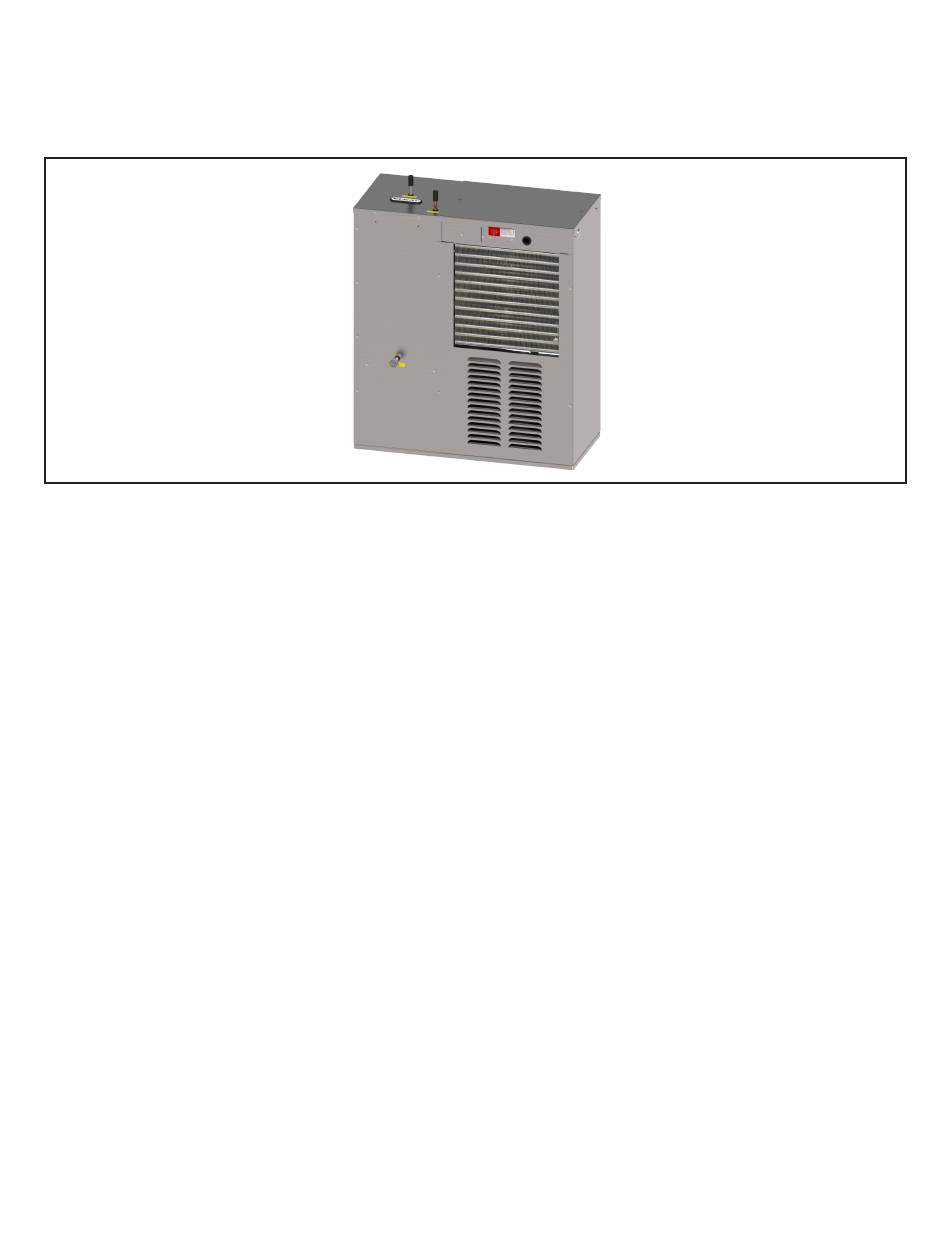

Installation / Care / Use Manual

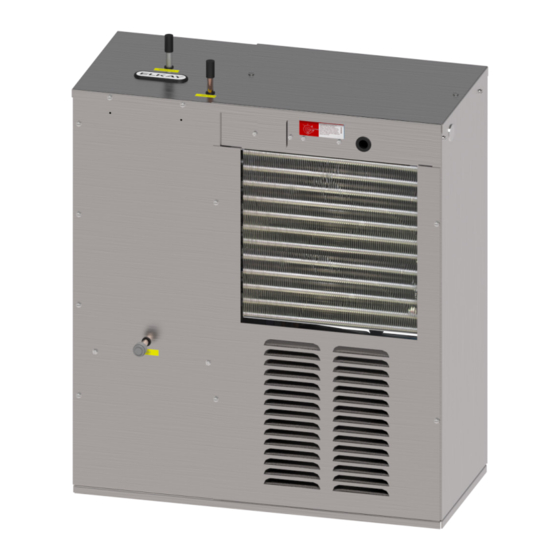

Description

Remote Water Chillers are designed to reduce the temperature of potable water that is routed through the water chiller. Remote Water Chillers are
designed to be installed in properly ventilated, non-visible locations.

Ratings

• Electrical: 220-240V 50Hz, 220-230V 60Hz, 1 phase
• Ambient Air Temperature: 50-122°F (10-50°C)
• Water Pressure: 20-100 psig (0.14-0.69 MPa)
• Maximum Water Temperature: 122°F (50°C)
• Refrigerant: HFC-R134a

Definitions

DANGER
– Indicates death or serious injury will result if proper precautions are not taken.
WARNING
– Indicates death, serious injury or property damage can result if proper precautions are not taken.
CAUTION
– Indicates some injury or property damage may result if proper precautions are not taken.
Authorized Service Personnel – Factory trained personnel or personnel having working knowledge of electrical, plumbing and machine (appliance)
maintenance procedures.

Safety

DANGER
• Please read these instructions completely before starting the installation or performing any service. Failure to follow the instructions and safety
precautions in this manual can result in serious injury or death.
• After installation, keep these instructions in a safe location for future reference.
• Electric supply must be identical in voltage, cycle, and phase to that specified on nameplate.
• A means for disconnecting electrical supply to the unit must be incorporated in the fixed wiring in accordance with wiring rules. This is to allow electrical
disconnection of the unit from electrical supply after installation.
WARNING
• For use with clean, clear potable drinking water only. Do not use with water that is microbiologically unsafe or of unknown quality without adequate
disinfection before the system.
• Installation and connection to water and electrical mains must be in compliance with local and national laws.
• All Installation and Service work must be performed by an authorized service personnel.
CAUTION
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of
experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• To prevent a metallic taste or increased metal content in the water due to an electrolysis process caused by electrical feedback from the grounding
of electrical equipment to water mains, connect to the water mains using a dielectric coupling.
ER19_4A
Original Instructions
Model : ER194H
• Ingress Protection: IP21
• For Commercial Use Only
• Rated IP21 for Indoor/Outdoor Use
• Full Load Amps: 5.0
Page 1
1000003882 (Rev. A - 03/17)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER194H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elkay ER194H

  • Page 1 ER19_4A Installation / Care / Use Manual Original Instructions Model : ER194H Description Remote Water Chillers are designed to reduce the temperature of potable water that is routed through the water chiller. Remote Water Chillers are designed to be installed in properly ventilated, non-visible locations.
  • Page 2 ER19_4A Installation For correct and safe installation, please read these instructions completely. DANGER • All installation work must be performed by an authorized service personnel. • Disconnect electrical supply serving the installation area to reduce risk of electrocution. • Unit not suitable for installations where water jets could be used. WARNING •...
  • Page 3 Insulation Box Cover 1000003761 Insulation Box (Rear) 27198C Grill (Rear) For Replacement Parts, contact your local distributor or call 1.800.834.4816 Elkay Manufacturing Co. 2222 Camden Court – Oak Brook, IL 60523 U.S.A – 630.574.8484 Page 3 1000003882 (Rev. A - 03/17)
  • Page 4 (‫صندوق العزل (خلفي‬ 1000003761 (‫شبكة (خلفية‬ 27198C 1.800.834.4816 ‫للحصول على قطع الغيار، اتصل على الموزع المحلي أو اتصل على الرقم‬ Elkay Manufacturing Co. 2222 Camden Court – Oak Brook, IL 60523 U.S.A – 630.574.8484 Page 3 1000003882 (Rev. A - 03/17)
  • Page 5 ER19_4A ‫التركيب‬ .‫للتركيب الصحيح واآلمن، الرجاء قراءة هذه التعليمات كاملة‬ ‫خطر‬ .‫يجب أن يتم إجراء أعمال التركيب من قبل موظفي الخدمة المعتمدين‬ • .‫افصل مصدر التيار الكهربي الذي يغذي منطقة التركيب وذلك لتقليل خطر الصعق الكهربي‬ • .‫هذه الوحدة غير مناسبة للتركيبات التي يمكن استخدام مرشات المياه فيها‬ •...
  • Page 6 ‫ك ُ ت ي ّ ب التركيب / العناية / االستخدام‬ ‫التعليمات األصلية‬ ER194H : ‫الطراز‬ ‫الوصف‬ .‫إن مبرّ دات الماء النائية م ُصم م َ ة لتقليل درجة حرارة الماء الصالح للشرب المار خالل مبرّ دة الماء. إن مبرّ دات الماء النائية مصممة لكي يتم تركيبها في مواقع ذات تهوية مناسبة وغير مرئية‬...
