Hanna Instruments pHep+ HI 98108 Instruction Manual

is a rugged pH tester with replace-
®
pHep +
able electrode and renewable reference junction.
The instrument can be calibrated at two points
by the user, simply acting on the offset and slope
calibration trimmers. In addition, the Automatic
Temperature Compensation feature enhables high
accuracy in measurements.
is in compliance with the CE direc-
®
pHep +
tives.
SPECIFICATIONS
Range 0.0 to 14.0 pH
Resolution 0.1 pH
Accuracy ±0.1 pH
(@20°C/68°F)
Typical EMC Deviation ±0.1 pH
Calibration Manual, 2 point, through
offset and slope trimmers
Temperature Compensation
Automatic, 0 to 50°C
Environment 0 to 50°C (32 to 122°F);
RH max 95%
Battery Type 4 x 1.5V alkaline
Battery Life approx. 200 hours of use
Dimensions 175 x 41 x 23 mm
(6.9 x 1.6 x 0.9")
Weight 95 g (3.4 oz.)
ACCESSORIES
HI 73108 Spare electrode
HI 7004M pH 4.01 solution, 230 mL bottle
HI 7007M pH 7.01 solution, 230 mL bottle
HI 7010M pH 10.01 solution, 230 mL
HI 70300M Storage solution, 230 mL bottle
HI 7061M Cleaning solution, 230 mL bottle
HI 731326 Calibration screwdriver (20 pcs)
pHep is a registered Trademark of
Hanna Instruments
pHep
HI 98108

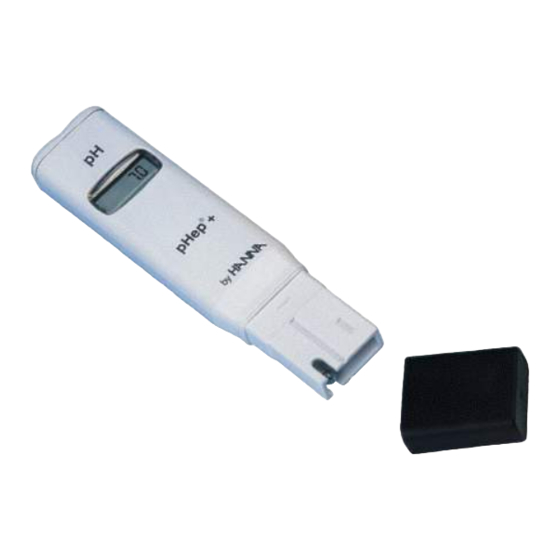

Pocket-sized pH Meter
with ATC
w w w . h a n n a i n s t . c o m
IST98108 R3 05/05
+
®
