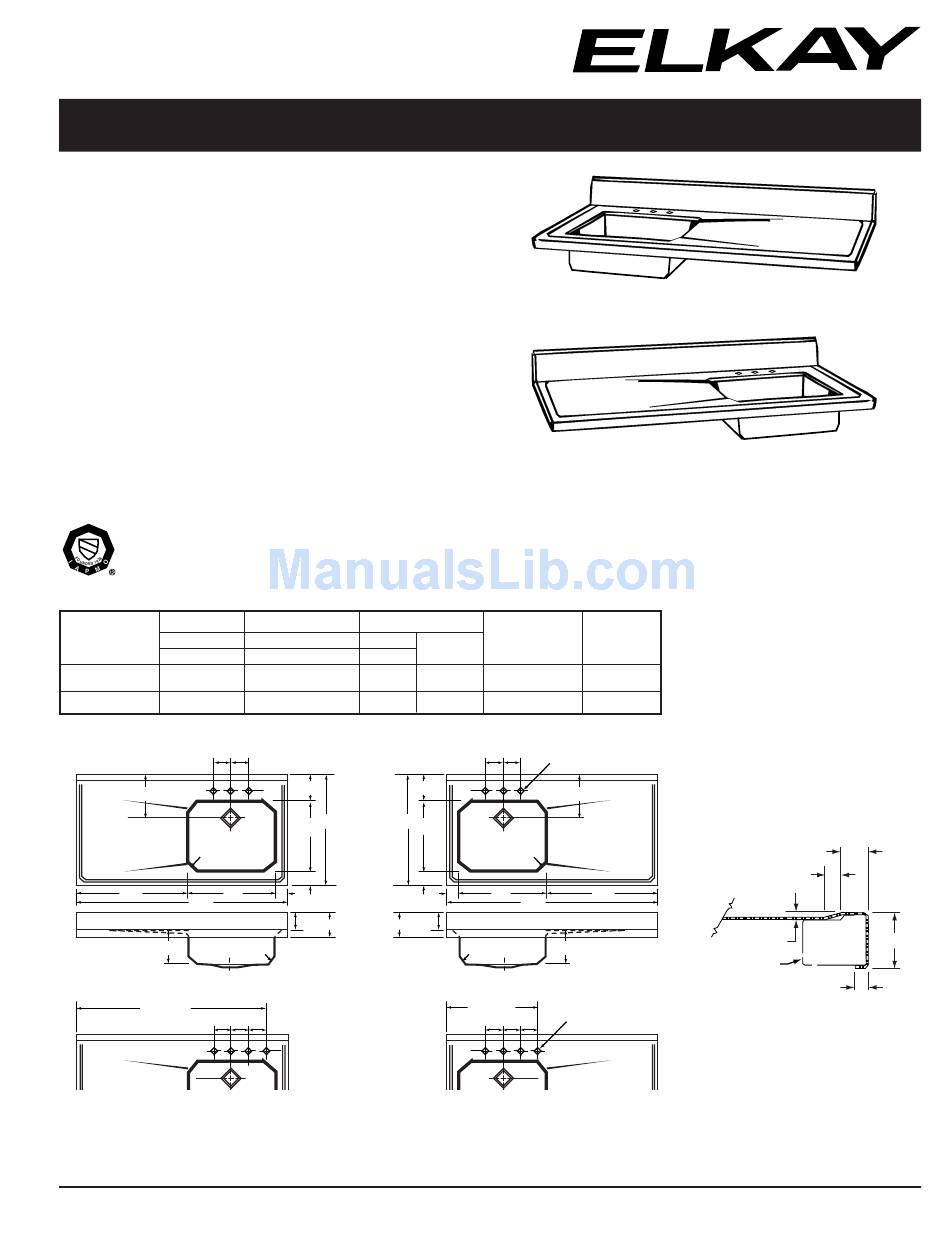

Elkay Lustertone S4819L Specifications

Lustertone Sink Tops
®
Single Bowl – Single Drainboard with
Integral Backsplash
Models S4819L and S4819R
SPECIFICATIONS
GENERAL
#18 gauge, type 304 stainless steel sinktop with integral bowl,
fan pitched integral drainboard and backsplash. All exposed
surfaces hand-blended to a lustrous highlighted Lustertone
satin finish. Designed for use with standard size base cabinet
and dishwasher sink base. (Custom sizes are available by
contacting an Elkay Representative.)
DESIGN FEATURES
Bowl Depth: 7-1/2".
Coved Corners: 1-3/4" radius.
Sinktop Thickness: 1-1/2".
Backsplash: 4" high, full length, 1/4" coved corner.
Outside edge of sink and drainboards have a 5/32" raised rim.
Drain Opening: 3-1/2".
Underside is fully undercoated.
Each unit has wood mounting strips attached to underside for
fastening top to cabinet.
Stocked in three or four faucet holes only. Other hole drilling
locations are available made to order.
Suffix "L" (left) or "R" (right) denotes sink bowls are to the left
or right of drainboard.
These sinks are listed by the International Association
U P of Plumbing and Mechanical Officials as meeting the
C
requirements of the Uniform Plumbing Code.
SINK DIMENSIONS (INCHES)*
Overall
L W
Model
Number A B
S4819L 48 25
S4819R 48 25
*Length is left to right. Width is front to back.
4" 4"
11"
1-3/4" R
F C
A
E 1-3/4" R
Model S4819R3
43-1/2"
4" 4" 4"
Model S4819R4
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay Manufacturing Company
www.elkay.com
Inside Each Bowl Drainboard
L W D L
C D E F Location
19 16 7 ⁄ 26
1
2
19 16 7 ⁄ 26
1
2
3 FAUCET HOLE MODELS
6" 6"
B
B
D
D
3" 3"
3" 3"
4" 4"
5-1/2" 5-1/2"
4 FAUCET HOLE MODELS
®
Model S4819R3
Ship.
Drain Wt.
Location Lbs.
Right Rear Center 50
Left Rear Center 50
4" 4"
1-3/8" DIA. HOLES
11"
1-3/4" R
C F
A
E
1-3/4" R
Model S4819L3
20-1/2"
1-3/8" DIA. HOLES
4" 4" 4"
Model S4819L4
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers' offerings, be certain these features are not
overlooked.
2222 Camden Court
Oak Brook, IL 60523
Model S4819L3
3/4"
7/16"
5/32"
WOOD
STRIP
3/8"
DETAIL OF RIM
Printed in U.S.A.
©2001 Elkay Mfg. Co.
(10/01)
®
