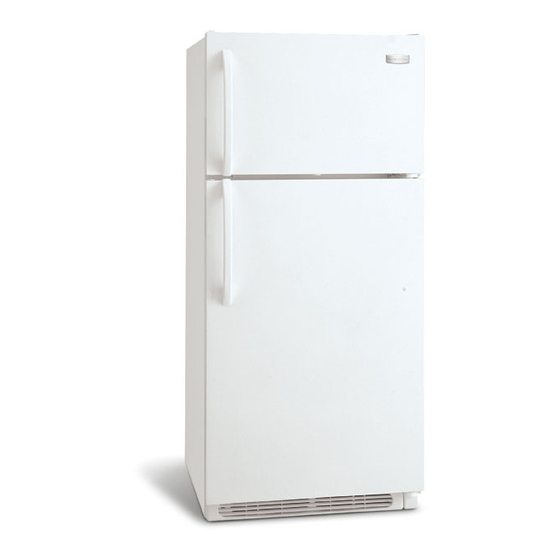

Frigidaire FRT17HB3C Factory Parts Catalog

Top-mount refrigerator
Hide thumbs Also See for FRT17HB3C:

Advertisement

Quick Links

Download this manual
PRODUCT NO.
BASE MODEL NO.
FRT17HB3CW1
FRT17HB3C
MARKET
North America
ENERGY GUIDE - # 240592273
OWNER'S GUIDE - # 240400109
SERVICE DATA SHEET - # 240379010
ELECTROLUX HOME PRODUCTS, INC
P.O. Box 212378, Augusta, GA 30917
SERIES
COLOR
R134a
white
Publication No.
5995394276
030815
-EN/SERVICE/KHB
390
FACTORY
PARTS CATALO
VOLTS
115
TOP MOUNT
REFRIGERATOR
Model No.
FRT17HB3C
©2003 Electrolux Home Products, Inc.
All rights reserved
G

Advertisement

loading
Need help?

Need help?

Do you have a question about the FRT17HB3C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigidaire FRT17HB3C

Summary of Contents for Frigidaire FRT17HB3C

  • Page 1 FACTORY PARTS CATALO PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS FRT17HB3CW1 FRT17HB3C R134a white MARKET North America ENERGY GUIDE - # 240592273 OWNER’S GUIDE - # 240400109 SERVICE DATA SHEET - # 240379010 TOP MOUNT REFRIGERATOR Model No. ELECTROLUX HOME PRODUCTS, INC FRT17HB3C P.O.
  • Page 2 Publication No. FRT17HB3CW1 5995394276 DOOR 08/03...
  • Page 3 FRT17HB3CW1 Publication No. 5995394276 DOOR POS. NO PART NO DESCRIPTION 240554101 Gasket-frzr door,white ,magnetic 240542104 Gasket-refr door,white ,magnetic 240535101 Rack-door 240535201 Rack-door 240337701 Door-dairy,w/o graphics ,white 240535001 Rack-door 240381301 Plug-button,white ,hinge brg hole ,(2) 240420101 Door,frzr ,white 240415201 Label-nameplate,white 240312403 Door Stop,white ,ref 240312404 Door Stop,white ,frzr...
  • Page 4 Publication No. FRT17HB3CW1 5995394276 CABINET 06/03...
  • Page 5 FRT17HB3CW1 Publication No. 5995394276 CABINET POS. NO PART NO DESCRIPTION 240355401 Cover-fan 240367001 Knob-damper control 5303001028 Nut, push-on 240367401 Damper-fan cover 5308000010 Fan Blade, red, evaporator fan 5300157666 Bushing-motor mtg, (2) 5303292396 Bracket-motor mtg, front 240462011 Cover-evap coil 240568601 Seal-coil cover 10*# 240524701 Wiring Harness, freezer section...
  • Page 6 Publication No. FRT17HB3CW1 5995394276 SHELVES 08/03...
  • Page 7 FRT17HB3CW1 Publication No. 5995394276 SHELVES POS. NO PART NO DESCRIPTION 5303282284 Shelf-freezer, "table type" 240545001 Diffuser,air, top 240362601 Diffuser,air, bottom 14 # 240505801 Switch,light/lamp 240436702 Light Bulb, A-15, clear, 40 W, 120 V, miniature 241500701 Socket-light/lamp 240368001 Control Box 17*# 240388701 Wiring Harness,control box 240360801...
  • Page 8 Publication No. FRT17HB3CW1 5995394276 SYSTEM 08/03...
  • Page 9 FRT17HB3CW1 Publication No. 5995394276 SYSTEM POS. NO PART NO DESCRIPTION 240444401 Condenser,dynamic 218944001 Drier-filter, R134a System 240496101 Wiring Harness, machine compt, w/electric cord 6* # 240388701 Wiring Harness, control box 6* # 240524701 Wiring Harness, freezer section 14 # 5303918203 Defrost Heater Kit 15 # 5303918275...

  • Page 10: Wiring Schematic

    Publication No. FRT17HB3CW1 5995394276 WIRING SCHEMATIC 08/03...

  • Page 11: Wiring Diagram

    FRT17HB3CW1 Publication No. 5995394276 WIRING DIAGRAM # = Fast-moving Parts 08/03 * = Non-Illustrated Parts...
