Elkay Lustertone DRKAD2822L Specifications

SPECIFICATIONS

GENERAL
Lustertone sink with triple ledge. Highest quality sink bowl
seamlessly formed of #18 gauge, type 304 (18-8) nickel bearing
stainless steel. Self-rimming.
DESIGN FEATURES
DRKR(Q) Bowl Depth: 7-5/8".
DRKAD(Q) Bowl Depths: 5-1/2", 6" or 6-1/2".
Coved Corners: 1-3/4" vertical and horizontal radius.
Bowl and Faucet Deck Recess: 3/16" below outside edge of sink.
Finish: Exposed surfaces are hand blended to a lustrous
highlighted satin finish.
Underside: Fully undercoated to dampen sound and prevent
condensation.
CLASSROOM/INSTITUTIONAL SINK PACKAGES
Models DRKR2822LC/RC and DRKAD2822LC/RC feature a
durable stainless steel work sink, faucet and No Lead Flexi-
Guard ® Bubbler.
DRKR2822LC/RC Sink Packages include:
(1) LKE413945RS Single-lever faucet with hi-arc contempo-
rary style restricted swing spout faucet. Spout height 10";
Reach 6-1/2".
(1) LKE1141A No Lead Flexi-Guard
valve design bubbler meets ANSI and ADA requirements.
Designed so that water never comes in contact with lead-
containing materials. Flexi-Guard safety bubbler flexes on
impact to prevent accidental injury when getting a drink.
Built-in adjustable water volume control.
(1) LK35 Duo strainer.
DRKAD2822LC/RC Sink Packages include:
(1) LKE413945RS Single-lever faucet with hi-arc contempo-
rary style restricted swing spout faucet. Spout height 10";
Reach 6-1/2".
(1) LKE1141A No Lead Flexi-Guard
valve design bubbler meets ANSI and ADA requirements.
Designed so that water never comes in contact with lead-
containing materials. Flexi-Guard safety bubbler flexes on
impact to prevent accidental injury when getting a drink.
Built-in adjustable water volume control.
(1) LKAD35 Duo strainer with offset tailpiece.
SINK DIMENSIONS (INCHES)*
U-Channel Quick-Clip
Model Model
Number Number
DRKR2822LC/RC –
†DRKR2822L †DRKRQ2822L
†DRKR2822R †DRKRQ2822R
DRKAD2822LC/RC –
†DRKAD2822L †DRKADQ2822L
†DRKAD2822R †DRKADQ2822R
* Length is left to right. Width is front to back.
† Unless otherwise specified, all sinks which do not have suffix "C" are less fittings (no faucet, bubbler or drain), but are drilled for faucet, bubbler
and drain as illustrated.
‡ Available in 5-1/2", 6" or 6-1/2" depths. Please consult your sales representative for other depths or modifications.
THIS PRODUCT, AS CONSTRUCTED IS SUBJECT TO INTERPRETATION OF A.D.A. REQUIREMENTS.
THE UNOBSTRUCTED KNEE SPACE REQUIRED TO SATISFY A.D.A. STANDARDS MAY NOT BE DESIRABLE.
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay
www.elkayusa.com
®
DRKAD(Q)2822 – A.D.A. Compliant Series Sinks
® Bubbler. Pushbutton
® Bubbler. Pushbutton
Inside
®
Overall Each Bowl
L W L W D
28 22 19 16 7 5 /
8
28 22 19 16 7 5 /
8
5
28 22 19 16 7 /
8
28 22 19 16
‡
28 22 19 16
‡
28 22 19 16
‡
2222 Camden Court
Oak Brook, IL 60523

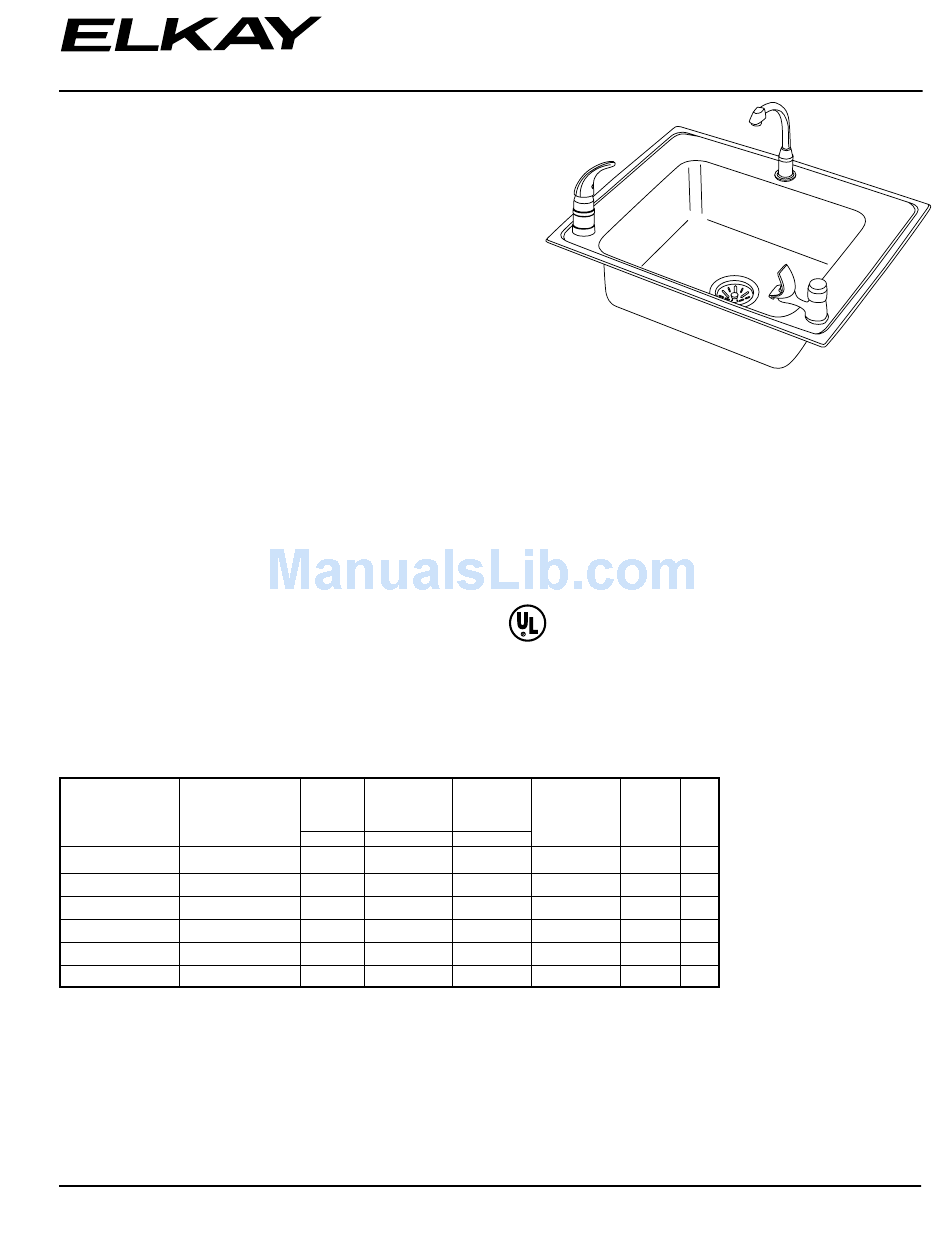

Lustertone ® Single Bowl Triple Ledge Sink
Models DRKR(Q)2822 Series and
Model DRKR(Q)2822RC
OTHER
DRKR(Q)2822 Series drain opening is 3-1/2" and centered in
bowl as illustrated.
DRKAD(Q)2822 Series drain opening is 3-1/2" and located cen-
tered left-to-right and off-centered front-to-back as illustrated.
Suffix "L" (left) and "R" (right) denotes location of slotted hole
side ledge. Slotted hole allows for vandal-resistant faucet and
bubbler.
NOTE: Unless otherwise specified, sink is furnished with 3
faucet holes as shown.
Bubbler and faucet are classified by Underwriters
Laboratories Inc. to NSF/ANSI61 for residential use.
Cutout in
Countertop
1
3 / "
2
(1 1 / " Radius
2
Drain Opening Minimum
Corners)
(see above Cabinet
L W for details) Size
27 3 / 21 3 / Centered
8 8
27 3 / 21 3 / Centered
8 8
3 3
27 / 21 / Centered
8 8
3 3
27 / 21 / Off-Centered
8 8
27 3 / 21 3 / Off-Centered
8 8
27 3 / 21 3 / Off-Centered
8 8
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers' offerings, be certain these features are not
overlooked.
and Sink Packages
Ship.
Wt.
Lbs.
33 23
33 16
33 16
33 25
33 16
33 16
Printed in U.S.A.
©2005 Elkay
(Rev. 1/05)
1-189A
