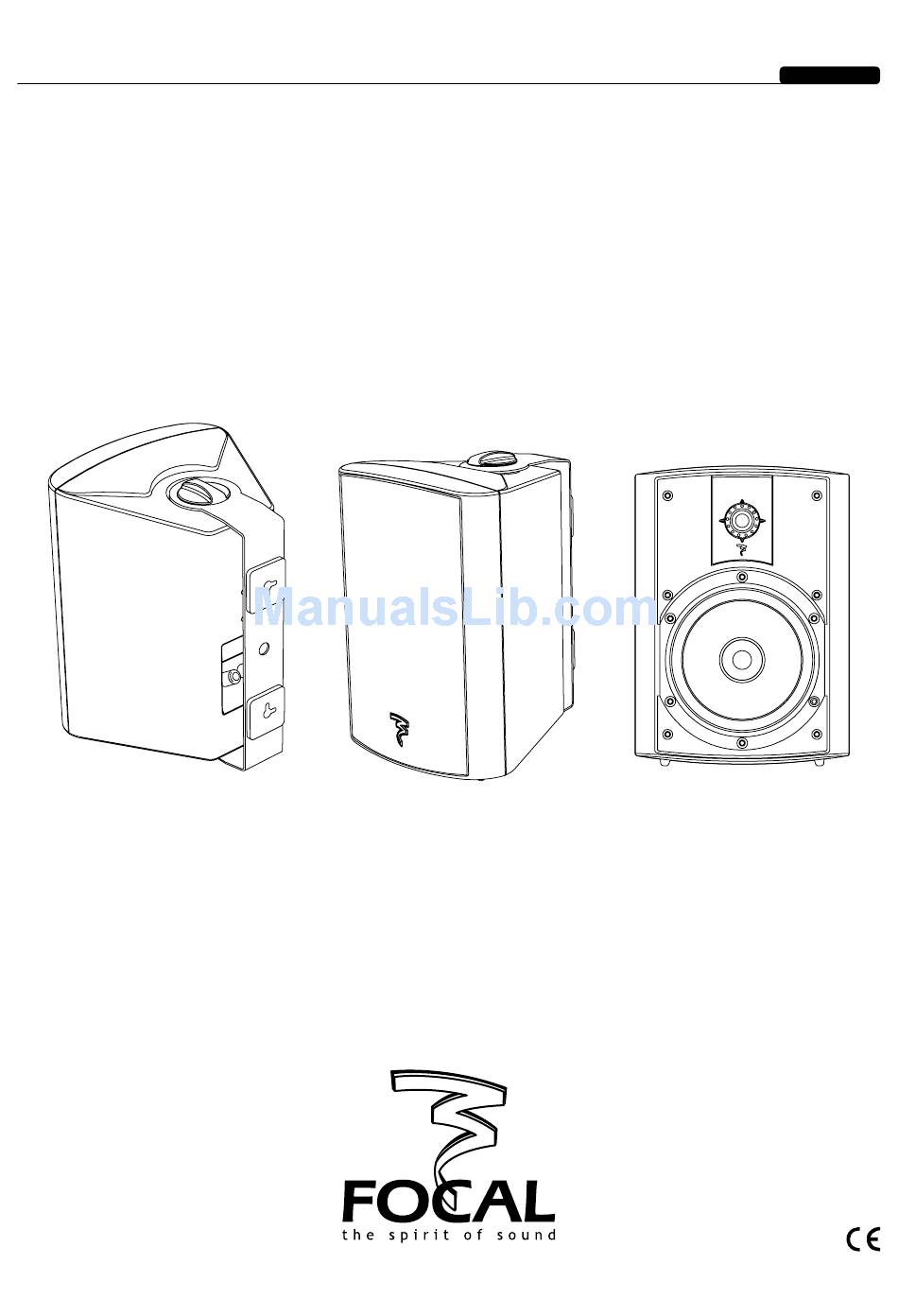

Chorus oD 706 V - T
U s e r m a n u a l
Thank you for choosing the Chorus V outdoor loudspeakers. We are pleased to share with you our philosophy :
"the Spirit of Sound". These high-performance speakers feature the latest technical developments from Focal in
terms of speaker design. In order to enjoy the maximum of their performance, we advise you to read this user's
manual and to keep it carefully so that you can consult it later.
To ensure optimal performance from your outdoor loudspeakers, we highly recommend that installation is
carried out by a professional. They will be able to advise on the best placement within your listening environment
and adjust your system to achieve the highest possible sound quality.
The Focal-JMlab guarantee only applies if the enclosed guarantee card is returned to us within 10
days of purchase.
Included inside:
• 1x loudspeaker
• 4x screws
• 4x plugs
• 1x metallic bar with 2 silent-blocks
• 2x fixing screws for the bar
• 1x grille
• 1x logo
Focal- JMlab
- BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal-fr.com
®
Due to constant technological advances, Focal reserves its right to modify specifications without notice. Images may not conform exactly to specific product.
Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04
Main features:
• All weather Polyglass cone woofer.
• Al/Mg tweeter with anti-drop frame.
• Punched aluminum grille.
• Weather resistant
• Low directivity
• Wall fixing on anti-vibration rubber
foam.
• 70 V/100V high-quality transformer.
Français page 7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Focal Chorus OD 706 V-T
Summary of Contents for Focal Chorus OD 706 V-T
- Page 1 - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal-fr.com ® Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04 Due to constant technological advances, Focal reserves its right to modify specifications without notice. Images may not conform exactly to specific product.
- Page 2 Chorus oD 706 V - T U s e r m a n u a l Installation Loosen the two knobs. Remove the bracket from speaker (pic.A). Run the appropriate gauge wire from your amplifier (pic. B). Mount the C-bracket to the wall surface by running screws through the holes located in the bracket (pic.C). Install the speaker into the C-bracket.
- Page 3 Chorus oD 706 V - T U s e r m a n u a l...
- Page 4 Chorus oD 706 V - T U s e r m a n u a l CAUTION, the loudspeaker is originally set on 100V mode, in 30W position. Input selector 1- 4Ω low-impedance mode 2- not connected (safety position) 3- 100V/10W or 70V/5W mode 4- 100V/15W or 70V/7.5W mode 5- 100V/30W or 70V/15W mode 6- 70V/30W mode...
- Page 5 The electronic connection in 4Ω mode. Conditions of guarantee All Focal-JMlab loudspeakers are covered by guarantee drawn up by the official Focal-JMlab distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that...
- Page 6 Net weight 7lbs (3.2kg) Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime.Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment.
- Page 7 - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal-fr.com ® Tél. (+33) 04 77 43 57 00 - Fax (+33) 04 77 37 65 87 Dans un but d'évolution, Focal- JMlab se réserve le droit de modifier les spécifications techniques de ses produits sans préavis. Images non contractuelles.
- Page 8 Chorus oD 706 V - T M a n u e l d ’ u t i l i s a t i o n Installation Retirer les deux molettes. Enlever l’arceau de montage de l’enceinte (fig.A). Passer le câble haut-parleur à travers la cloison (fig.B).
- Page 9 Chorus oD 706 V - T M a n u e l d ’ u t i l i s a t i o n...
- Page 10 Chorus oD 706 V - T M a n u e l d ’ u t i l i s a t i o n ATTENTION, l’enceinte est réglée en usine en mode 100 V, sur la position 30 W. Sélecteur d’entrée 1- mode basse impédance 4 Ω...
- Page 11 (bobines mobiles brûlées par exemple...). En dehors de la France, le matériel Focal-JMlab est couvert par une garantie dont les conditions sont fixées localement par le distributeur officiel Focal-JMlab de chaque pays, en accord avec les lois.
- Page 12 Poids (unité) 3,2 kg Votre produit Focal-JMlab a été conçu et fabriqué avec des matériaux et composants de haute qualité, susceptibles d’être recyclés et réutilisés. Ce symbole signifie que les appareils électriques et électroniques, lorsqu’ils sont arrivés en fin de vie, doivent être éliminés séparément des ordures ménagères. Veuillez rapporter cet appareil à...
- Page 13 Su producto Focal-JMlab ha sido concebido y fabricado con materiales y componentes de alta calidad, que pueden ser reciclados y reutilizados. Este símbolo signifi ca que los aparatos eléctricos y electrónicos, al final de su vida útil, deberán ser separados de los residuos domésticos y reciclados.
- Page 14 Produkt Focal-JMlab został zaprojektowany i wykonany z materiałów i elementów wysokiej jakoőci, nadajőcych siő do recyklingu i ponownego wykorzystania. Symbol ten oznacza, őe sprzőt elektryczny i elektroniczny naleőy utylizowaő po zakoőczeniu uőytkowania odrőbnie od odpadów domowych. Sprzőt naleőy utylizowaő w komunalnym punkcie zbiórki lub w punkcie recyklingu. Pomóőcie i Wy chroniő...
-
Page 15: International Guarantee
For Focal warranty registration, please return this page within 10 days, to the address below: Focal-JMlab - BP 374 - 108, rue de l’Avenir - 42353 La Talaudière cedex - FRANCE Model: Chorus OD 706 V - T Serial number:... -
Page 16: Garantie France
Pour validation de la garantie Focal, merci de nous retourner cette page dans les 10 jours, à l’adresse suivante : Focal-JMlab - BP 374 - 108, rue de l’Avenir - 42353 La Talaudière cedex - FRANCE Modèle : Chorus OD 706 V - T N°...
