DYMO 1570

Adjusting Space on Label Ends

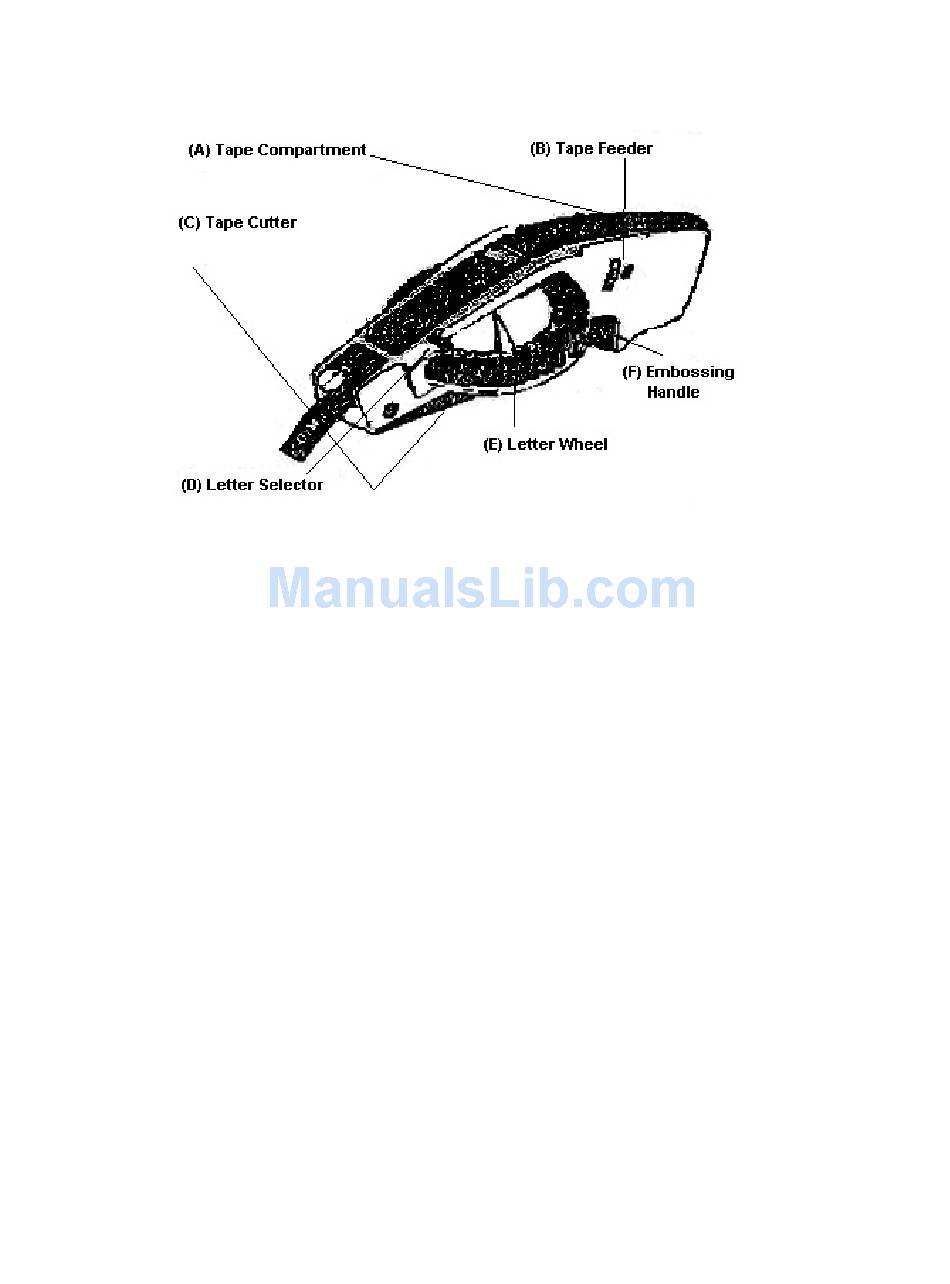

For more blank spaces before and after messages: Turn the tape feeder (B) .

For less blank spaces: Turn the tape feeder (B) in reverse, emboss the message, turn feeder

forward, and cut.

To center a message: Advance completed label 3 spaces (5 space for 1530 Office Mate I)

Squeeze tape cutter.

Label shows letters instead of blank space: Squeeze handle half way until you hear a click,

then release.

Letters too light: Squeeze harder by holding the upper end of the handle.

Tape jam: In the unlikely event the tape does not feed properly, remove the tape wheel, discard

left over tape ends, and replace the wheel.

Use non-residual solvents (i.e., alcohol, acetone) to clean oily or greasy surfaces. If the surface is

rough or porous, coat it with a sealer (i.e. shellac, lacquer). Once stuck, water will not affect the

label. Do not apply labels to surfaces exceeding 140 F.

Table of Contents

Do you have a question about the 1570 and is the answer not in the manual?

Penny

January 22, 2025

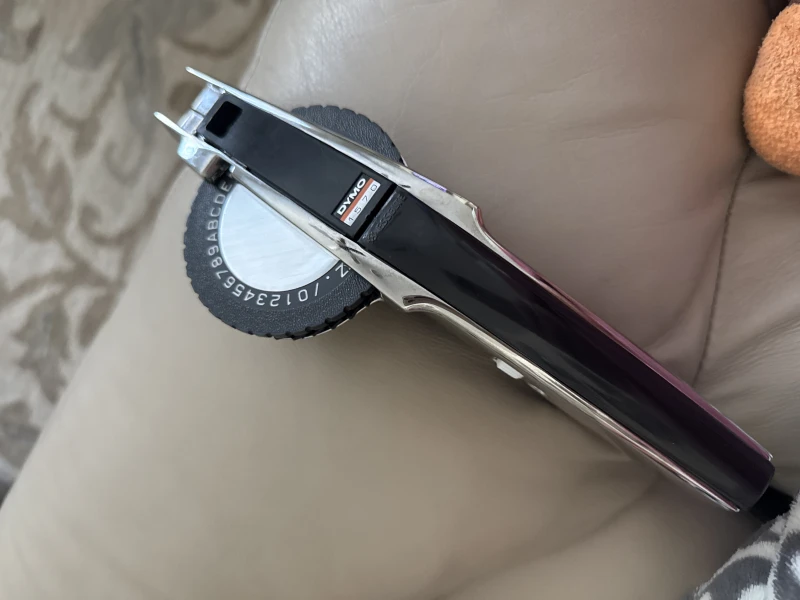

How do you make the letters read left to right instead of up and down?

Page 1: Troubleshooting
DYMO 1570 Adjusting Space on Label Ends For more blank spaces before and after messages: Turn the tape feeder (B) . For less blank spaces: Turn the tape feeder (B) in reverse, emboss the message, turn feeder forward, and cut.
Page 2: Loading Tape
Load Tape Expose 3" of the tape, open the tape compartment (A), and insert so that ‘U’ shape opening in the tape cartridge points down. Insert the tape into the feed slot and thread forward until visible. Close the tape compartment to lock in the tape. Advance Tape By turning the feeder (B) or with several half-squeezes (squeeze until click sound is audible) of the handle (F), advance the tape 1/4"...
