XDMA5280 INSTALLATION
Please read entire manual before installation.
Before You Start
• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from
direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
Getting Started
• Remove trim ring from unit.
• Remove 2 transit screws located on top of the unit.
• Insert the supplied keys into the slots as shown, and slide the unit out of the mounting
sleeve.
• Install mounting sleeve into opening, bending tabs to secure.
• Connect wiring harness and antenna. Consult a qualified technician if you are unsure.
• Certain vehicles may require an installation kit and/or
wiring harness adapter (sold separately).
• Test for correct operation and slide into
mounting sleeve to secure.
• Snap trim ring into place.
Head Unit
2

Preparation

Removal Keys

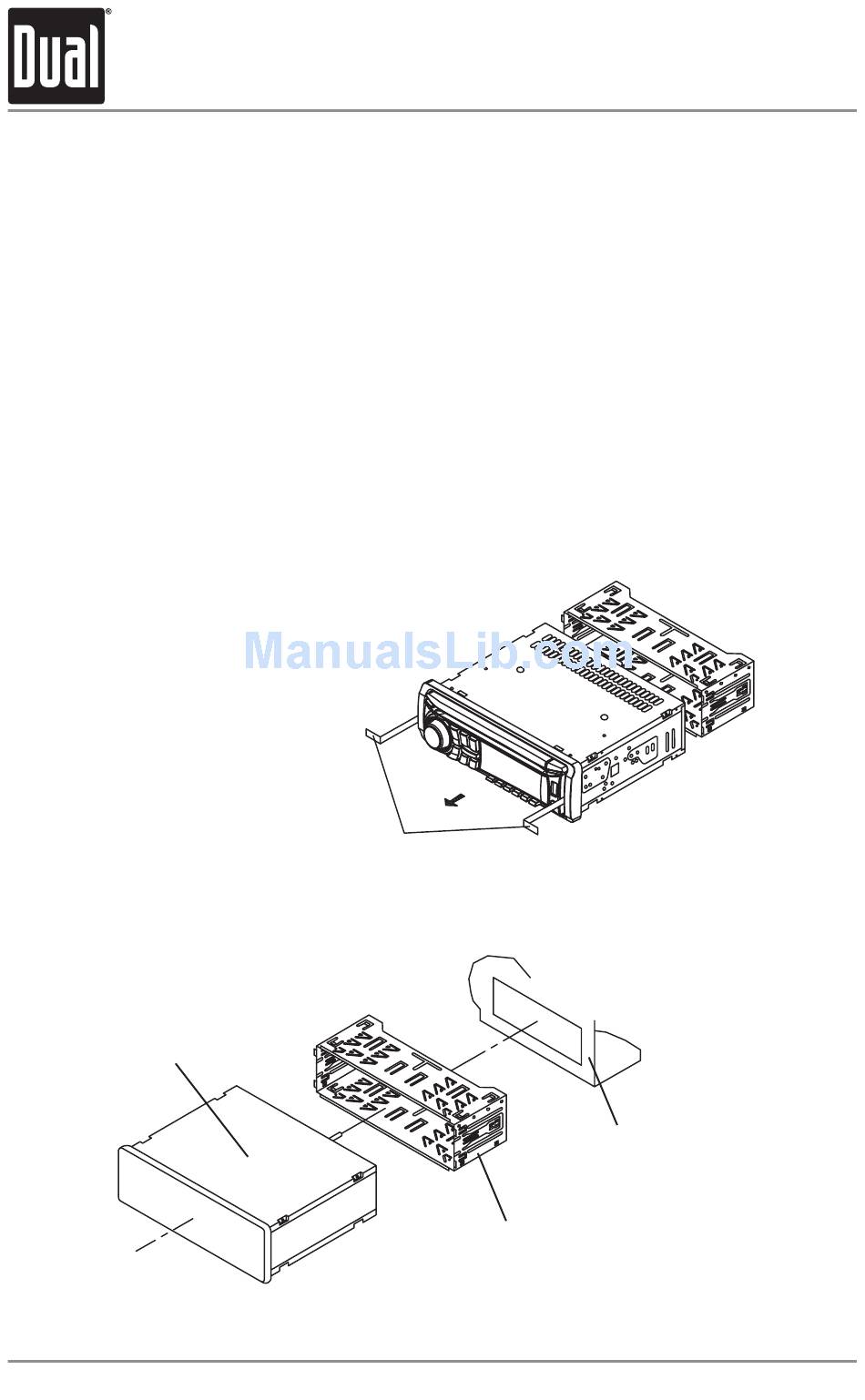

TYPICAL FRONT-LOAD DIN MOUNTING METHOD
Dashboard or
Mounting Kit
Mounting Sleeve
