p a s s i v e
owner's manual

Advertisement

Table of Contents
loading

Related Manuals for Tannoy Ellipse 10 Passive

Summary of Contents for Tannoy Ellipse 10 Passive

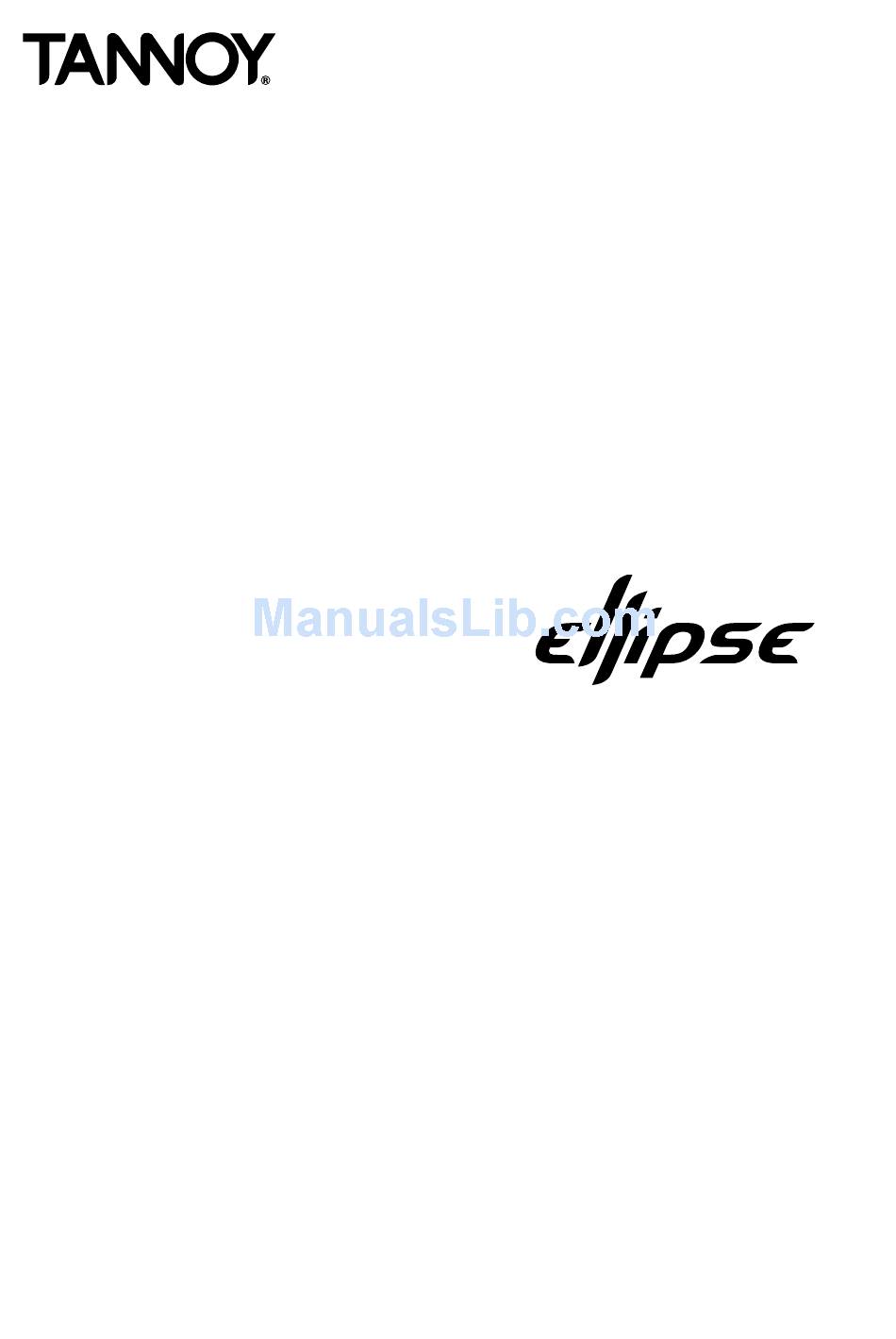

  • Page 1 p a s s i v e owner’s manual...

  • Page 2: Table Of Contents

    ConTenTs INTRODUCTION THE BASICS 2.1 unpacking and visual checks 2.2 preliminary recommendation 2.3 Connecting your speakers 2.4 observing polarity 2.5 Power Amplifiers INSTALLING & POSITIONING 3.1 surround monitoring 3.2 Bass ports 3.3 equalisation EXTERNAL DIMENSIONS PERFORMANCE DATA TECHNICAL SPECIFICATIONS SERVICING 7.1 Cabinet finish 7.2 Driver removal 7.3 Crossover WARRANTY...

  • Page 3: Introduction

    95dB sustained for 8 hours or more per day will eventually cause permanent hearing loss. Because Tannoy monitors have very low levels of time, amplitude and frequency distortion it is not always obvious that the sound level is high while working with them. For continuous exposure we recommend the regular use of a sound level meter capable of integrating the sound level over a period of exposure according to noise control standards.

  • Page 4: Connecting Your Speakers

    This means the speaker cones will move towards you, just like the drum skin. all Tannoy monitors have absolute positive polarity which means that a positive going electrical input pulse to the red terminals will move the cones towards you. However, you can’t trust a conventional recorded source to test this because there is no way to confirm that...

  • Page 5: Installing & Positioning

    front speakers. a subwoofer is recommended, chosen from the Tannoy range to ensure compatibility. The subwoofer/lFe channel produces low frequencies which are non-directional and therefore the subwoofer can theoretically be placed anywhere in the room. However, from experience, optimum performance will be gained by placing the subwoofer in the same plane as the main front speakers. The LFE channel is set at a level 10dB higher than the other channels when mixing therefore it is important to apply the same in any playback situation.
  • Page 6 DIMENSIONS ELLIPSE 8 PASSIVE 372.5 [14.66"] WIDE BAND TECHNOLOGY 210.0 [8.27"] 460.0 320.0 [18.11"] [12.60"] ELLIPSE 8 PASSIVE ELLIPSE 10 PASSIVE 423.0 [16.65"] WIDE BAND TECHNOLOGY 250.0 [9.84"] 540.0 350.0 [21.26"] [13.78"] ELLIPSE 10 PASSIVE...

  • Page 7: Performance Data

    PERFORMANCE DATA ELLIPSE 8 PASSIVE 1m on-axis frequency response 1m on-axis frequency response 1000 10000 100000 Frequency (Hz) Frequency (Hz) impedance vs frequency Impedance vs frequency 1000 10000 100000 Frequency (Hz) Frequency (Hz) ELLIPSE 10 PASSIVE 1m on-axis frequency response 1m on-axis frequency response 1000 10000 100000 Frequency (Hz) Frequency (Hz)

  • Page 8: Technical Specifications

    2. unweighted pink noise input, measured at 1 metre in an anechoic chamber a full range of measurements, performance data, and ease™ Data can be downloaded from www.tannoy.com Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications, which Tannoy reserves the right to alter without prior notification...

  • Page 9: Servicing

    SERVICING 7.1 CABINET FINISH To remove marks and scuffs use a soft brush, avoiding the moving parts of the Dual Concentric™ and superTweeter™ 7.2 DRIVER REMOVAL Lay the cabinet on its back. Remove the front mounted port tubes which are a friction fit in the cabinet. Remove the front trim panel using a suitable plastic tool starting aound the port tube holes. Remove the ten hexagonal screws holding down the Dual Concentric™ driver and set aside. ease the Dual Concentric™ driver from the front of the cabinet taking care not to damage the front surface.

  • Page 10: Warranty

    This warranty in no way affects your statutory rights. DECLARATION OF CONFORMITY The following apparatus is manufactured by Tannoy ltd of rosehall industrial estate, Coatbridge, scotland, ml5 4TF and conforms to the protection requirements of the european electromagnetic Compatibility standards and Directives relevant to Domestic electrical equipment.
  • Page 11 NOTES...
  • Page 12 T: 00 49 (180) 1111 881 E: anfragen@tannoy.com Tannoy France T: 00 33 (0)1 7036 7473 E: ventes@tannoy.com TC|Group Americas T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com Tannoy adopts a policy of continuous improvement and product specification is subject to change.

This manual is also suitable for:

Ellipse 8 passive
