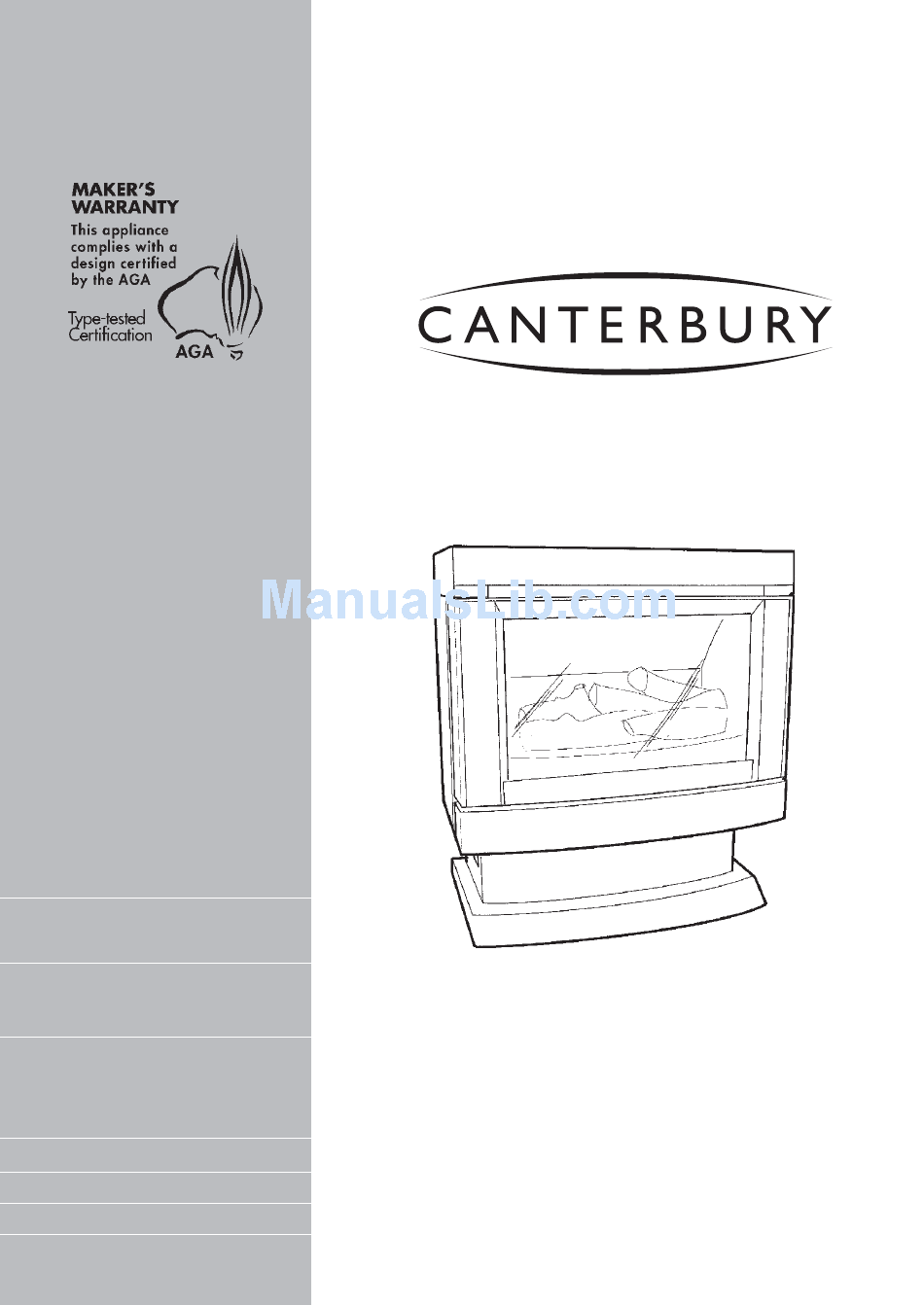

- Page 1 Cannon FREESTANDING MODELS CANTFS-03-NG CANTFS-03-LP USER INSTRUCTIONS INSTALLATION INSTRUCTIONS This heater is approved for use with Natural and Propane gases. SERVICE INSTRUCTIONS Please leave instructions with the owner...
-
Page 2: Table Of Contents
Contents Contents Warranty ❍ Distributor Safety warnings ❍ What to do if you smell gas ❍ Warnings ❍ Standards User instructions ❍ Operating instructions ❍ Flame characteristics ❍ Cleaning Heater specifications Installation instructions 10-15 ❍ Clearances ❍ Installation ❍ Gas connection ❍... -
Page 3: Warranty
Warranty The Cannon appliance is warranted against defects in materials and work- manship for a period of one, (1) year from its date of original purchase, for residential use in Australia. Warranty service, which includes parts and labour for the replacement or repair of defective parts, is available through the CANNON distributor. -
Page 4: Safety Warnings
Refer to other sections of this manual for correct procedures, or consult with place of purchase, a licensed plumber, a gas supplier or the CANNON distributor listed in this manual. 2. Do not build the heater into bookcases or walls. Install only in loca- tions as referred to in these installation instructions. -
Page 5: Standards
Before testing the flue, confirm air vents are unobstructed. If an exhaust fan or other heating appliances are present switch them on. This is to test that there is no interaction between the Cannon heater and other appliances. Refer AS5601. -
Page 6: User Instructions
User instructions Operating instructions 1. Plug the power cord into the wall socket and turn on the power to the heater, see figure 1. Use of an extension cord is not recommended. 2. For control lay-out refer to figure 2 3. - Page 7 5. To increase the fan speed to MED, press switch for MED setting. Refer figure 5. 6. To increase the fan speed to HIGH, press switch for HIGH setting. Refer figure 6. 7. To turn the burner to LOW setting, press switch for LOW setting. Refer figure 7.
-
Page 8: Flame Characteristics
Flame characteristics The heater flame should be stable, no lifting from the burner and the logs should glow after approximately 15 minutes operation on HIGH setting. The heater is a fuel effect unit and is designed to operate with luminous flames and may exhibit slight carbon deposits on the logs. -
Page 9: Heater Specifications
Heater specifications Note: Gas type: Natural or Propane gas, as indicated The data label is on data label. located on the rear Gas consumption: 26 MJ/hr input. of the removable Energy output: 21.45 MJ/hr (5.96 kW). pedestal front. Energy star rating: 4 stars. -
Page 10: Installation Instructions
Installation instructions Overall dimensions: Refer fig. 8. 1. This appliance is to be installed by a licensed service person only. 2. This appliance shall be installed in accordance with the manufacturer’s installation instructions, local gas fitting regulations, municipal building codes, electrical wiring regulations, and AS5601 the Australian Stand- ard for gas installations. -
Page 11: Gas Connection
Gas connection 10. Connect incoming gas supply pipe to ” compression fitting at rear of appliance. For inlet position see figure 13. Log installation 11. The burner is contained within the burner chamber. Refer figure 14. 12. Carefully unpack the log set. Logs are numbered as follows: No 1 - Left front log No 2 - left back log No 3 - Right front log... -
Page 12: Gas Control
Position the four individually numbered logs in the following order on the burner head as shown in figures 15 - 18. The male locating pins in the burner head must engage with corresponding holes in the indi- vidual logs. a) Place log No.1 onto the 2 front left pins on the burner head, ensuring that the charring faces the front. -
Page 13: Gas Pressure Point
If the flame is unstable: ❍ Check that the burner is located correctly. ❍ Check that the glass front is located correctly and is against the sealing rope. ❍ Check that the gas pressure is correctly adjusted. If the heater still does not operate to specification refer to the trouble- shooting chart on pages 22 &... - Page 14 Important: 18. Switch the top two control buttons to “Full On” position as indicated in figure 23(a) and using a ring spanner, as per figure 23(b), adjust the To achieve the correct pressure to 0.75 kPa for Natural gas or 2.65 kPa for LPG. (Turn clock- visual flame effect: wise to increase pressure and anticlockwise to decrease pressure).
-
Page 15: Installation Tips
Installation tips ❍ Make sure that the heater is fully commissioned and be certain to test the integrity of the flue operation, taking into account any influences created by range-hoods, exhaust fans, central heating,etc. ❍ To avoid any unnecessary delays and inconveniences to your cus- tomer, please contact our Technical Services Department on 1300 727 421 if the installation is unusual or you have any concerns with the installation and/or heater operation before the installation... -
Page 16: Flue Installation - Standard Flue Kit
Flue installation - Standard flue kit This heater is a flued appliance. It must be properly connected to a flue system in accordance with the latest edition of the Gas Installation Code, AS 5601/AG 601. If elbows are required, we recommend 45° only and no more than two in the total flue run, there should also be a minimum of 250mm straight flue section in between bends.. -
Page 17: Flue Installation - Standard Flue Kit
Flue installation - Standard flue kit... -
Page 18: Alternative Double Skin Flue Installation
Flue installation - Alternative double skin flue kit Alternative double skin flue installation This heater is a flued appliance. It must be properly connected to a flue system in accordance with the latest edition of the Gas Installation Code, AS 5601. If elbows are required, we recommend 45°... - Page 19 Flue installation - Alternative double skin flue kit...
-
Page 20: Service Instructions
Service instructions General 1. Service work to be carried out by a licensed service person only. 2. Unplug from wall socket. 3. Always shut off the gas supply and ensure that the heater is cool before commencing any service operations. 4. -
Page 21: Wiring Diagram
Wiring diagram Data label For service to this appliance For service to this appliance or spare parts please contact the CANNON distributer: Sampford IXL 52 - 70 Sparks Avenue Fairfield, Vic, 3078 Phone: 1300 727 421 Fax: 1300 727 425... -
Page 22: Trouble Shooting
Trouble-shooting To check the operation of the electronic (module) controller (Type 537 ABC) you will require a digital multimeter with the functions to measure AC/DC voltage, continuity, resistance and micro-amps. It is critical that the appliance is earthed and that the active and neutrals are not reversed. Item No Check Action... - Page 23 No gas to burner. • The gas valve should open at the same time as the igniter sparks. If there is no gas to the burner when this occurs check the solenoid coils for continuity. • Check that the gas pressure is present at the test point when the spark is being generated.
- Page 24 Cannon CANTERBURY Part No: F2902 Revision (C) - 2008...
