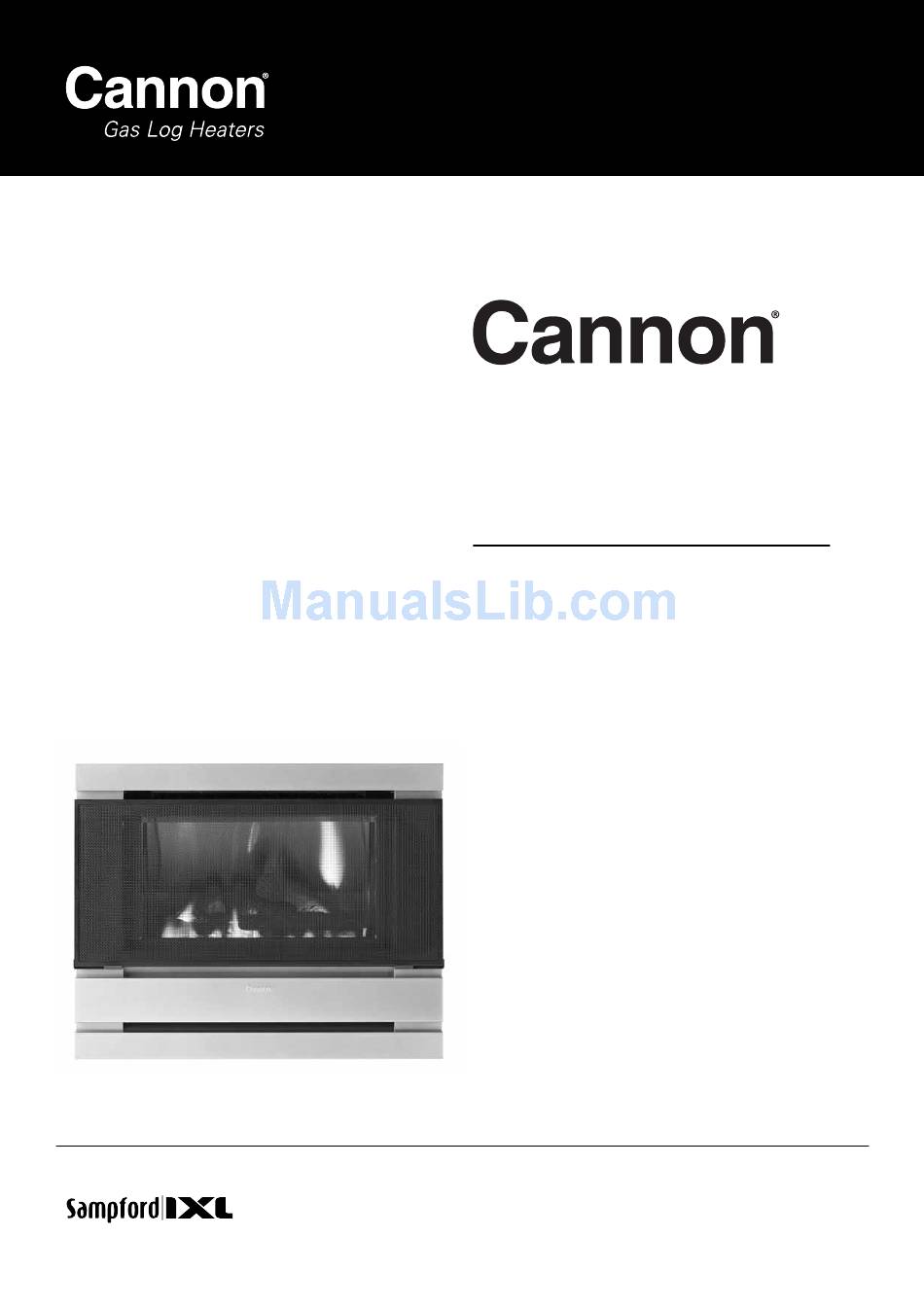

- Page 1 Sharing a lifetime of cosy moments Fitzroy Inbuilt Power Flue Instruction Manual Please read this manual before installing and using this heater. Models: FITZIB-PMEXB FITZIB-PMEXP Please leave instruction manual with the owner Distributor This appliance is designed, manufactured and distributed by: Tel: 1300 727 421...
-
Page 2: Table Of Contents
POWEr FluE InSTallaTIOn InSTruCTIOnS 10 – 12 FaSCIa rEMOval anD ElECTrICal COnnECTIOn lOg InSTallaTIOn & gaS COnnECTIOn SETTIng THE gaS PrESSurE SErvICE InSTruCTIOnS 16 –17 WIrIng DIagraM TrOuBlESHOOTIng 19 – 20 nOTES 2 | Cannon Fitzroy Inbuilt Power Flue... -
Page 3: Warranty
This Warranty against defects for your newly purchased c. will not apply where the defect in or failure of Cannon product is proudly prepared by Sampford IXl Pty the product is attributable to misuse, abuse, ltd of 421 Smith Street, Fitzroy, vIC 3065, accident or non-observation of the manufacturer’s... - Page 4 11. Sampford IXl and its authorised Service Dealers reserve the right to seek reimbursement of any costs incurred by them should your Cannon product be found to be in good working order. Privacy The privacy of your personal information has always been important to us.
-
Page 5: Safety Warnings
CannOn distributor listed in this manual. 12. On first lighting your heater an odour and possibly some harmless smoke may be emitted due to its new 3. -
Page 6: Operation
High wind gusts can affect the heaters flueing and switch the heater off. If this happens, restart the heater as normal. If the problem persists contact NORMAL Sampford IXL. BOOST fig 1 fig 2 6 | Cannon Fitzroy Inbuilt Power Flue... -
Page 7: Optional Accessories
Install in a shallow recess or an existing fireplace, elegant spacers will eliminate any size discrep- ancies. To enhance your Cannon’s appearance add a decorative 3 or 4 sided surround. Every Cannon heater brings you the optional convenience of controlling your heater through a remote thermostat. -
Page 8: Fitzroy Inbuilt Power Flue Specifications
FIG 3 Overall dimensions of replace * For installation into a masonry/brick fireplace 700 – 800 mm 690 mm 808 mm 50 mm 386 mm 50 mm fig 3 front View and side View 8 | Cannon Fitzroy Inbuilt Power Flue... -
Page 9: Regulatory Locator
5 For appliances not addressed above acceptance should be obtained from the technical regulator. THE POWER FLUE HEATER IS FAN ASSISTED. SEE COLUMN HIGHLIGHTED Special Note: This chart MUST be read in-conjunction with the full Australian Standard Gas Installations AS 5601. fig 4 Cannon Fitzroy Inbuilt Power Flue | 9... -
Page 10: Power Flue Installation Instructions
This will adversely affect the performance Height 650 mm 630 mm of the heater. Width 780 mm 731 mm Depth 486mm or 586mm* *486mm min clearance for straight through flue. 586mm min clearance for flex flue pipe 10 | Cannon Fitzroy Inbuilt Power Flue... - Page 11 695 mm 160 DIA FLUE OPENING 25min flue outlet 20 DIA CONDENSE DRAIN HOLE SUPPLY FINISHED FLOOR 50 mm LEVEL Condensate 100 mm fig 14. fig 13 fig 12 Corner Wall application Cannon Fitzroy Inbuilt Power Flue | 11...
- Page 12 Standard gas Installations aS 5601: EXTERNAL WALL for ‘location of powerflue terminal’. TERMINAL COVER PLATE TERMINAL COVER PLATE PLACED TO HAVE TERMINAL ON AN INCLINE. FLUE TERMINAL WALL FIXING: USE SUITABLE FASTENERS FOR WALL CONSTRUCTION fig 19 12 | Cannon Fitzroy Inbuilt Power Flue...
-
Page 13: Fascia Removal And Electrical Connection
Cannon Fitzroy Inbuilt Power Flue | 13... -
Page 14: Log Installation & Gas Connection
Sealing is important as it prevents any leakage of flue products into the room. Test all connections for gas leaks. 4. Heater MuST nOT be connected using a flexible hose. 69 mm fig 29 14 | Cannon Fitzroy Inbuilt Power Flue... -
Page 15: Setting The Gas Pressure
• Check that flue is operating correctly Hold If the heater still does not operate to specification refer to the troubleshooting chart on page 19, or contact Sampford IXl in your state. adjust fig 34 Cannon Fitzroy Inbuilt Power Flue | 15... -
Page 16: Service Instructions
3. Disconnect the fan plug from the plug carrier. remove the two M5 wing nuts which locate the fan to the fan chamber underside. lower fan from male thread. Electronic controller Ignition Module gas valve fig 35 16 | Cannon Fitzroy Inbuilt Power Flue... -
Page 17: Service Instructions
4. replace the control box fig 37 5. Check and re-set gas pressures. To Replace Power Cord Contact Sampford IXl service department. fig 39 fig 38 Securing the burner bed removing Combustion Fan Cannon Fitzroy Inbuilt Power Flue | 17... -
Page 18: Wiring Diagram
IGNITION MODULE PRESSURE F3833 SWITCH F3327 240 V MAINS PLUG ROOM AIR FAN NATURALLY ASPIRATED WIRING DIAGRAM F3835 B fig 40 BEEP fig 41 Switch Control Diagram highlighting ng/lP settings & audible beep. 18 | Cannon Fitzroy Inbuilt Power Flue... -
Page 19: Troubleshooting
Make sure that the pressure switch wires are connected correctly. One wire should be to C (Common) and the other should be to nO (normally Open). If it still doesn’t work after checking the above, change the pressure switch. Cannon Fitzroy Inbuilt Power Flue | 19... - Page 20 • Check that there is gas to the inlet of the gas control. Fuse blowing. • If the fuse continues to blow check the solenoid coils for a signs of them being shorted. • Check the fan and wiring for short circuit. 20 | Cannon Fitzroy Inbuilt Power Flue...
-
Page 21: Notes
Cannon Fitzroy Inbuilt Power Flue | 21... - Page 22 22 | Cannon Canterbury Freestanding...
- Page 23 Cannon Canterbury Freestanding | 23...
- Page 24 For service to this appliance or spare parts Gmk 10025 contact the CANNON distributor: Gmk 10030 AS4553:2008 Sampford IXL – Spare Parts Phone: 1300 727 421 Part number: Fax: 1300 727 425 Email: aftersalesservice@sampfordixl.com.au F3840_B 24 | Cannon Fitzroy Inbuilt Power Flue...
