Campbell Hausfeld WF2034 Operating Instructions & Parts Manual

Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
BUILT TO LAST
Description
The Campbell Hausfeld WF2034 is a 70
amp, single phase 115 volt input, wire
feed arc welding machine equipped with
infinite wire speed control to accurately
select the proper wire feed rate needed
for various welding conditions. Internal
components are thermostatically
protected.
This welding system is designed for use
with Flux Core Arc Welding (Gasless)
only. As delivered from the factory, this
welder can weld with .030" (.8mm) to
.035" (.9mm) diameter flux-cored wire.
A starter spool of .035" flux-cored wire
is included.
Unpacking
Some welder components may be
found in the wire feed compartment.
When unpacking, inspect carefully for
any damage that may have occurred
during transit. Report any damaged or
missing items by calling (800) 746-5641.

Circuit Requirements

This equipment
CAUTION
!
requires a
dedicated 115 volt circuit. Refer to the
following chart for the correct circuit
breaker or fuse rating. Do not run
other appliances, lights, or tools on
this circuit while operating this
equipment. Extension cords are not
recommended. Blown fuses and tripped
circuit breakers can result from failure
to comply with this recommendation.
Heat Circuit Breaker or
Selector Slow Blow Fuse
Low 15 amp
High 20 amp
© 2000 Campbell Hausfeld / Scott Fetzer
Wire Feed
Arc Welder
TM
6
2

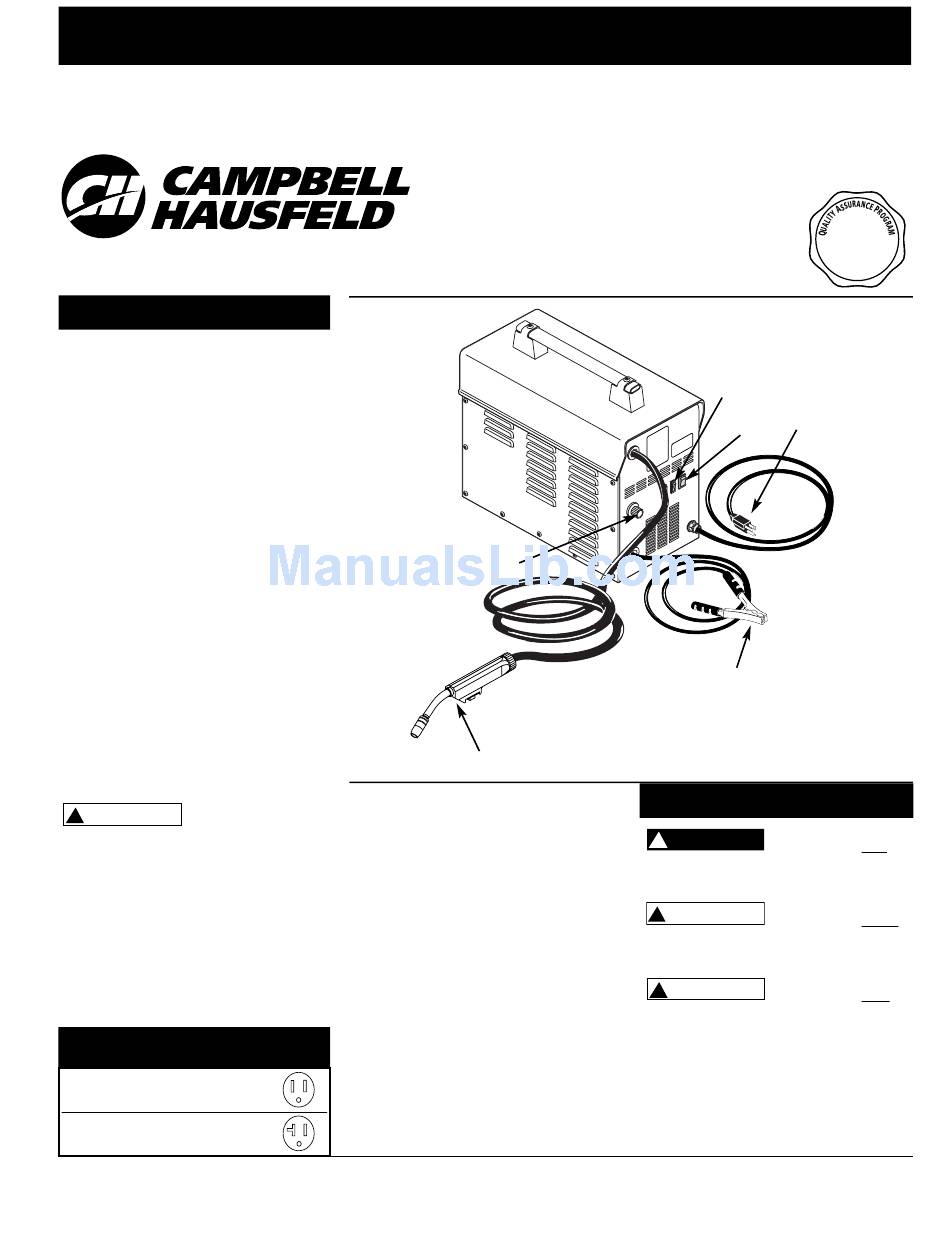

Figure 1

Components and Controls

1. Ground Clamp - connect to work
piece.
2. Wire Feed Gun
3. Power Cord - plug into 115 volt
outlet.
4. On/Off Switch
5. Heat Selector - Selects welding
power (high/low).
6. Infinite Wire Speed Control -
turn clockwise to increase wire
speed and counterclockwise to
decrease wire speed.
For parts, product & service information
visit www.chpower.com
Model WF2034
Call Us First!
5
3
4
1
Farmhand 85

General Safety

Danger means a
DANGER
!
hazard that will
cause death or serious injury if the
warning is ignored.
Warning means a
WARNING
!
hazard that could
cause death or serious injury if the
warning is ignored.
Caution means a
CAUTION
!
hazard that may
cause minor or moderate injury if the
warning is ignored. It also may mean a
hazard that will only cause damage to
property.
NOTE: Note means any additional
information pertaining to the product
or its proper usage.
IN970300AV 11/00
Need
Assistance?
1-800-746-5641
