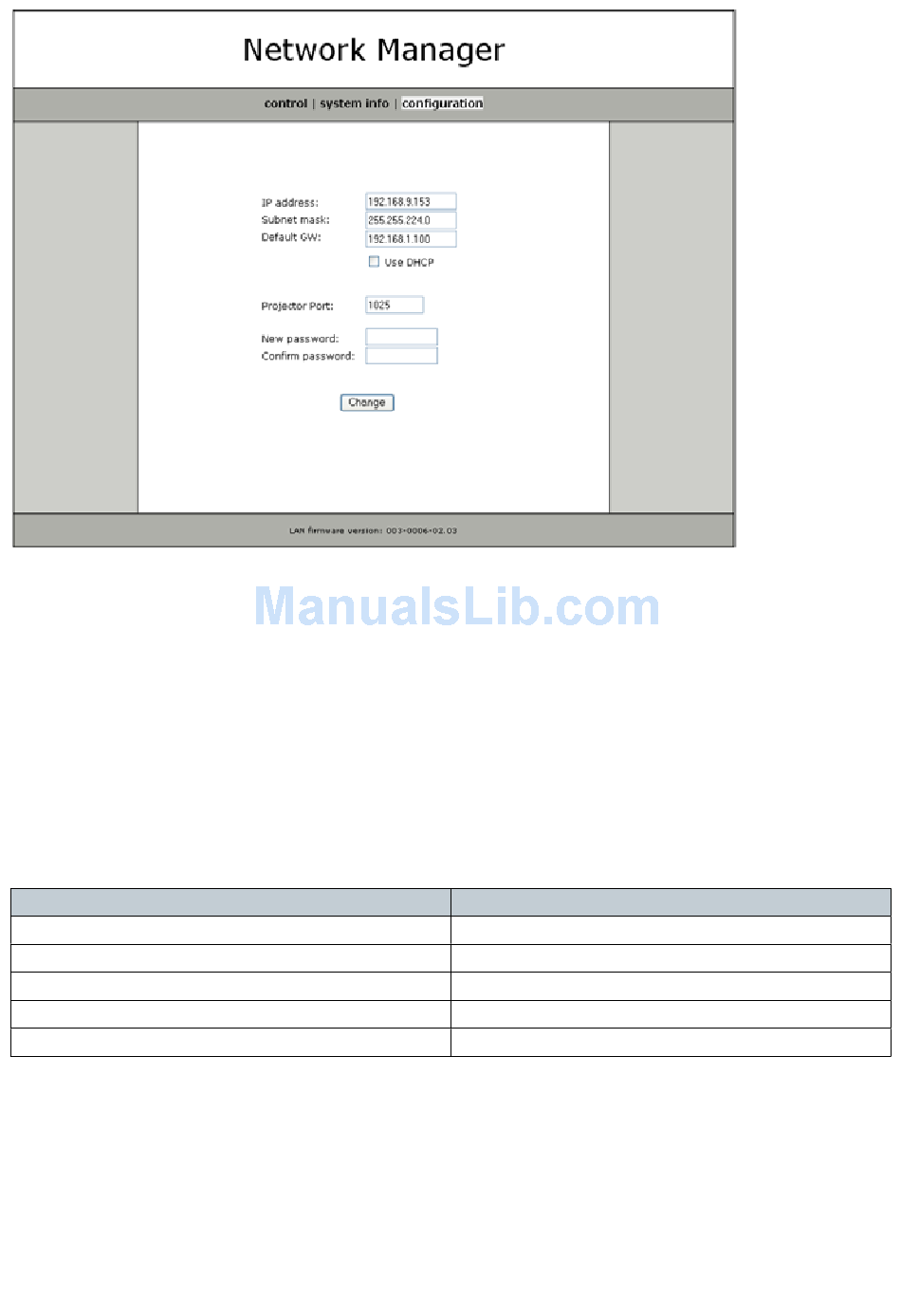

Figure 2 : Web page
On this page you can setup the projectors IP address, subnet mask, default gateway, projector port (TCP/UDP) and password. This
page also displays the current version of network firmware the projector is running.

Setting up RS232 communication

Connect to the projector

Connect the projector and host using a standard serial cable with 9-pin female to the host, and 9-pin male to the projector. Pin 2
connects to pin 2, pin 3 connects to pin 3 and pin 5 connects to pin 5.

RS232 Communication parameters

Table 1 shows supported rs232 settings:
Parameter
Baud rate
Parity
Databits
Stopbits
Flowcontrol
Table 1: RS232 parameters
Baud rate is configurable from the projector's menu system. Default baud rate is 19200.
Data
4800, 9600, 19200
N
8
1
None
