Summary of Contents for Bushnell Image View 111026

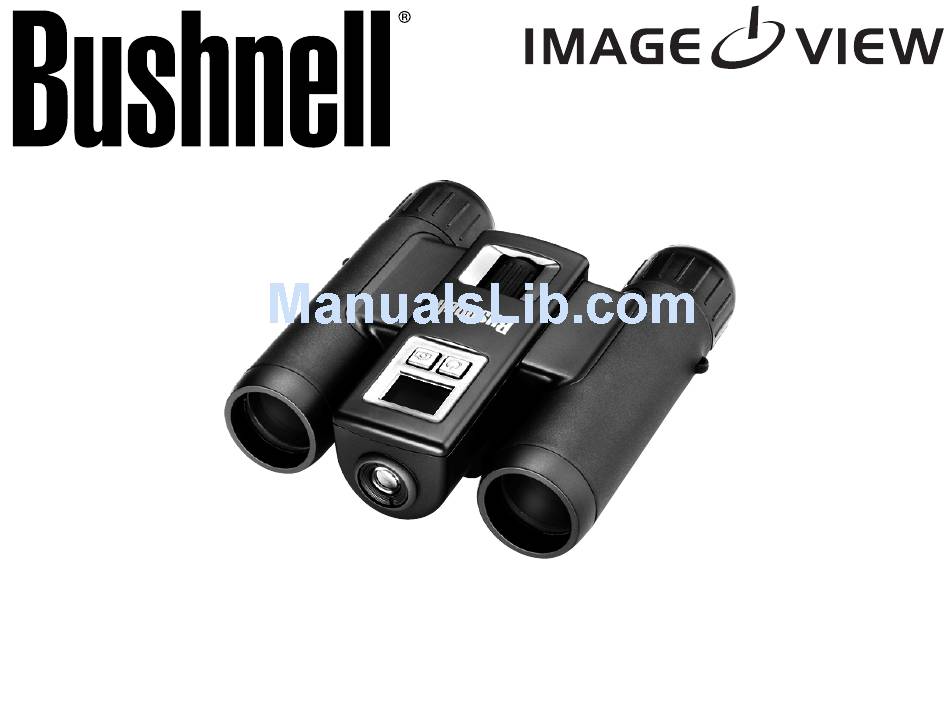

- Page 1 Instruction Manual Model #: 111026 Version 2.0 Lit. #: 98-0828/07-10...
- Page 3 WARNING Do NOT look directly at the sun through your binoculars. Doing so may cause permanent eye damage. NOTE: To reset the camera if you experience problems or if the display becomes unresponsive, remove the batteries for at least one minute, then re-install them.
- Page 4 Congratulations on your purchase of the Bushnell ImageView ® binocular! The Bushnell ImageView binocular takes the technology of digital photography and combines it with a high-quality compact binocular. This allows you to observe sporting events, wildlife, scenic vistas or anything you would normally use a binocular for, and then save the image in a built-in attached digital camera.
-
Page 5: Camera And Binocular Parts Guide
Camera and Binocular Parts Guide Binocular Focus Power/ Port MODE Button Remote SD Card Slot Jack SNAP Button Tripod Camera Socket Lens Battery Compartment... -
Page 6: Setup And Basic Operation
Setup and Basic Operation CAMERA PARTS the camera is powered by two AAA alkaline, lithium, or NiMh batteries (not included). insert batteries into the compartment, with the springs in contact with the negative (flat) end of each battery. A power meter on the left center of the display indicates battery condition. - Page 7 Setting Date & Time/ Using the Operational Modes the imageView will imprint the date and time in the bottom right corner of your photos. to set the current date and time, after turning on the camera, press and hold both the MODE and SNAP buttons at the same time, until the display begins to flash.
-
Page 8: Settings Description
Using the Operational Modes (Bold indicates default settings) Mode Icon Settings Description Video Video OFF, High Select "Hi" (recommended) or "Lo" video Camera (640x480 resolution instead of "OFF" to put the camera in pixels per video mode. Wait a few seconds for the camera to frame, 29 fps), automatically return to the normal display, then Low (320x240... - Page 9 Using the Operational Modes Mode Icon Settings Description 60 Hz, 50 Hz Line 60 or 50 Set to match the AC power frequency (cycles) of Frequency your country. this ensures that stills and videos shot under fluorescent lighting appear normal. Continuous OFF, 3, 5 Select 3 or 5 frames to shoot a rapid series of...
- Page 10 Using the Operational Modes Mode Icon Settings Description Delete All ALL+trash None-press Select this mode and press SNAP to erase the SNAP to delete entire memory contents (the counter resets to all photo and zero). Use this after downloading your files, to video files clear the memory so you can take new photos.
-
Page 11: System Requirements
Using the ImageView with Your Computer the camera will be recognized as a USB mass storage device, which means no special drivers are required for all operating systems later than Windows 98 (Me, 2000, XP, Vista.) Mac OS 9 and OSX are also compatible. if you have a computer OS as listed above that is USB mass storage compliant, a new disc icon will appear in Windows Explorer (under “My Computer”) as a new “Removable Disc”... - Page 12 Downloading the Photo/Video Files Connect the supplied cable to the imageView’s USB port, then directly to a main USB port on your computer-do not use front panel/keyboard USB ports or unpow- ered “hubs”. , and the imageView will be recognized as a the LCD display will indicate “StO”...
- Page 13 Downloading the Photo/Video Files Click “Edit>Select All” (or click on one photo, contol+click to select multiple photos), then “Edit>Copy to Folder” (in Windows menus). Select an existing folder on your hard drive, such as “My Pictures”, or create a new folder (“Hawaii Vacation”, etc), then click “OK”...
- Page 14 “Delete All” on your camera to make room for new images. Binocular Instructions Your Bushnell binocular is a precision instrument designed to provide many years of pleasurable viewing. this portion of the booklet will help you achieve optimum performance by explaining how you can adjust the binocular to your eyes, and how to care for this instrument.
- Page 15 How to Adjust For Individual Eye Strength Binocular instructions As individual eyesight varies from one person to another, most Bushnell binoculars have a diopter setting feature which allows you to fine-tune the binocular to your vision. Follow the focusing instructions below for your type of binocular.
- Page 16 EYECUPS (Figure 3) Your Bushnell binocular is fitted with rubber roll-down eyecups designed for your comfort and to exclude extraneous light. if you wear sun/eyeglasses, roll down the eyecups. this will bring your eyes closer to the binocular lens thus providing improved field of view.
- Page 17 take the batteries out of your imageView if you are not going to use it for a long period of time. CLEANING Blow away any dust or debris on the lens (or use a soft lens brush.) to remove dirt or finger prints, clean with a soft cotton cloth rubbing in a circular motion.
- Page 18 TWO-YEAR LIMITED WARRANTY Your Bushnell ® product is warranted to be free of defects in materials and workmanship for two years after the date of purchase. in the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid.
- Page 19 FCC Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. these limits are designed to provide reasonable protection against harmful interference in a residential installation. this equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 20 For further questions or additional information please contact: Bushnell Outdoor Products 9200 Cody, Overland Park, Kansas 66214 (800) 423-3537 • www.bushnell.com ©2010 Bushnell Outdoor Products...
