Frigidaire FRS6L9EFS Parts Catalog

134a series
Hide thumbs

Advertisement

Table of Contents

u
x Major Appliances
N58L00001.eps N58FFDEEA2.eps N58RFCBBC7.eps N58BAAAAB2.eps
North & Latin America
N58SLDJBE11.eps N58TCAAAB4.eps N58CAAAAC9.eps N58XEAAAA1.eps
P.O. BOX 212378
N58YDAAAC1.eps n58I115T1.eps W241689701.eps S241689701.eps
AUGUSTA, GA 30917
Product No.
FRS6L9EFSS4
Series
134A
Color
stain/gray
Volts
115
Wiring Diagram
241689701
Owner's Guide
241695101
Market
North America
Energy Guide
241649229
Service Data Sheet 241636603
Publication No.
5995477295
06/10/23
(EN/SERVICE/RLF)
137
Copyright

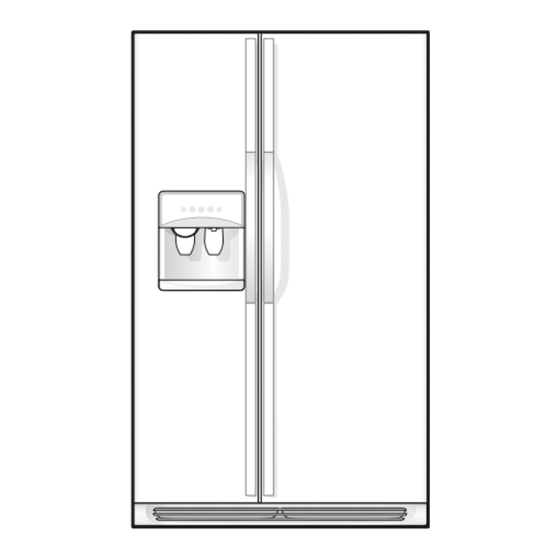

SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6L9EFS
©
2006 Home Pr
oducts, Inc.
All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS6L9EFS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigidaire FRS6L9EFS

Summary of Contents for Frigidaire FRS6L9EFS

  • Page 1 Product No. FRS6L9EFSS4 Series 134A Color stain/gray Volts Wiring Diagram 241689701 Owner's Guide 241695101 Market North America Energy Guide 241649229 Service Data Sheet 241636603 SIDE-BY-SIDE REFRIGERATOR x Major Appliances Model No. N58L00001.eps N58FFDEEA2.eps N58RFCBBC7.eps N58BAAAAB2.eps North & Latin America N58SLDJBE11.eps N58TCAAAB4.eps N58CAAAAC9.eps N58XEAAAA1.eps FRS6L9EFS P.O.

  • Page 2: Freezer Door

    Publication No: 5995477295 FRS6L9EFSS4 FREEZER DOOR N58FFDEEA2 10/06...
  • Page 3 FRS6L9EFSS4 Publication No: 5995477295 FREEZER DOOR POS. NO PART NO. DESCRIPTION 241674806 Gasket-frzr door, black, magnetic 240334202 Bin-door, frzr-upper 240351702 Bin-door, frzr-dispenser 241545005 Bin-tilt out, tilt-out 241668500 Door-frzr, stainless, complete assy 240581906 Door Stop, black, frzr 240536818 Handle-door, stainless steel, with insert, & set screw 240598402 Screw, 10-32 x 1/2 240328204...

  • Page 4: Refrigerator Door

    Publication No: 5995477295 FRS6L9EFSS4 REFRIGERATOR DOOR 10/06...
  • Page 5 FRS6L9EFSS4 Publication No: 5995477295 REFRIGERATOR DOOR POS. NO PART NO. DESCRIPTION 241674805 Gasket-refr door, black, magnetic 240323002 Bin-door, pseudo, bottom 240326203 Door-dairy 240572601 Label-nameplate 240581905 Door Stop, black, ref 241534541 Door-refr, stainless steel, complete assy 240536818 Handle-door, stainless steel, with insert, & set screw 240598402 Screw, 10-32 x 1/2 240328203...
  • Page 6 Publication No: 5995477295 FRS6L9EFSS4 CABINET N58BAAAAB2 10/06...
  • Page 7 FRS6L9EFSS4 Publication No: 5995477295 CABINET POS. NO PART NO. DESCRIPTION 240435908 Cover-air duct 240475911 Cover-evap coil, lower 5303208309 Plug-hole, factory test 240505801 Switch, light/lamp 241547901 Switch-light/lamp, frzr door 218252201 Screw, #8 truss hd, 10-32CA x 0.500 240457702 Plate-door closer 240402702 Screw-#10-32 x 1/4 flat hd 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special...
  • Page 8 Publication No: 5995477295 FRS6L9EFSS4 SHELVES 140A N58SLDJBE11 10/06...
  • Page 9 FRS6L9EFSS4 Publication No: 5995477295 SHELVES POS. NO PART NO. DESCRIPTION 241510604 Trim-basket 240350668 Shelf-freezer, glass, lower 240350667 Shelf-freezer, glass, upper 240324101 Shelf-pizza 241552801 Light Bulb 241555401 Light Bulb 240590401 Socket-light 241537504 Harness-wiring 241513901 Socket-light 240355203 Shelf-"Spill-Safe", fixed 240350106 Shelf-"Spill-Safe", cantilever, sliding 240424609 Shelf-"Spill-Safe", sliding, "Aspect", complete 240350703...
  • Page 10 Publication No: 5995477295 FRS6L9EFSS4 SHELVES 140A N58SLDJBE11 10/06...
  • Page 11 FRS6L9EFSS4 Publication No: 5995477295 SHELVES POS. NO PART NO. DESCRIPTION 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16 241674401 Channel, auger mtg, LH 241674402 Channel, auger mtg, RH 241657701 Dispenser-can, white 240430501 Channel, wtr tube cover 140A 240430503 Channel, wtr tube cover 240585404 Bracket-light socket 240582701...
  • Page 12 Publication No: 5995477295 FRS6L9EFSS4 CONTROLS N58TCAAAB4 10/06...
  • Page 13 FRS6L9EFSS4 Publication No: 5995477295 CONTROLS POS. NO PART NO. DESCRIPTION 5308000010 Fan Blade, red, evaporator fan 215474201 Washer, "slinger", nylon, evap fan shaft 241563601 Bushing-motor mtg, (2) 240369702 Motor-evap fan 241517701 Clip, evap fan motor 241555401 Light Bulb 16 # 241513901 Socket-light 241608801...
  • Page 14 Publication No: 5995477295 FRS6L9EFSS4 SYSTEM N58CAAAAC9 10/06...
  • Page 15 FRS6L9EFSS4 Publication No: 5995477295 SYSTEM POS. NO PART NO. DESCRIPTION 240333603 Condenser 218679607 Block-evap coil, styrofoam, (2) 5303305677 Drier-filter, R12 & R134a 241641401 Harness-wiring, machine compt 241651601 Harness-wiring 6* # 241737801 Harness-wiring, control box 14 # 240316107 Heater-defrost 15 # 5303918284 Evaporator Kit 5308000110...

  • Page 16: Ice And Water Dispenser

    Publication No: 5995477295 FRS6L9EFSS4 ICE & WATER DISPENSER N58XEAAAA1 10/06...
  • Page 17 FRS6L9EFSS4 Publication No: 5995477295 ICE & WATER DISPENSER POS. NO PART NO. DESCRIPTION 218976409 Tube-water-DOOR 218976901 Tube, water inlet, valve to IM 218976903 Tube-water inlet, inlet valve, to filter 218976907 Tube-water inlet, valve to door 240561701 Seal-water inlet, inlet valve, to ice maker 241678703 Cover-module, black 241680503...

  • Page 18: Ice Container

    Publication No: 5995477295 FRS6L9EFSS4 ICE CONTAINER 37A 34 34 33 N58YDAAAC1 10/06...
  • Page 19 FRS6L9EFSS4 Publication No: 5995477295 ICE CONTAINER POS. NO PART NO. DESCRIPTION 241716101 Auger-ice 241685201 Cam-drive 241561302 Container-ice, bucket only 241685101 Drum-ice disp 241561401 Front-ice container 241624801 Bar-drive 241685301 Gate 241555401 Light Bulb 241559801 Socket-light 241684501 Drive Blade 18 # 241676202 Motor-auger, 115V 241522901 Harness-wiring, icmkr/container...

  • Page 20: Ice Maker

    Publication No: 5995477295 FRS6L9EFSS4 ICE MAKER INSTALLATION PARTS N58I115T1 10/06...
  • Page 21 FRS6L9EFSS4 Publication No: 5995477295 ICE MAKER POS. NO PART NO. DESCRIPTION 218976409 Tube-water-DOOR 218976901 Tube, water inlet, valve to IM 218976903 Tube-water inlet, inlet valve, to filter 218976907 Tube-water inlet, valve to door 240561701 Seal-water inlet, inlet valve, to ice maker 5304436616 Spring, torsion 5304436610...

  • Page 22: Wiring Schematic

    Publication No: 5995477295 FRS6L9EFSS4 WIRING SCHEMATIC FF THERMISTOR G E N E S I S C O N T R O L FRZ THERMISTOR 10/06...

  • Page 23: Wiring Diagram

    FRS6L9EFSS4 Publication No: 5995477295 WIRING DIAGRAM White White Gray Gray WHITE WHITE 10/06 # Functional Parts * Non-Illustrated Parts...
