Frigidaire FRS6LF7G Parts Catalog

134a series
Hide thumbs
Table of Contents

Advertisement

Quick Links

N58L00002.eps N58FFDBBB1.eps N58RFDAAB2.eps N58BAAAAB3.eps
N58SKBCBD12.eps N58TCAAAB4.eps N58CAAAAA10.eps N58XBAAAB1.eps
N58YAAAAA4.eps N58I1151.eps W241725001.eps S241725001.eps
u
x Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FRS6LF7GS2
Series
134A
Color
stain/blk
Volts
115
Wiring Diagram
241725001
Owner's Guide
241856000
Market
North America
Energy Guide
241768172
Service Data Sheet 240389633
Publication No.
5995495719
07/07/24
(EN/SERVICE/KHB)
137
Copyright

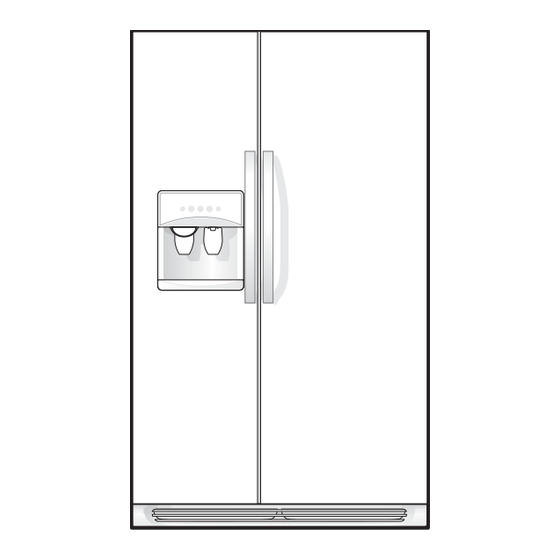

SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6LF7G
©
2007 Home Pr
oducts, Inc.
All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS6LF7G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigidaire FRS6LF7G

Summary of Contents for Frigidaire FRS6LF7G

  • Page 1 Product No. FRS6LF7GS2 Series 134A Color stain/blk Volts Wiring Diagram 241725001 Owner's Guide 241856000 Market North America Energy Guide 241768172 Service Data Sheet 240389633 SIDE-BY-SIDE N58L00002.eps N58FFDBBB1.eps N58RFDAAB2.eps N58BAAAAB3.eps REFRIGERATOR N58SKBCBD12.eps N58TCAAAB4.eps N58CAAAAA10.eps N58XBAAAB1.eps N58YAAAAA4.eps N58I1151.eps W241725001.eps S241725001.eps x Major Appliances Model No.

  • Page 2: Freezer Door

    Publication No: 5995495719 FRS6LF7GS2 FREEZER DOOR N58FFDBBB1 07/07...
  • Page 3 FRS6LF7GS2 Publication No: 5995495719 FREEZER DOOR POS. NO PART NO. DESCRIPTION 241786006 Gasket-frzr door, black, magnetic 240334201 Bin-door, frzr-upper 240351601 Bin-door 241615160 Door, frzr, stainless steel, RH 240581906 Door Stop, black, frzr 240536818 Handle-door, stainless steel, with insert, & set screw 241601001 Wrench, allen 240598402...

  • Page 4: Refrigerator Door

    Publication No: 5995495719 FRS6LF7GS2 REFRIGERATOR DOOR N58RFDAAB2 07/07...
  • Page 5 FRS6LF7GS2 Publication No: 5995495719 REFRIGERATOR DOOR POS. NO PART NO. DESCRIPTION 241786005 Gasket-refr door, black, magnetic 240323002 Bin-door, pseudo, bottom 240326203 Door-dairy 240581905 Door Stop, black, ref 241629333 Door-refr, stainless, complete assy 240536818 Handle-door, stainless steel, with insert, & set screw 241601001 Wrench, allen 240598402...
  • Page 6 Publication No: 5995495719 FRS6LF7GS2 CABINET N58BAAAAB3 07/07...
  • Page 7 FRS6LF7GS2 Publication No: 5995495719 CABINET POS. NO PART NO. DESCRIPTION 240435912 Cover-air duct 240475911 Cover-evap coil, lower 5303208309 Plug-hole, factory test 240505801 Switch, light/lamp 241547901 Switch-light/lamp, frzr door 218252201 Screw, #8 truss hd, 10-32CA x 0.500 240457702 Plate-door closer 240402702 Screw-#10-32 x 1/4 flat hd 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special...
  • Page 8 Publication No: 5995495719 FRS6LF7GS2 SHELVES N58SKBCBD12 07/07...
  • Page 9 FRS6LF7GS2 Publication No: 5995495719 SHELVES POS. NO PART NO. DESCRIPTION 241510604 Trim-basket 241657602 Shelf, flip up, wire 241657504 Shelf, fixed, upper, freezer 240324101 Shelf-pizza 241555401 Light Bulb 241513901 Socket-light 16A* 241537603 Harness-wiring 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625 240355207 Shelf-"Spill-Safe", cantilever, half width, fixed 240350108...
  • Page 10 Publication No: 5995495719 FRS6LF7GS2 CONTROLS N58TCAAAB4 07/07...
  • Page 11 FRS6LF7GS2 Publication No: 5995495719 CONTROLS POS. NO PART NO. DESCRIPTION 5308000010 Fan Blade, red, evaporator fan 215474201 Washer, "slinger", nylon, evap fan shaft 241563601 Bushing-motor mtg, (2) 240369702 Motor-evap fan 241517701 Clip, evap fan motor 241555401 Light Bulb 16 # 241513901 Socket-light 241608801...
  • Page 12 Publication No: 5995495719 FRS6LF7GS2 SYSTEM N58CAAAAA10 07/07...
  • Page 13 FRS6LF7GS2 Publication No: 5995495719 SYSTEM POS. NO PART NO. DESCRIPTION 240333603 Condenser 218679607 Block-evap coil, styrofoam, (2) 218944001 Drier-filter, R134a System 241586801 Harness-wiring, machine compt 241651601 Harness-wiring 6* # 241737801 Harness-wiring, control box 14 # 240316107 Heater-defrost 15 # 5303918284 Evaporator Kit 5308000110 Strap-evap/heater, aluminum, (2)

  • Page 14: Ice And Water Dispenser

    Publication No: 5995495719 FRS6LF7GS2 ICE & WATER DISPENSER N58XBAAAB1 07/07...
  • Page 15 FRS6LF7GS2 Publication No: 5995495719 ICE & WATER DISPENSER POS. NO PART NO. DESCRIPTION 218976409 Tube, water, door 218976418 Tube-water inlet, inlet valve, to filter 218976419 Tube-water inlet, valve to door 218976915 Tube-water inlet, inlet valve, to filter 240561701 Seal-water inlet, inlet valve, to ice maker 241678703 Cover-module, black 241680507...

  • Page 16: Ice Container

    Publication No: 5995495719 FRS6LF7GS2 ICE CONTAINER 37A 34 34 33 N58YAAAAA4 07/07...
  • Page 17 FRS6LF7GS2 Publication No: 5995495719 ICE CONTAINER POS. NO PART NO. DESCRIPTION 241716101 Auger-ice 241685201 Cam-drive 241734001 Container-ice, bucket only 241685101 Drum-ice disp 241735301 Front-ice container 241624801 Bar-drive 241685301 Gate 241555401 Light Bulb 16 # 241559801 Socket-light 241684501 Drive Blade 18 # 241676202 Motor-auger, 115V 18*#...

  • Page 18: Ice Maker

    Publication No: 5995495719 FRS6LF7GS2 ICE MAKER 07/07...
  • Page 19 FRS6LF7GS2 Publication No: 5995495719 ICE MAKER POS. NO PART NO. DESCRIPTION 218976409 Tube, water, door 218976418 Tube-water inlet, inlet valve, to filter 218976419 Tube-water inlet, valve to door 218976915 Tube-water inlet, inlet valve, to filter 240561701 Seal-water inlet, inlet valve, to ice maker 5304456650 Spring-shutoff arm, ICE MAKER 5304456657...
  • Page 20 Publication No: 5995495719 FRS6LF7GS2 ICE MAKER 07/07...
  • Page 21 FRS6LF7GS2 Publication No: 5995495719 ICE MAKER POS. NO PART NO. DESCRIPTION 5303207328 Screw, hex washer head, 8-15A x 1.000, (2) 5304456686 Bracket-leveling, ICE MAKER 5304456687 Screw-IM brkt mtg, special, 8-32D x 0.375 5303001549 Clamp, 0.31 ID, steel, copper wtr line 241806601 Connector-water, straight 5304456666...

  • Page 22: Wiring Schematic

    Publication No: 5995495719 FRS6LF7GS2 WIRING SCHEMATIC AIR FILTER B E T A C O N T R O L FF THERMISTOR FRZ THERMISTOR 07/07...

  • Page 23: Wiring Diagram

    FRS6LF7GS2 Publication No: 5995495719 WIRING DIAGRAM WHITE WHITE GRAY GRAY 07/07 # Functional Parts * Non-Illustrated Parts...
