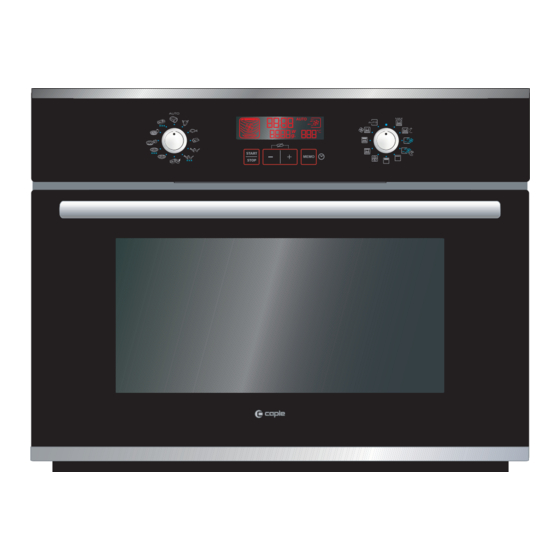

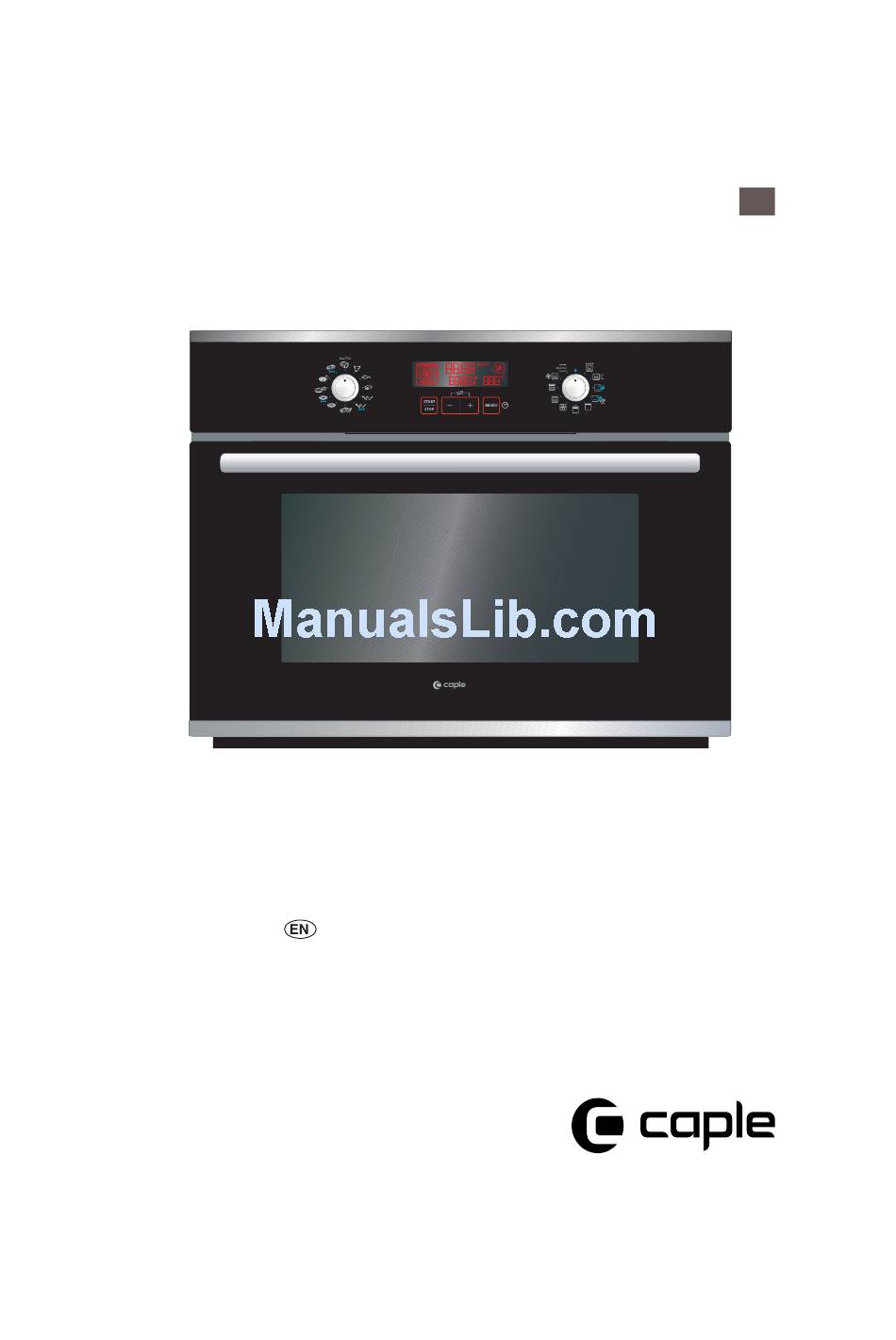

- Page 1 CM 107 Operating instructions Compact Oven...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1/NOTICES TO THE USER • Safety recommendations ......... . •... -
Page 3: Safety Recommendations
1/NOTICES TO THE USER Important staples or fasteners for frozen foods is not recommended. Keep this user guide with your appliance. If the appliance is ever sold or The contents of baby bottles and baby food transferred to another person, ensure that jars should be shaken or stirred and their the new owner receives the user guide. -
Page 4: Operating Principle
1/NOTICES TO THE USER •OPERATING PRINCIPLE •PROTECTING THE ENVIRONMENT The microwaves used for cooking are electro- This appliance’s packing materials are magnetic waves. They are commonly found in recyclable. Recycle them and play a role in our environment in the form of radio-electric protecting the environment by disposing of waves, light or infrared rays. -
Page 5: Before Hook-Up
2/INSTALLING YOUR APPLIANCE •BEFORE HOOK-UP In the case of connections with an electric receptacle, it must remain accessible after installation of the appliance. Warning: The oven’s neutral conductor (blue wire) Ensure that your appliance has not must be connected to the network’s neutral suffered any damage during transport conductor. -
Page 6: Building In
2/INSTALLING YOUR APPLIANCE •BUILDING IN The oven can be installed under a worktop or in a column of cabinetry (open* or closed) having the appropriate dimensions for built-in installation (Fig.02). Do not use your appliance immediately (wait approximately 1 to 2 hours) after having moved it from a cold location to a hot location because the condensation may cause a malfunction. -
Page 7: 3/Description Of Your Appliance
3/DESCRIPTION OF YOUR APPLIANCE •THE APPLIANCE Fig.03 Control panel Cavity Turntable Door handle • Turntable: Enables even cooking of foods with no handling. It rotates indiscriminately in both directions. If it is not rotating, ensure that all the components are properly positioned. Do not attempt to rotate it manually;... -
Page 8: Accessories
3/DESCRIPTION OF YOUR APPLIANCE •ACCESSORIES • Grid (Fig.05): Allows you to toast, brown or grill. The grid should not under any circumstances be used with other metal cookware on the microwave, grill + microwave or fan heat + microwave settings. Fig.05 However, you can reheat food in an aluminium tray if you insulate it from the grid using a plate. -
Page 9: Control Panel
3/DESCRIPTION OF YOUR APPLIANCE •CONTROL PANEL Fig.09 The automatic programme selector allows you to choose the automatic function and the category of food. The START/STOP touch control allows you to start a programme, and suspend or stop a programme underway. The “... -
Page 10: Selectors
3/DESCRIPTION OF YOUR APPLIANCE •SELECTORS Fig.10 Fig.11 AUTOMATIC PROGRAMME SELECTOR FUNCTION SELECTOR PORK, VEAL, TURKEY 1000 W MICROWAVE BEEF MICROWAVE FISH SPEED DEFROST POULTRY SPEED DEFROST PASTRY/BREAD VEGETABLES LOW GRILL FROZEN VEGETABLES HIGH GRILL FRESH PREPARED MEAL FAN HEAT PIZZA MICROWAVE + LOW GRILL FROZEN PIZZA MICROWAVE + HIGH GRILL... -
Page 11: Display
3/DESCRIPTION OF YOUR APPLIANCE •DISPLAY Fig.12 The display guides you through programming the various settings : Time, Programme length, Microwave power level (Watts), Food weight (grams), Stop turntable, Automatic programmes COOKING ANIMATION depending on the selected function MICROWAVE AUTOMATIC PROGRAMMES GRILL SPEED DEFROST FAN HEAT... -
Page 12: Setting And Adjusting The Time
4/USING YOUR APPLIANCE •SETTING AND ADJUSTING THE TIME After hooking up your appliance or after an extended power outage, “1 2 : 0 0 ” will flash in the display. To set the time on the clock Display Press the +/- touch controls to set the time, e.g 6:30. 1 2 : 0 0 Confirm by pressing the MEMO touch control. -
Page 13: Programming
4/USING YOUR APPLIANCE •PROGRAMMING Your appliance is now hooked up and the correct time is set. Open the door using the handle. Place the food in the appliance, then close the door. If the door is not closed properly, the appliance will not function. Opening the door during operation does not cancel the current programme;... -
Page 14: Microwave Function
4/USING YOUR APPLIANCE •MICROWAVE FUNCTION 1000W Direct programming Display Turn the function selector to choose the maximum power microwave function. The microwave display lights up; 1000 W appears in the display. 1 0 0 0 The clock’s digits start flashing in the display. Press the +/- touch controls to adjust the programme 0 0 : 0 0 time, e.g. -
Page 15: Reheating On Two Levels
4/USING YOUR APPLIANCE •REHEATING ON TWO LEVELS When using the 500W microwave power level function, you can reheat two dishes at the same time. Place one plate on the turntable and the other on the grid inserted level 3 Recommendations Cover the plates with plastic food wrap for microwave use or with another inverted plate. -
Page 16: Guide To Automatic Functions
4/USING YOUR APPLIANCE •GUIDE TO AUTOMATIC FUNCTIONS Pork This function allows you to cook and brown roasts that weigh 500 g - 2000 g. Veal Cooking is carried out through a combination of the microwave + fan heating and microwave functions. Turkey Use a dish suitable for microwave ovens that is heat-resistant, preferably in terra cotta (less splattering than in a glass dish). - Page 17 4/USING YOUR APPLIANCE •GUIDE TO AUTOMATIC FUNCTIONS Vegetables This function allows you to cook vegetables that weight 100 g to 1000 g. Fresh Vegetables are cooked with the microwave function. Choose fresh vegetables and before cooking add: - up to 200 g: 2 tablespoons water - up to 500 g: 0.5 dl water Frozen - up to 1000 g: 1 dl water...
-
Page 18: Defrosting
4/USING YOUR APPLIANCE •DEFROSTING Using your microwave oven to defrost frozen vegetables enables you to save a lot of time. To defrost food, use the SPEED DEFROST function or the MICROWAVE function set to power level 200 W (defrost). Note: Small cuts of meat and fish can be cooked immediately after defrosting. -
Page 19: Speed Defrost Function
4/USING YOUR APPLIANCE •SPEED DEFROST FUNCTION Choose the type and quantity of food that you wish to defrost and the automatic function will programme the appropriate defrosting time. Speed defrost Display Turn the function selector to choose the “Speed Defrost” function. -
Page 20: Defrosting Guide
4/USING YOUR APPLIANCE •DEFROSTING GUIDE Defrosting pastry Food Quantity Time Recommendations Flaky or shortcrust Place on kitchen paper and turn 400 g 1 - 3 min pastry halfway through defrosting Defrosting shellfish Food Quantity Time Recommendations Scallops 500 g 5 - 7 min Place on a plate, mix halfway Peeled prawns 100 g... -
Page 21: Grill Function
4/USING YOUR APPLIANCE •GRILL FUNCTION This function enables you to cook and brown foods such as au gratin dishes and meats. It can be used before or after cooking, depending on the recipe. Please note The accessible areas of the oven can become hot when the grill is used. It is advisable to keep small children under supervision. -
Page 22: Microwave + Grill Function
4/USING YOUR APPLIANCE •MICROWAVE + GRILL FUNCTION This function lets you simultaneously use the grill and the microwave, which enables quick cooking. You can use any of the grid levels with any microwave power level settings up to 700 W. Programming the GRILL + MICROWAVE FUNCTION Display Turn the selector to choose the LOW GRILL or HIGH... -
Page 23: Fan Heat Function
4/USING YOUR APPLIANCE •FAN HEAT FUNCTION The fan heat function allows you to cook and brown foods like in a traditional oven. Programming the FAN HEAT function Display Turn the selector to choose the FAN HEAT function. The corresponding display lights up; the temperature (200°C) flashes in the display. -
Page 24: Fan Heat Cooking Guide
4/USING YOUR APPLIANCE •FAN HEAT COOKING GUIDE Preheat the oven to the temperature indicated. Food Temperature Grid level Duration Meat Pork roast (1 kg) 160°C On the grid at level 2 90 min Veal roast (1 kg) 180°C On the grid at level 2 70 - 75 min Roast beef (1 kg) 220°C... -
Page 25: Fan Heat + Microwave Function
4/USING YOUR APPLIANCE •FAN HEAT + MICROWAVE FUNCTION The fan heat + microwave cooking mode combines microwave cooking with fan heat cooking, which allows you to save considerable time. The following microwave power levels are available : 100-200-300-400-500 W. The cooking temperature can be adjusted in increments of 10°C, from 50°C to 250°C. The cooking time can be set between 0 and 60 minutes. -
Page 26: Microwave + Fan Heat Cooking Guide
4/USING YOUR APPLIANCE •MICROWAVE + FAN HEAT COOKING GUIDE Use a dish suitable for microwave ovens that is heat-resistant, preferably in terra cotta (less splattering than in a glass dish). When possible, cook roasts without fatty exterior layers to avoid smoke and grease splattering. After cooking, season the roast, wrap it in aluminium paper and let it sit for 10 minutes. -
Page 27: Child Safety
4/USING YOUR APPLIANCE •CHILD SAFETY You can activate the “CHILD SAFETY” function to prevent the unauthorised use of your microwave oven. Programming Display Open the door and press the START/STOP touch control for five seconds, until the key symbol appears in the display. Two beeps are sounded to confirm that your microwave oven is temporarily locked. -
Page 28: 6/Troubleshooting
6/TROUBLESHOOTING If you have doubts about the proper functioning of your appliance, this does not necessarily mean that there is a breakdown. In any event, check the following items: You observe that ... What should you do? The time counts down, but the appliance is not Your appliance is in DEMONSTRATION working (the turntable is not rotating and food mode. -
Page 29: 7/Functional Aptitude Tests
7/FUNCTIONAL APTITUDE TESTS Functional aptitude tests in accordance with CEI/EN/NF EN 60705 norms 60705. The International Electrotechnical Commission, SC.59K, has established a standard for comparative performance tests conducted on various microwave ovens. We recommend the following for this appliance: Approx. Power Test Load...
