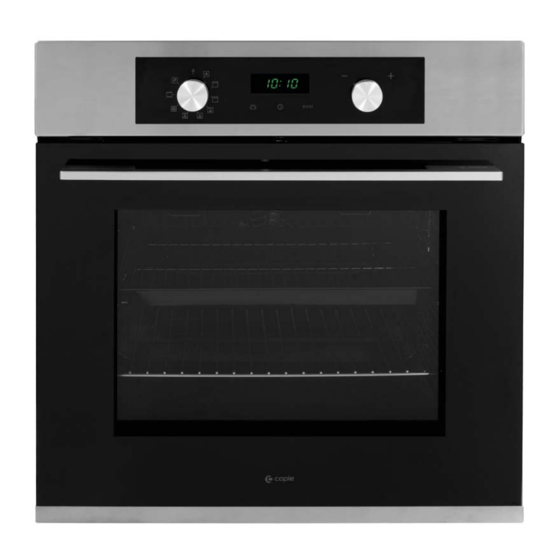

Caple C2239 Instruction Manual
Classic single pyrolytic oven
Hide thumbs
Also See for C2239:
- Instruction manual (32 pages) ,
- Instruction manual (17 pages) ,
- Instruction manual (32 pages)
Related Manuals for Caple C2239
Summary of Contents for Caple C2239
- Page 1 Classic single Pyrolytic oven Instruction manual C2239 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
Touch control electronic timer Pyrolytic cleaning Telescopic runners Side racks Care and maintenance Replacing the oven lamps Troubleshooting Removing the oven door Removing the glass panels Technical fiche Caple contact details Please keep this instruction manual for future reference Instruction manual C2239... -
Page 3: Safety Warnings
- Cleaning and user maintenance should not be carried out by children without supervision. - The appliance is not intended to be operated by means of an external timer or separate remote control system. Please keep this instruction manual for future reference Instruction manual C2239... - Page 4 - Do not use steam cleaners for cleaning the appliance. - Ensure the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Please keep this instruction manual for future reference Instruction manual C2239...
- Page 5 - Maintenance and repair work must be made only by authorised Caple service technicians. Installation and repair work that is carried out by unauthorised technicians may endanger you. - It is dangerous to alter or modify the specifications of the appliance in any way.
- Page 6 - Ensure that the supply cord is not wedged or trapped during the installation. If the supply cord is damaged, it must be replaced by a Caple service technician or similarly qualified persons in order to prevent a hazard. - While the oven door is open, do not let children climb on the door or sit on it.
-
Page 7: Installation Warnings
- Do not operate the appliance before it is fully installed. - The appliance must be installed by an authorised technician. - Caple is not responsible for any damage that may be caused by defective placement and installation by unauthorised persons. - Page 8 - If you know you will not be using the appliance for a while switch it off from the mains supply. - The oven shelves and trays incline when pulled out. Be careful not to let hot liquid spill over. Please keep this instruction manual for future reference Instruction manual C2239...
- Page 9 - To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call only our authorised Caple Service agents in case of need. Please keep this instruction manual for future reference...
-
Page 10: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. - Page 11 This appliance has been designed, constructed and marketed in compliance with safety requirements in force. This appliance has been manufactured to the strictest standards and complies with all applicable legislation. Please keep this instruction manual for future reference Instruction manual C2239...
-
Page 12: Installation
D I M E N S I O N S D I M E N S I O N S Fig. 1 70mm Fig. 2 70mm 589mm 589mm 595mm 589mm 575mm 595mm 589mm 575mm 23mm 23mm 23mm 23mm Please keep this instruction manual for future reference Instruction manual C2239... -
Page 13: Oven Dimensions
All parts which offer protection should be fixed in such a way that they cannot be removed without the use of a tool. OVEN DIMENSIONS 551mm 22mm 22mm 540mm 595mm 569mm Please keep this instruction manual for future reference Instruction manual C2239... -
Page 14: Electrical Connection
The ovens are designed to operate with a mono-phase alternating current of 220-240V, 50Hz. Before the installation of the appliance, check the specifications on the rating label. Please keep this instruction manual for future reference Instruction manual C2239... -
Page 15: Using Your Oven
Please keep this instruction manual for future reference Instruction manual C3371 Instruction manual C3371 unbetween two functions. Instruction manual C2239 C3371 - Instruction Manual.indd 16 C3371 - Instruction Manual.indd 16 07/12/2017 10:13 07/12/2017 10:13 C3371 - Instruction Manual.indd 16... - Page 16 Please keep this instruction manual for future reference Please keep this instruction manual for future reference 2. Temperature control knob (+/-) Please C3371 - Instruction Manual.indd 17 07/12/2017 10:13 Instruction manual C3371 3. Light Instruction manual C2239 4. Timer BOOST...
-
Page 17: Cooking Guidelines
Sausages (6 pcs) unbetween two functions. unbetween two functions. Toast (6 pcs) Please keep this instruction manual for future reference Instruction manual C2239... - Page 18 - The times given in the roasting guide are only approximate because the size and age of the bird will influence cooking times, as will the shape of a joint and the proportion of bone. Please keep this instruction manual for future reference Instruction manual C2239...
- Page 19 - For joints cooked in foil and for lidded casseroles, add 5 minutes per 450g (1lb) to the calculated cooking time. - Smaller joints weighing less than 1.25kg (2lb) may require 5 minutes per 450g (1lb) extra cooking time. Please keep this instruction manual for future reference Instruction manual C2239...
-
Page 20: Touch Control Electronic Timer
To set when the oven is to switch off again. Time To set, change or check the time. Please keep this instruction manual for future reference Please keep this instruction manual for future reference Instruction manual C2239 Instruction manual C3371... - Page 21 Press the Boost button once a function and temperature have been tivate the rapid preheat boost function. When the oven selecting this function. 6. Display screen Instruction manual C2239 selected to activate the rapid preheat boost function. When the oven et temperature, the boost function will automatically PYROLYTIC CLEANING...
- Page 22 When the Pyrolytic cleaning function is selected, the door will lock, The Boost function is only availabe with the following 3 selecting this function. Instruction manual C2239 WARNING: When selecting a function, ensure the function control Ensure all the shelves, trays and side racks are removed before...
-
Page 23: Pyrolytic Cleaning
End of c End of c Please keep this instruction manual for future reference Instruction manual C2239... -
Page 24: Telescopic Runners
Caple website to view a 'How to video' on this. www.caple.co.uk Visit our Caple website to view a ‘How to video’ on this. www.caple.co.uk C2234 / C2234BK / C2237 / C2239 Fig.2... -
Page 25: Care And Maintenance
Check the condition of this seal on a regular basis. If necessary, clean it and avoid using abrasive products or objects to do so. Should it become damaged, please contact Caple service. We recommend you avoid using the oven until it has been repaired. -
Page 26: Replacing The Oven Lamps
- Remount the glass cover and reconnect the appliance to the power supply. WARNING: Ensure the appliance is unplugged before replacing the lamp to avoid the possibility of an electric shock. Please keep this instruction manual for future reference Instruction manual C2239... -
Page 27: Troubleshooting
The outside is too dry even Too low temperature Increase the temperature and reduce though it is the right colour the cooking time. Please keep this instruction manual for future reference Instruction manual C2239... -
Page 28: Removing The Oven Door
Please keep this instruction manual for future reference tton on left and right side of door, take out top rail. (Fig.1) ton on left and right side of door, take out top rail. (Fig.1) Instruction manual C2239 ner glass slowly (Fig.2) er glass slowly (Fig.2) -
Page 29: Removing The Glass Panels
Make sure the glass lies flat to avoid breakage of glass during table. Make sure the glass lies flat to avoid breakage of glass during cleaning. cleaning. ____ ··.� Please keep this instruction manual for future reference Instruction manual C2239... -
Page 30: Technical Fiche
Technical Fiche Caple Model C2239 Type of Oven Electric Mass 34.6Kg Energy Efficiency Index‐Conventional 103.4 Energy Efficiency Index‐Fan forced 95.0 Energy Class Energy Consumption (electricity)‐conventional 0.86 Energy consumption (electricity)‐fan forced 0.79 Number of cavities Heat Source Electric Volume This Oven complies with EN 60350‐1:2016 Please keep this instruction manual for future reference Instruction manual C2239... - Page 31 NOTES Please keep this instruction manual for future reference Instruction manual C2239...
-
Page 32: Caple Contact Details
Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference Instruction manual C2239...
