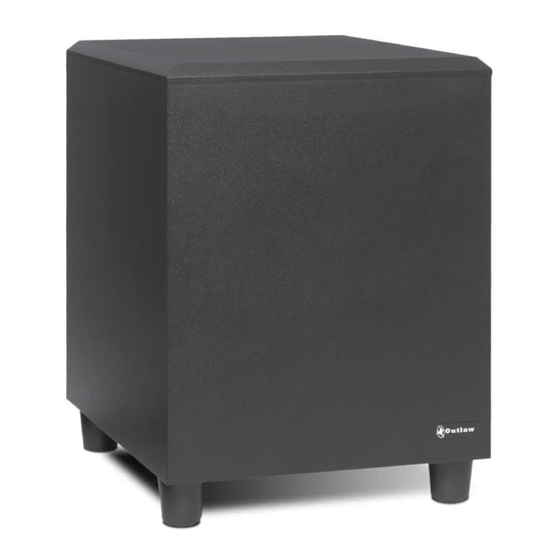

Powered Subwoofer
Model M8
Owner's Manual
Version 1. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outlaw M8

Summary of Contents for Outlaw M8

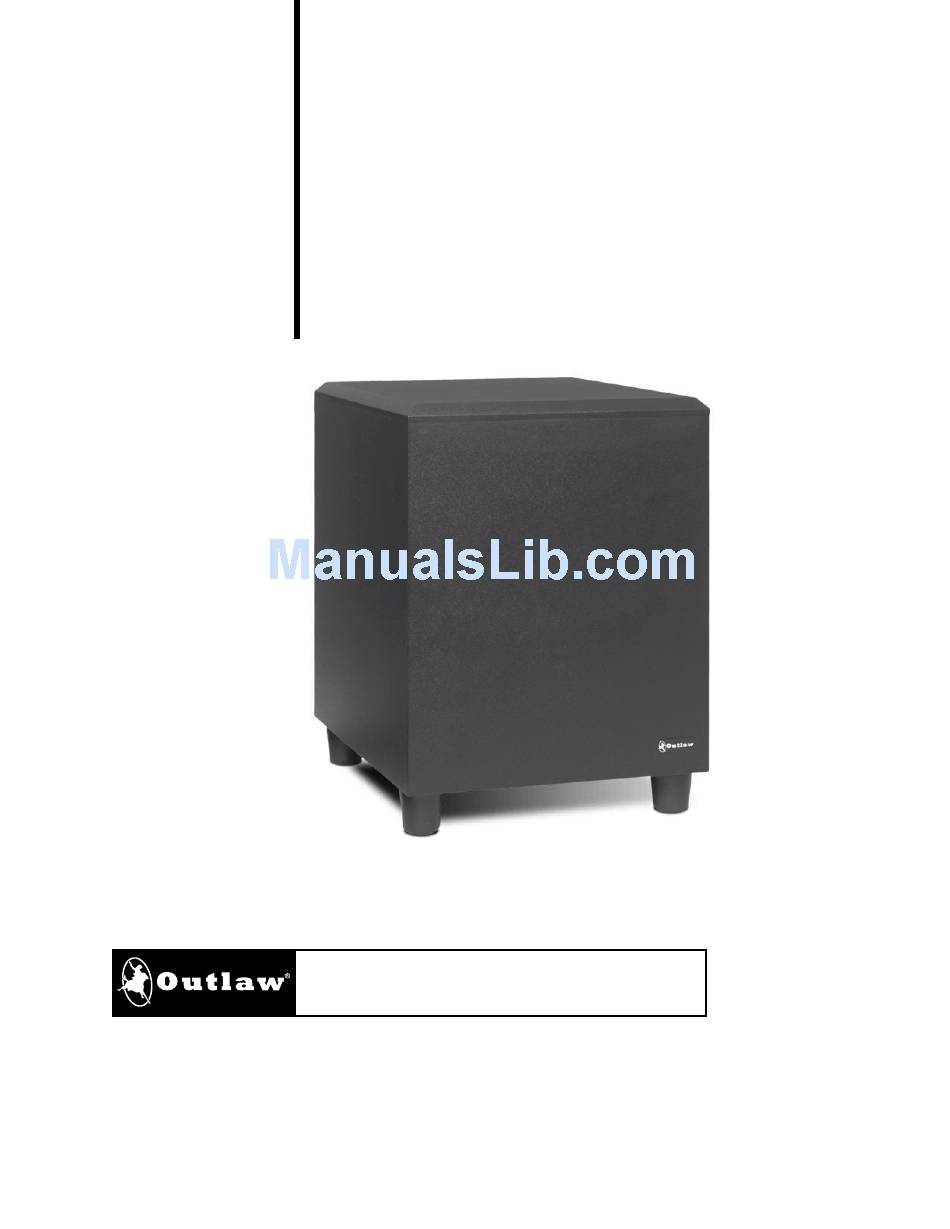

  • Page 1 Powered Subwoofer Model M8 Owner’s Manual Version 1. 1...

  • Page 2: Please Read First

    AC power source. Many modern electronics products feature automatic The high power output of your Outlaw M8 may require heavy power draw under full load turn-on circuits that may be activated during an installation, causing the potential for conditions.

  • Page 3: Table Of Contents

    ■ ■ may adversely affect the sound quality and introduce unwanted hum into The contents of this manual are Copyright © 2013 by Outlaw Audio, LLC, and may not be your system. duplicated or reproduced by any means, whether physical, electronic or otherwise without prior written consent from Outlaw Audio.

  • Page 4: Subwoofers, Bass And Overall System Performance

    By limiting their frequency range, these speakers may be made smaller, to more designed subwoofer such as the Outlaw M8 can provide a visceral impact that most easily fit into a wide range of spaces. However, by eliminating the capability to speakers are not able to provide on their own.

  • Page 5: M8'S Controls And Connections

    This knob controls the output level of the M8. We recommend the Outlaw Audio PCA SUB cable, but any high quality, shielded audio interconnect will work properly. D HIGH LEVEL INPUTS...

  • Page 6: Connecting To A System Without A Subwoofer Preamp Output, But With Standard Left/Right Preamp Outputs

    If no low level subwoofer or standard left/right output is available, you will need to run speaker wires from your main amplifier or receiver to the subwoofer amplifier. the procedure to the spot that is the best compromise between bass performance See Diagram 3 on the next page. and aesthetic considerations. Outlaw Audio...
  • Page 7 Owner’s Manual Wiring Diagrams Diagram 2: Connecting to a System without a Subwoofer Preamp Output, but with Standard Left/Right Preamp Outputs ® SUBWOOFER PHASE SUBWOOFER CROSSOVER ACTIVE 180° 0° LEVEL FREQUENCY INPUT INPUT INPUT INPUT INPUT REMOTE TRIGGER (POWER ON/OFF) RIGHT 12V DC AUTO...

  • Page 8: Notes On Subwoofer Placement

    By adjusting the variable crossover on the M8, you can perfectly match it to your If near perfect bass response is your goal, consider using two M8’s: the Outlaw main speakers. If your receiver or processor already has a built in crossover, disable Audio Scattered Subwoofer System.

  • Page 9: Care And Maintenance

    866-688-5292. The Outlaw Audio It is important that only a service agent authorized by Outlaw Audio carry out any 30-Day Satisfaction Guarantee repairs. Keep your sales slip or receipt in a safe place with this manual so that it...

  • Page 10: M8 Powered Subwoofer Specifications

    40 Hz — 220 Hz Phase 0° or 180° Frequency Response 29 — 250 Hz (±3 dB) Inputs Gold plated line-level and speaker-level Dimensions (H/W/D) 14.5 in. (inc. feet) x 10.875 in. x 14.125 in. Shipping Weight 28 lbs. Outlaw Audio...

  • Page 11: Outlaw Audio Limited Warranty

    Outlaw Audio LLC Limited Warranty This warranty protects the owner of the Outlaw Audio LLC (hereby referred In the event that you wish to return your Outlaw M8 back to us, for any reason, please call to arrange for a Return Authorization Number. This to as Outlaw Audio) M8 Powered Subwoofer (the PRODUCT) for three (3) years from the date of purchase.
